996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 190101 - 199999) Floor And Fenders Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

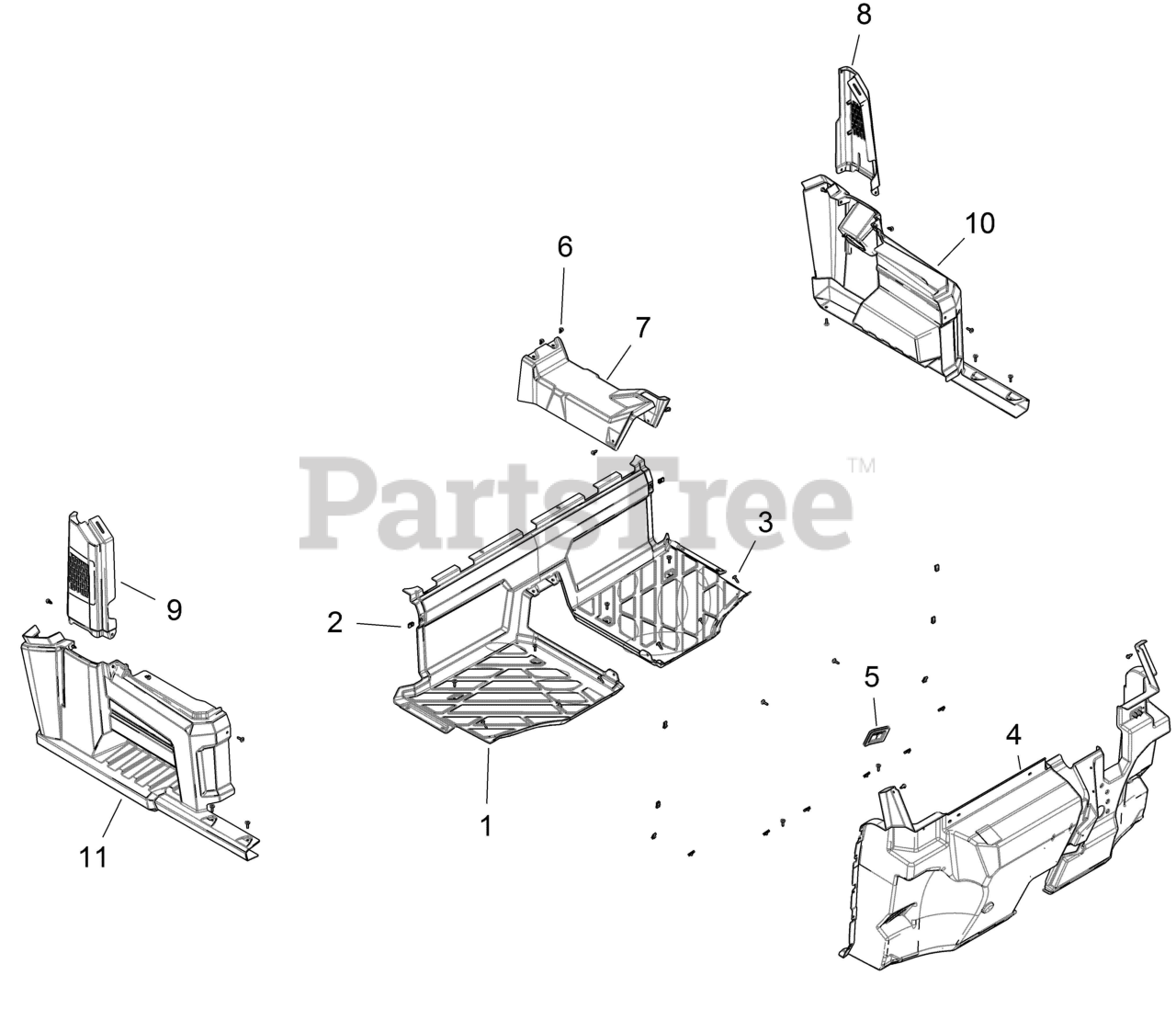

Floor And Fenders Parts Diagram

  • Title
1

Gravely 21900558

FLOOR-BLK

$

$

Not available

2

Gravely 21900344

CLIP-U SPEED NUT

$

$

Not available

3

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

4

Gravely 21900557

FLOOR-FRONT,BLK

$

$

Not available

5

Gravely 21900269

GROMMET-STEERING,FLOOR

$

$

Not available

6

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

7

Gravely 21900560

COVER-DRIVE SHAFT,FLOOR,BLK

$

$

Not available

8

Gravely 21900822

ASM-FENDER-REAR,UPPER,LH,BLK

$

$

Not available

9

Gravely 21900841

ASM-FENDER-REAR,UPPER,RH,BLK

$

$

Not available

10

Gravely 21900905

FENDER-REAR,W/ROCKER,LH,ARIENS

$

$

Not available

11

Gravely 21900906

FENDER-REAR,W/ROCKER,RH,ARIENS

$

$

Not available
