996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 190101 - 199999) Crankcase Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

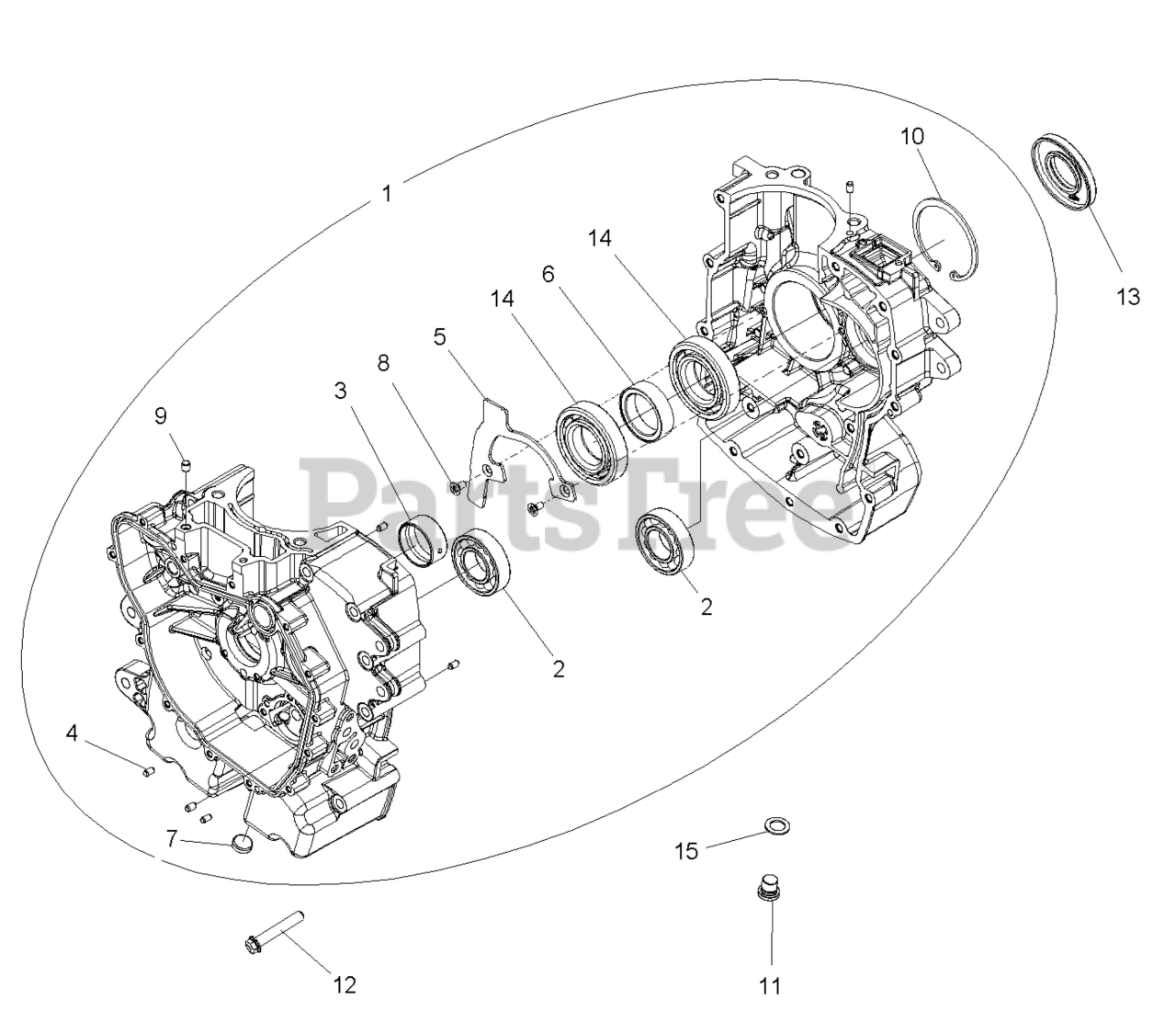

Crankcase Parts Diagram

  • Title
1

Gravely 21901838

KIT, CRANKCASE

$

$

Not available

2

Gravely 21900125

BEARING-BALL,30X62X16

$

$

Not available

3

BEARING, MAIN

$

$

Not available

4

Gravely 21900157

PIN-DOWEL,M6X10

$

$

Not available

5

Gravely 21901865

PLATE-BEARING RETAINER

$

$

Not available

6

Gravely 21901955

SPACER, BEARING

$

$

Currently unavailable

7

Gravely 21900314

PLUG,EXPANSION,19MM

$

$

Not available

$

$

Not available

9

Gravely 21900505

DWL-HOL,M8X10

$

$

Not available

10

Gravely 21900516

RING-SNAP,80X2.5

$

$

Not available

11

Gravely 21900317

PLUG-SOCKET,M12X1.5 DIN 908A

$

$

Not available

12

Gravely 21900871

SCR-M8X1.25X90

$

$

Not available

13

Gravely 21900133

SEAL-CRANKSHAFT

$

$

Not available

14

Gravely 21900124

BEARING-BALL 40X80X18 DG NCAGE

$

$

Not available

15

Gravely 21900294

WASHER-19X12X1.3-COPPER (10)

$

$

Not available
