996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 180101 - 189999) Rear Wheels Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

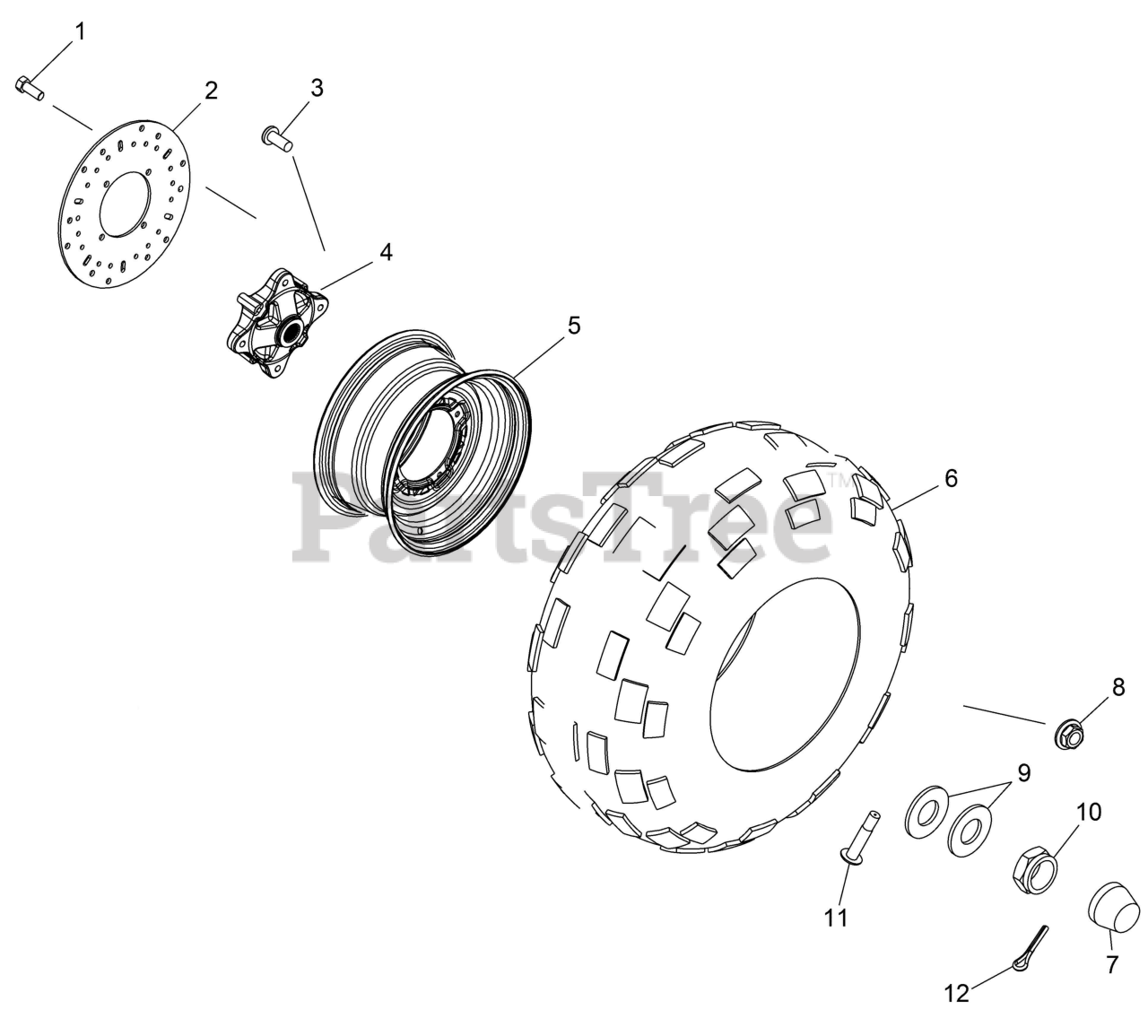

Rear Wheels Parts Diagram

  • Title
1

Gravely 21900443

SCR-M10X1.5X20,8.8 ZY3

$

$

Not available

2

Gravely 21900185

DISC-BRAKE,REAR,8.625X.188

$

$

Not available

3

Gravely 21900448

STUD-WHEEL,M12-1.5

$

$

Not available

4

Gravely 21900547

HUB-WHEEL,REAR,MACH,BLK

$

$

Not available

5

Gravely 21901251

WELD-RIM,RR,12X8,6"OFST,M.BLK

$

$

Not available

6

Gravely 21901416

TIRE, REAR, 25X11-12

$

$

Not available

7

Gravely 21901315

CAP, DUST

$

$

Not available

8

Gravely 21900475

NUT-LUG,M12

$

$

Not available

9

Gravely 21900478

WASHER, CONE

$

$

Not available

10

Gravely 21900466

NUT-M18X1.5,CASTLE,ZINC/YELLOW

$

$

Not available

11

Gravely 21900047

VALVE, RIM

$

$

Not available

12

Gravely 21900500

PIN, COTTER

$

$

Not available
