996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 180101 - 189999) Primary Clutch Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

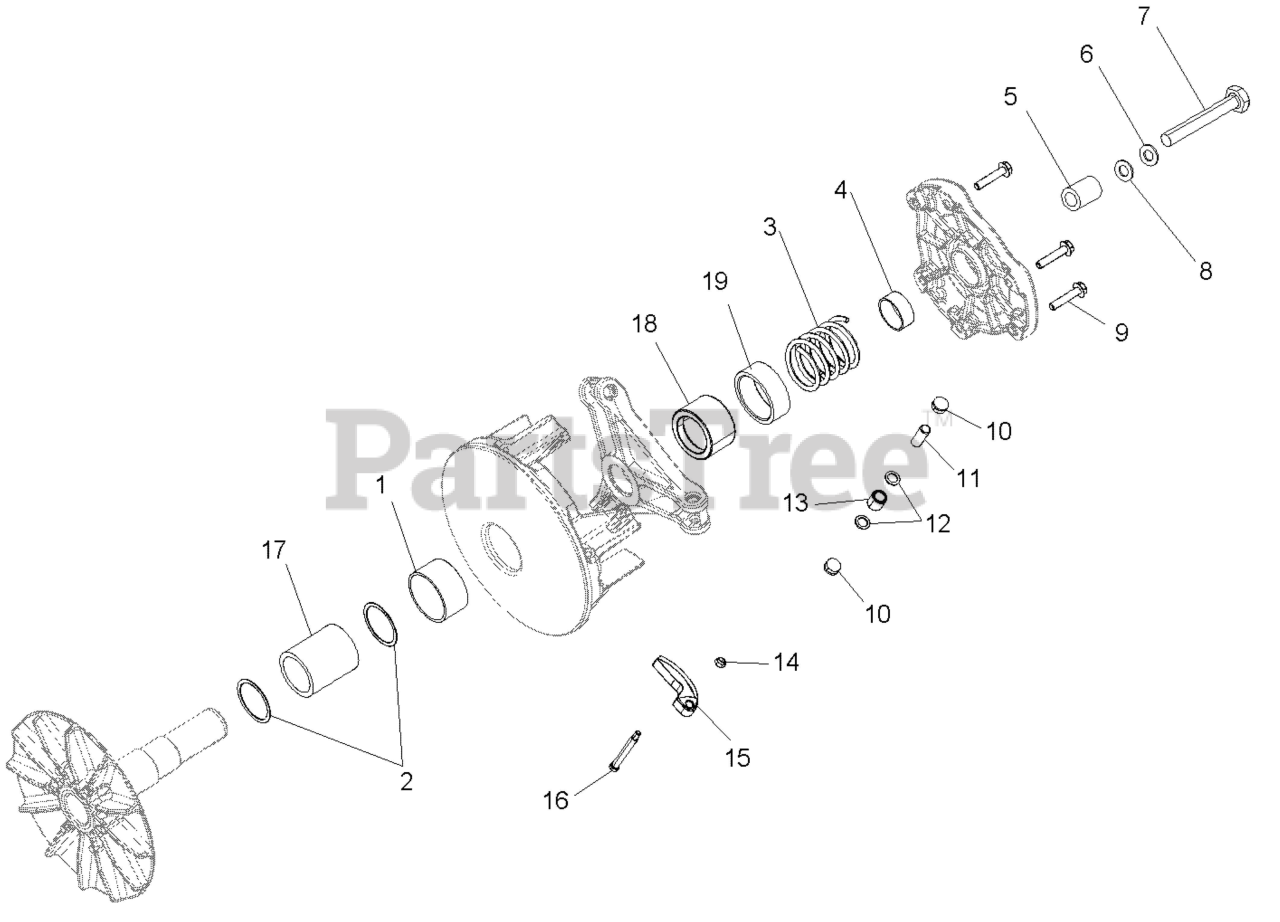

Primary Clutch Parts Diagram

  • Title

Gravely 21901738

ASM,CLUTCH,DRIVE,BASIC,BEARING

Note: [INCL. ALL LESS 3,5-8,15,19]

$

$

Not available

1

Gravely 21900126

BEARING-DU,1.75ID

$

$

Not available

2

Gravely 21900487

WASHER-CLUTCH,VESPEL

$

$

Not available

3

Gravely 21900310

SPRING-CLUTCH, 35-240

$

$

Not available

4

Gravely 21900128

BEARING COVER, .75IN

$

$

Not available

5

Gravely 21900249

BUSHING

$

$

Not available

6

Gravely 21900494

WASHER LOCK

$

$

Not available

7

Gravely 21900435

BOLT-CLUTCH ATV,7/16X20X8

$

$

Not available

8

Gravely 21900183

WASHER(10) *

$

$

Not available

9

Gravely 21900386

SCR-1/4-20X1.25 HX/FL GR5

$

$

Not available

10

Gravely 21900267

BUTTON,CLUTCH,RUBBER BACKED

$

$

Not available

11

Gravely 21900152

PIN-ROLLER,(10)

$

$

Not available

12

Gravely 21900255

WASHER-CLUTCH,SPIDER ROLLER

$

$

Not available

12

Gravely 21901362

WASHER

Note: [OPTIONAL]

$

$

Not available

13

Gravely 21900033

ROLLER/BUSHING ASM.(3) **

$

$

Not available

14

Gravely 21900456

NUT FLEXLOC(10)

$

$

Not available

15

Gravely 21900281

WEIGHT-SHIFT,25-52G,PM

$

$

Not available

16

Gravely 21900371

BOLT,SHOULDER(10)

$

$

Not available

17

Gravely 21900127

BEARING-NEEDLE

$

$

Not available

18

Gravely 21901471

SPACER-CLUTCH

$

$

Not available

19

Gravely 21900257

SPACER-CLUTCH,LIMITER

$

$

Not available
