996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 180101 - 189999) Main Gearcase Mounting Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

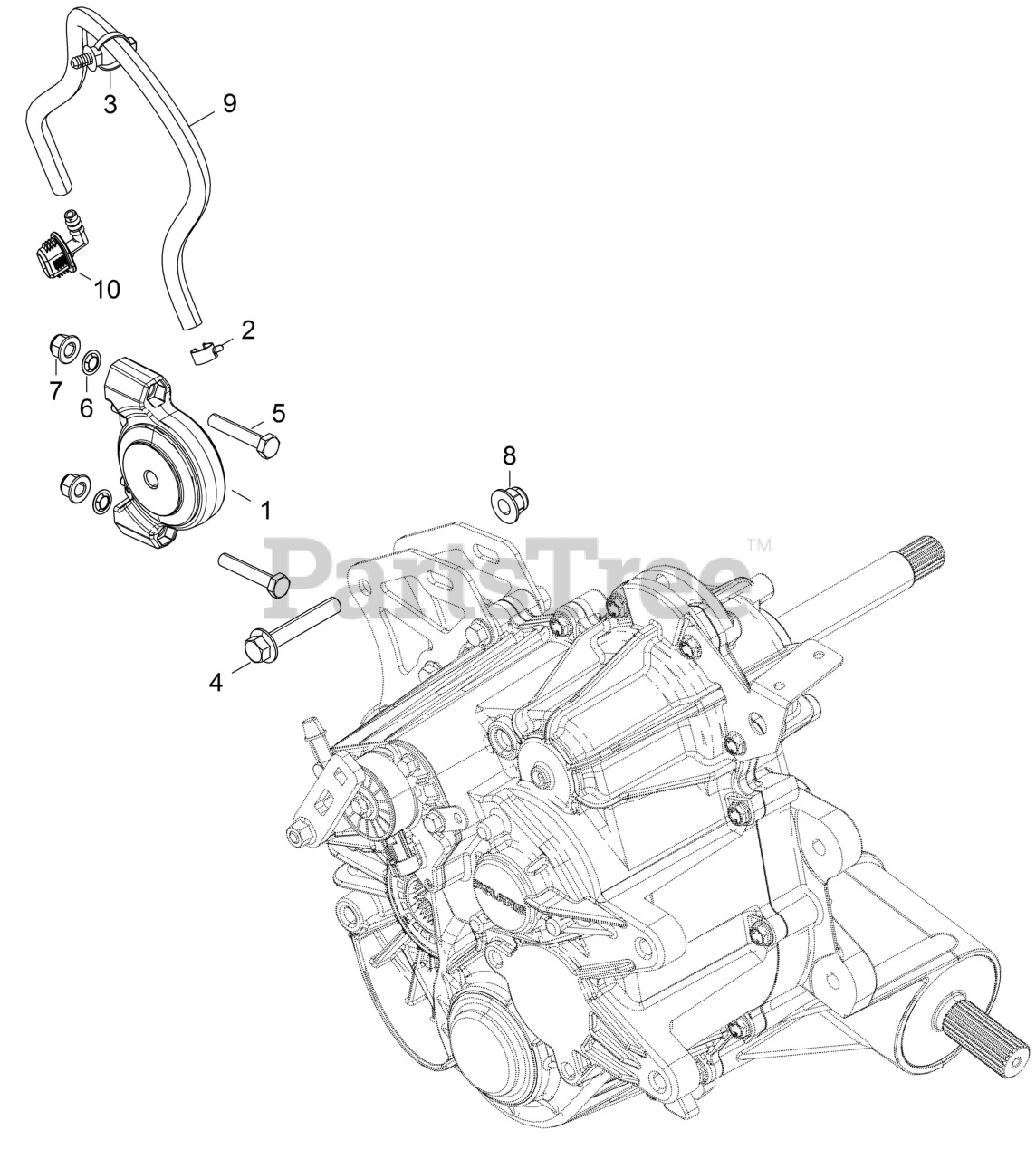

Main Gearcase Mounting Parts Diagram

  • Title
1

Gravely 21900038

MOUNT-ISOLATOR,DRIVELINE

$

$

Not available

2

Gravely 21900346

CLAMP-HOSE, 17/32, GREEN

$

$

Not available

3

Gravely 21900348

CLIP-ROUTING

$

$

Not available

4

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

5

Gravely 21900419

SCR-HH M8X1.25X45 8.8 ZOD

$

$

Not available

6

$

$

Not available

7

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

8

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

9

Gravely 21901986

LINE, FUEL 54 CM

$

$

Currently unavailable

10

Gravely 21901968

FITTING, VENT LINE, 90

$

$

Currently unavailable
