996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 180101 - 189999) Hood And Front Facia Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

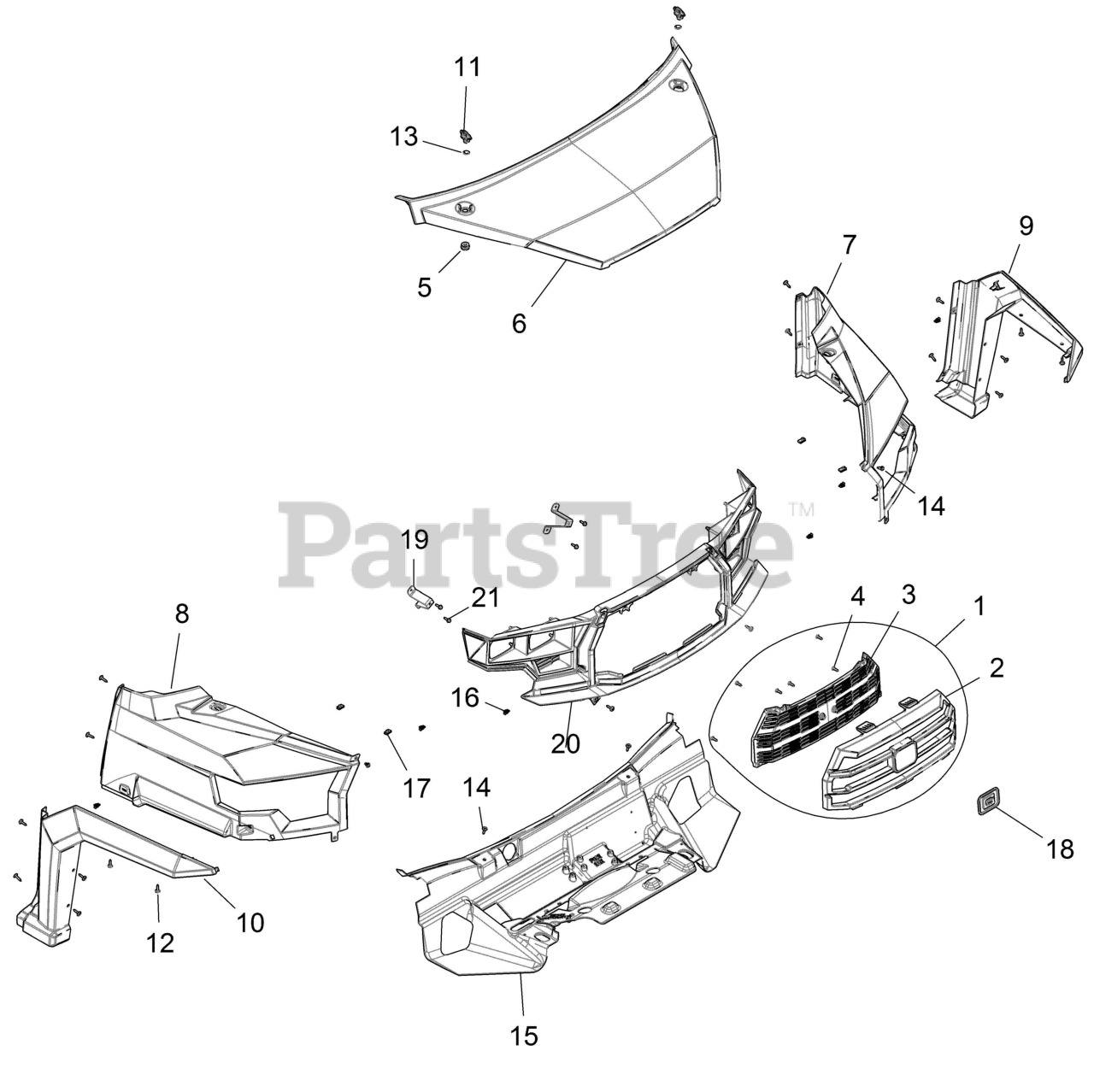

Hood And Front Facia Parts Diagram

  • Title

1

Gravely 21901292

ASM., GRILL, GRAVELY

Note: [INCL. 2-4]

$

$

Not available

2

Gravely 21901967

GRILL, FRONT, UPPER, BLACK

$

$

Currently unavailable

3

Gravely 21901326

GRILL, UPPER, TRIM

$

$

Not available

4

Gravely 21900644

SCR-TXPH-#14 X .75 HI-LO RIE

$

$

Not available

5

Gravely 21900225

GROMMET-LATCH

$

$

Not available

6

Gravely 21900907

HOOD-ARIENS,INDY RED

$

$

Not available

7

Gravely 21900908

FENDER-FRONT,LH,ARIENS,I RED

$

$

Not available

8

Gravely 21900909

FENDER-FRONT,RH,ARIENS,I RED

$

$

Not available

9

Gravely 21901965

FLARE, FENDER, FRONT LH

$

$

Currently unavailable

10

Gravely 21901966

FLARE, FENDER, FRONT RH

$

$

Currently unavailable

11

Gravely 21901383

LATCH, 1/4 TURN

$

$

Not available

12

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

13

Gravely 21900481

WASHER

$

$

Not available

14

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

15

Gravely 21900914

LINER-HOOD,BLK

$

$

Not available

16

Gravely 21901360

CLIP, DASH TRIM METAL

$

$

Not available

17

Gravely 21900344

CLIP-U SPEED NUT

$

$

Not available

18

Gravely 21901349

BADGE

$

$

Not available

19

Gravely 21901461

BRKT-FASCIA MOUNT

$

$

Not available

20

Gravely 21901445

BEZEL-HEADLIGHT

$

$

Not available

21

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available
