996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 180101 - 189999) Crankshaft, Piston And Balance Shaft Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

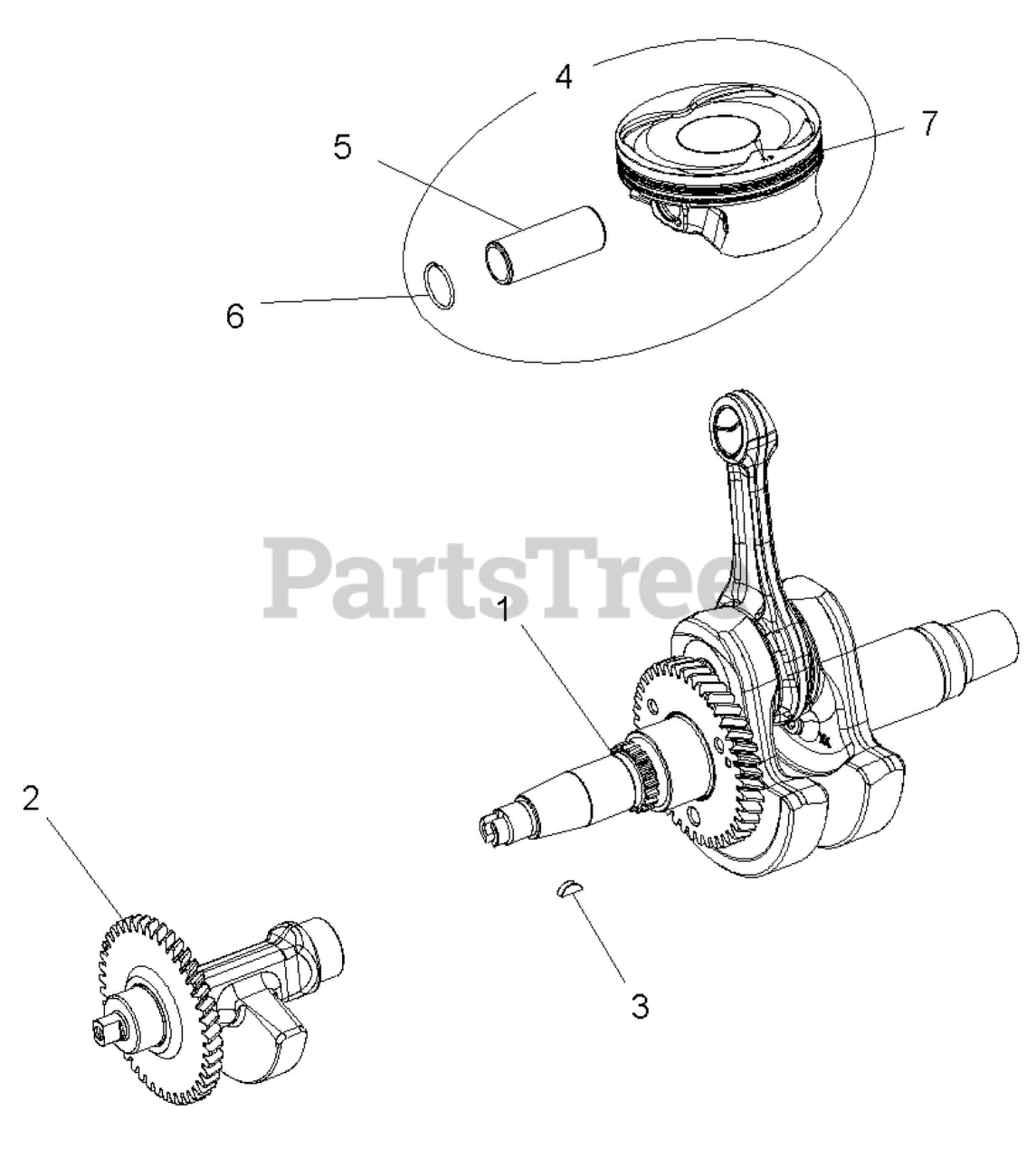

Crankshaft, Piston And Balance Shaft Parts Diagram

  • Title
1

Gravely 21901938

ASM, CRANKSHAFT

Note: [INCL. CRANKSHAFT, JET, OIL PUMP]

$

$

Currently unavailable

2

Gravely 21900021

ASM-BALANCE SHAFT

$

$

Not available

3

Gravely 21900519

KEY,WOODRUFF

$

$

Not available

4

Gravely 21900069

KIT-PISTON 99MM

Note: [INCL. PISTON, RING SET, 5, 6]

$

$

Not available

5

Gravely 21900893

PIN-PISTON,22X12.8X56.6MM

$

$

Not available

6

Gravely 21900678

C-CLIP,RND (2)

$

$

Not available

7

Gravely 21900759

KIT-RING,STD

Note: [INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING]

$

$

Not available
