996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 180101 - 189999) Cooling System Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

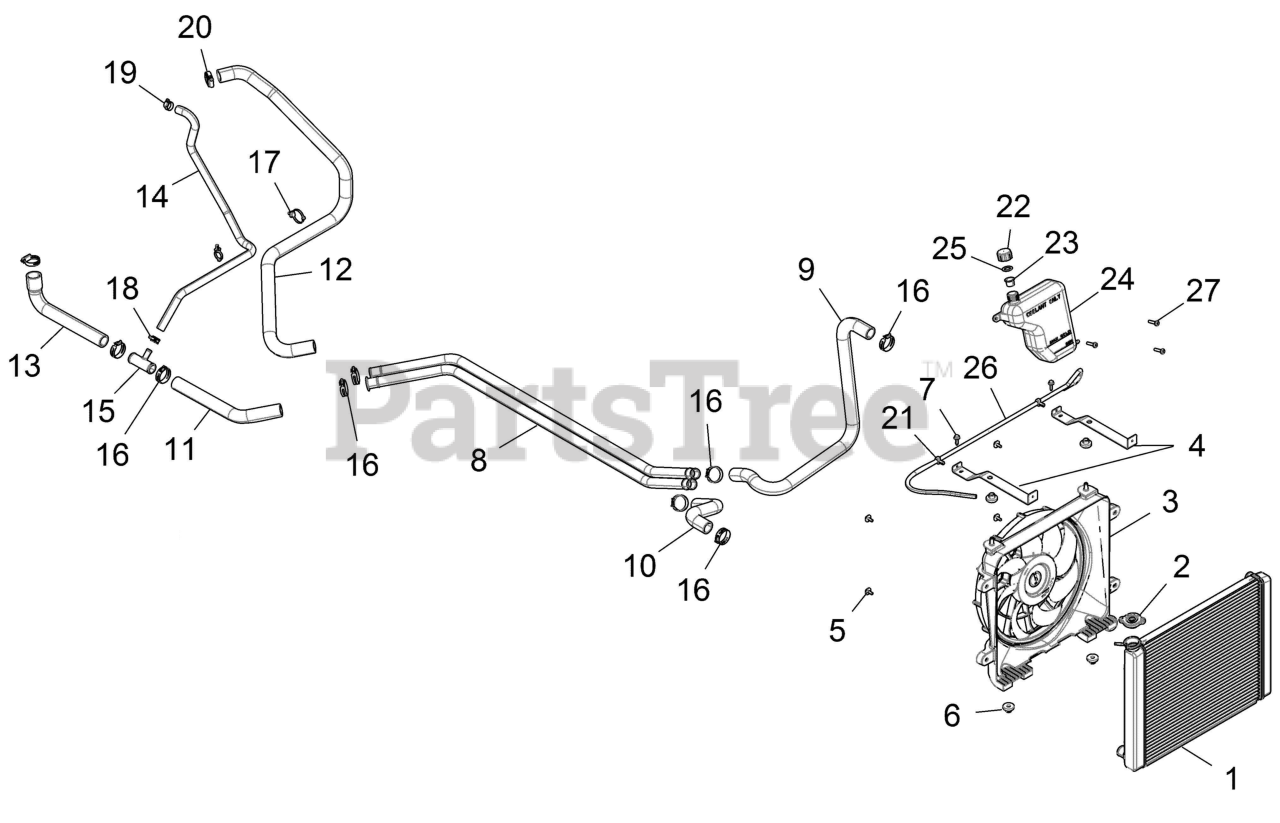

Cooling System Parts Diagram

  • Title

1

Gravely 21900029

ASM-RADIATOR,CORE

$

$

Not available

2

Gravely 21900030

CAP

$

$

Not available

3

Gravely 21900074

FAN-ASSEMBLY

$

$

Not available

4

Gravely 21901366

MOUNT, RADIATOR, BLACK

$

$

Not available

5

Gravely 21900446

BOLT-M6X15MM

$

$

Not available

6

Gravely 21900315

GROMMET

$

$

Not available

7

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

8

Gravely 21901958

TUBE, COOLANT, 1 IN

$

$

Currently unavailable

9

Gravely 21900232

HOSE-UPPER,RAD

$

$

Not available

10

Gravely 21900233

HOSE-LOWER,RAD

$

$

Not available

11

Gravely 21900858

HOSE-ENG,IN

$

$

Not available

12

Gravely 21900859

HOSE-ENG,OUT

$

$

Not available

13

Gravely 21900860

HOSE-ENG,INLET/BYPASS

$

$

Not available

14

Gravely 21900861

HOSE-BYPASS

$

$

Not available

15

Gravely 21900320

CONNECTOR-TEE,1X1X0.5

$

$

Not available

16

Gravely 21900339

CLAMP,SPRINGBAND 35/12,BLK

$

$

Not available

17

Gravely 21900348

CLIP-ROUTING

$

$

Not available

18

Gravely 21900350

CLAMP-HOSE,SPRING,20MM

$

$

Not available

19

Gravely 21900333

CLAMP, HOSE (10)

$

$

Not available

20

Gravely 21900342

CLAMP-HOSE(WORM DR)25-40MM

$

$

Not available

21

Gravely 21900508

CLIP

$

$

Not available

22

Gravely 21900250

CAP, OVERFLOW

$

$

Not available

23

Gravely 21900251

CAP,PLUG9X(GRN),FLEX TEMP(10)

$

$

Not available

24

Gravely 21900266

TANK-SURGE

$

$

Not available

25

Gravely 21900292

GASKET (10)

$

$

Not available

26

Gravely 21900581

FUEL LINE-95 CENTIMETERS

$

$

Not available

27

Gravely 21900387

SCR-#14X1 HI/LO-PH-PN TRX-M

$

$

Not available
