996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 170101 - 179999) Rear Suspension Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

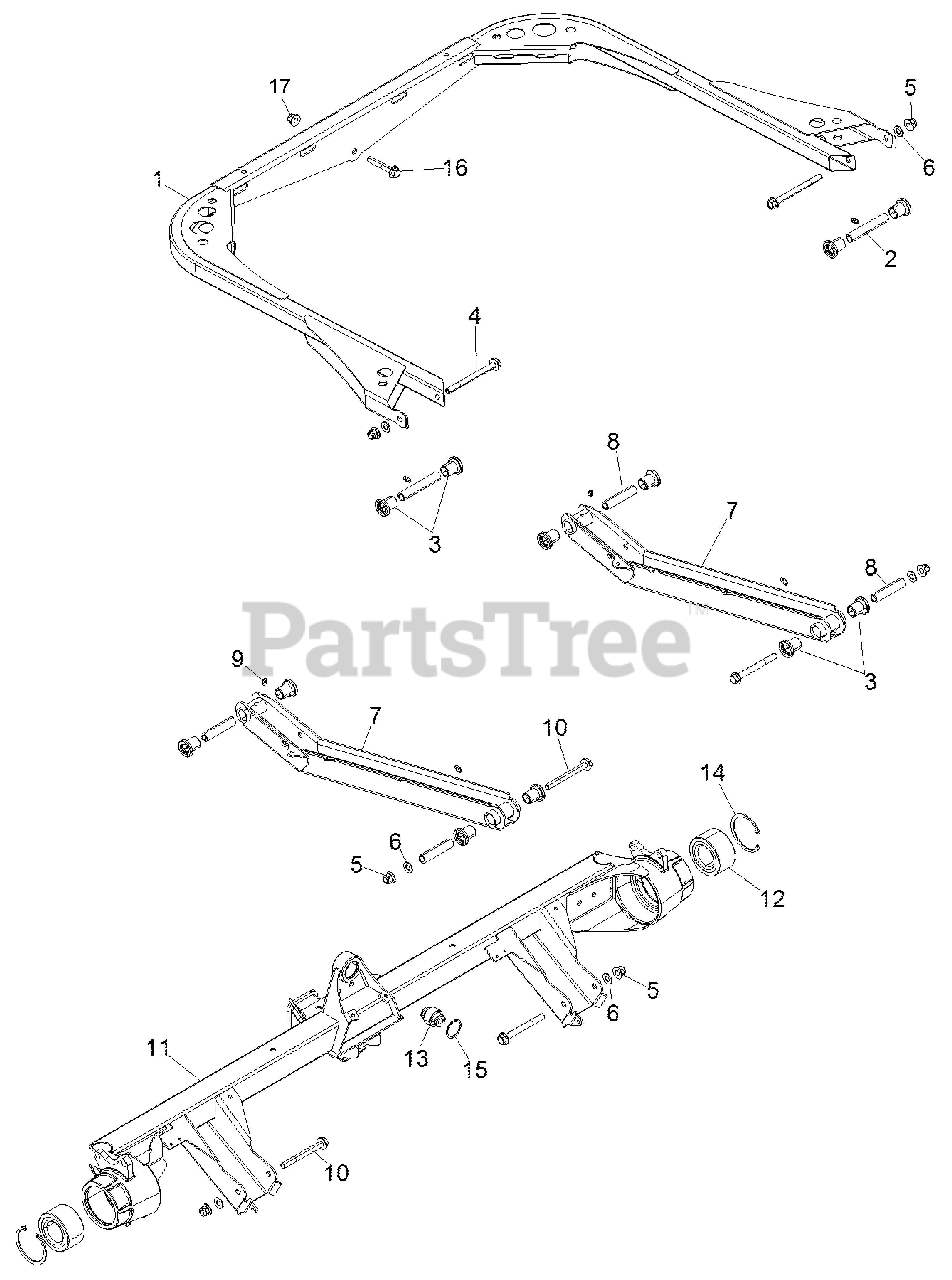

Rear Suspension Parts Diagram

  • Title
1.

Gravely 21900527

WELD-UPPER LINK,M.BLK

$

$

Not available

2.

Gravely 21900176

SHAFT-PIVOT,89.71MM,15.88OD

$

$

Not available

3.

Gravely 21900271

BUSHING-STANDARD,ORV

$

$

Not available

4.

Gravely 21900400

BOLT-M10X1.25X115,HXFLG-OLIVED

$

$

Not available

5.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

6.

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

7.

Gravely 21901893

WELD-LOWER LINK,M.BLK

$

$

Not available

8.

Gravely 21900177

SHAFT-PIVOT,70.99MM,15.88OD

$

$

Not available

9.

Gravely 21900329

FITTING, LUBRICATION

$

$

Not available

10.

Gravely 21900413

SCR-HXFL-M10X1.25X95 10.9 ZOD

$

$

Not available

11.

Gravely 21901891

WELD-REAR AXLE, BLK

$

$

Not available

12.

Gravely 21900002

BEARING, WHEEL

$

$

Not available

13.

Gravely 21900068

BEARING-SPHERICAL LOWER 10MM

$

$

Not available

14.

Gravely 21900512

RING,RETAINING

$

$

Not available

15.

Gravely 21900514

RING-RETAINING,1.25 ID HSNG

$

$

Not available

16.

Gravely 21901477

SCR-HXFL-M10X1.5X65 10.9 RIE

$

$

Not available

17

Gravely 21900470

NUT-M10 X 1.5 HFN NYLOC ZOD

$

$

Not available
