996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 160100 - 170100) Wire Harness Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

Wire Harness Parts Diagram

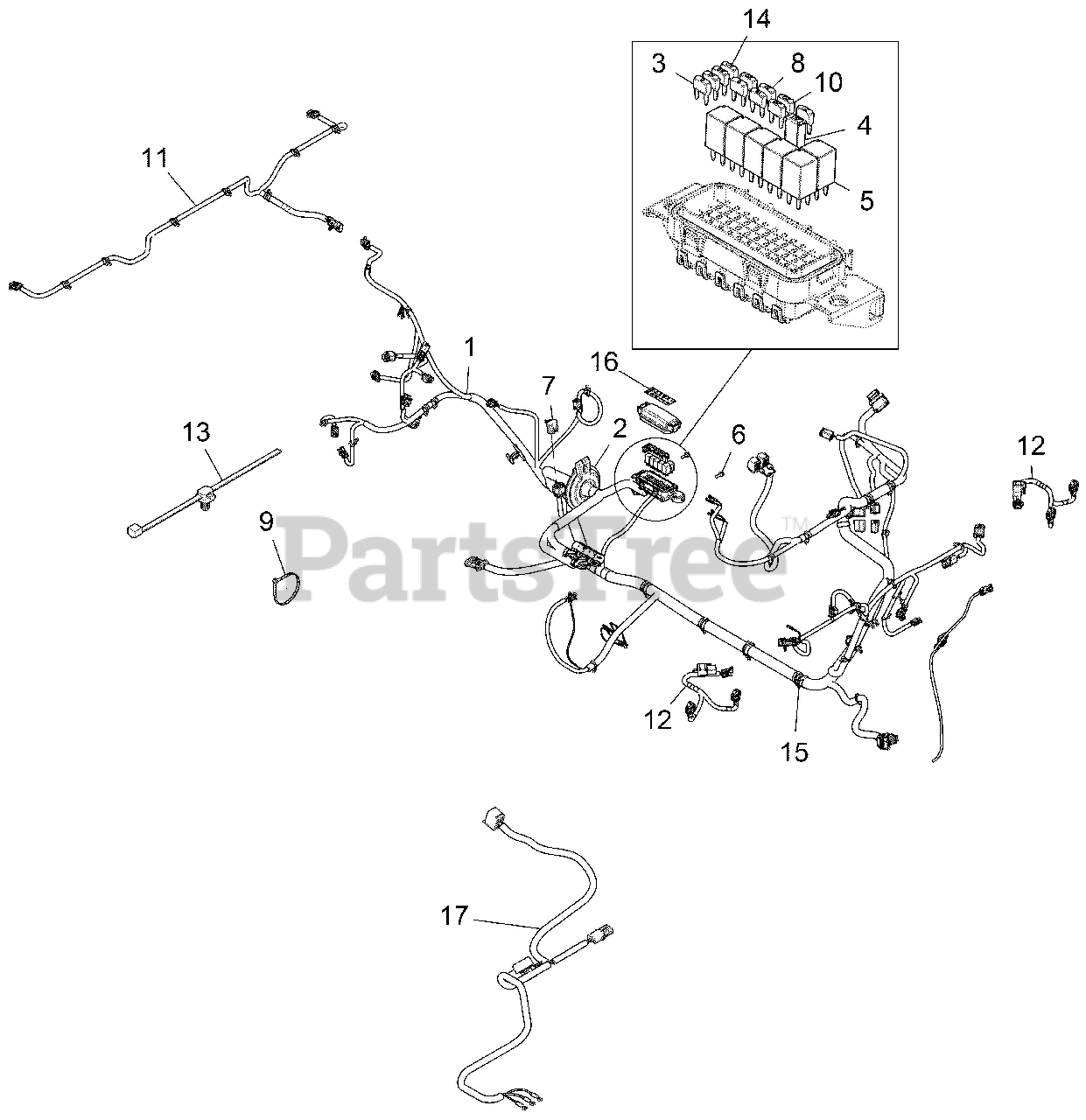

  • Title

1.

Gravely 21900886

HARNESS-CHASSIS,570,EPS

Note: [INCL. 2-5,7,8,10,11-16]

$

$

Not available

2.

Gravely 21900809

GROMMET-CHASSIS HARNESS

$

$

Not available

3.

Gravely 21900749

FUSE-5A,MINI BLADE

$

$

Not available

4.

Gravely 21900679

BREAKER-CIRCUIT,20 AMP

$

$

Not available

5.

Gravely 21900624

RELAY-SPST,SERIES 303,SEALED

$

$

Not available

6.

Gravely 21900420

SCR-HXFL-M6X1.0X20 8.8 RIE

$

$

Not available

7.

Gravely 21900736

COVER-DIAGNOSTIC,W/CLIP

$

$

Not available

8.

Gravely 21900651

FUSE,IGN.10 AMP,(10)

$

$

Not available

9.

Gravely 21900324

CABLE TIE (10)

$

$

Not available

10.

Gravely 21900826

FUSE,PARK,20 AMP,(10)

$

$

Not available

11.

Gravely 21900887

HARNESS-BOX-ARIENS SPLY

$

$

Not available

12.

Gravely 21900888

HARNESS-HEADLIGHT,ARIENS

$

$

Not available

13.

Gravely 21900348

CLIP-ROUTING

$

$

Not available

14.

Gravely 21900664

FUSE,MAIN,30 AMP,(10)

$

$

Not available

15.

Gravely 21900348

CLIP-ROUTING

$

$

Not available

16.

Gravely 21900614

FLYWHEEL PULLER

$

$

Not available

17.

Gravely 21900934

HARNESS-BOX,LIFT

$

$

Not available
