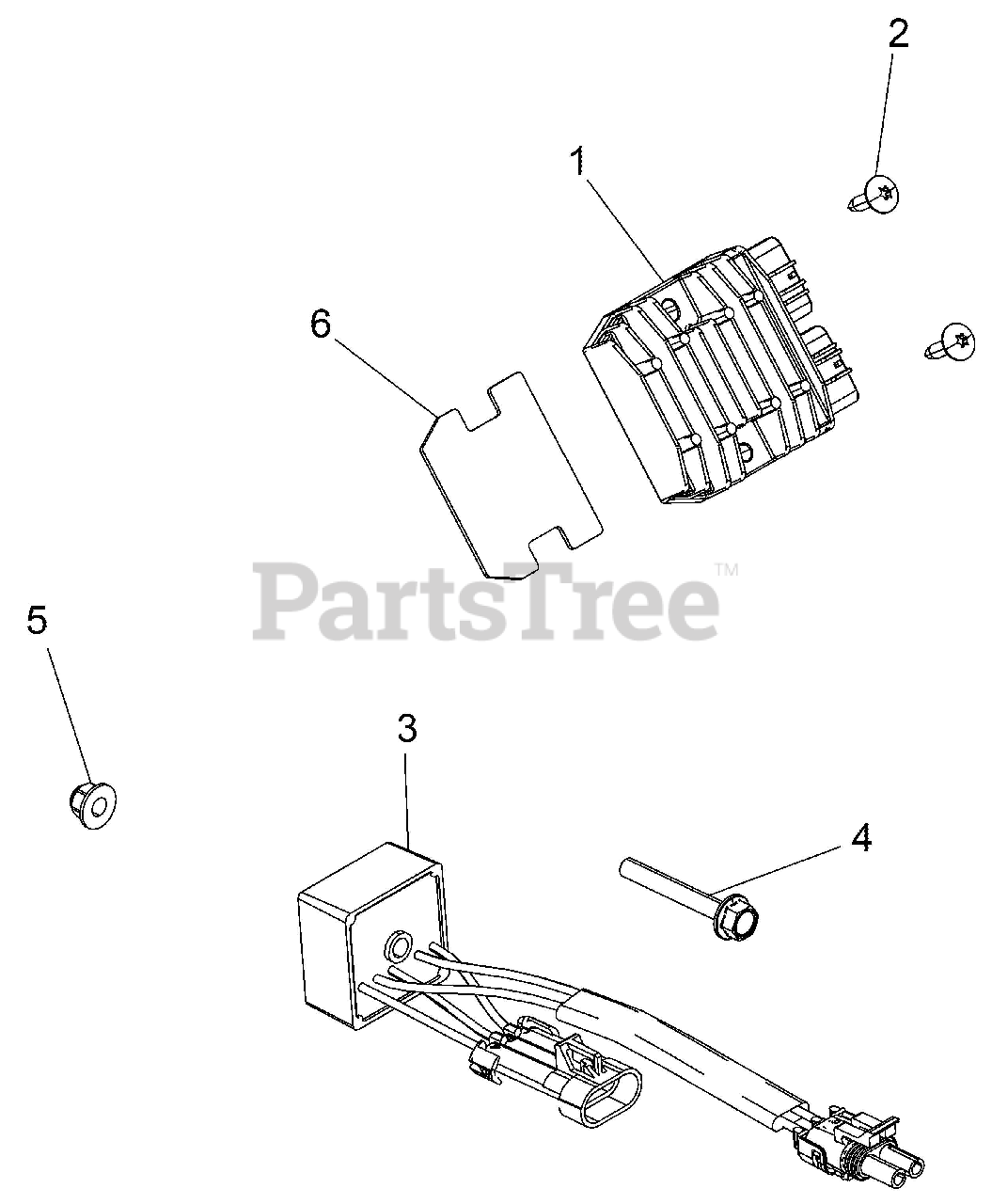

996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 160100 - 170100) Regulator And Relay Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

Regulator And Relay Parts Diagram

  • Title
1.

Gravely 21900145

REGULATOR-3PH,50A,SERIES,HISPD

$

$

Not available

2.

Gravely 21900442

SCR-TFHFL-M6X1.0X25,ZOD

$

$

Not available

3.

Gravely 21900143

RELAY, SOLID STATE,9A,LONG LD

$

$

Not available

4.

Gravely 21900402

BOLT-M6X1.0X35,HXFLG/SH-OLV D

$

$

Not available

5.

Gravely 21900467

NUT-M6X1.0,FLG-NYLOC-OLIVE D

$

$

Not available

6.

Gravely 21900188

COVER-VOLTAGE REGULATOR

$

$

Not available
