996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 150101 - 159999) Steering Asm Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

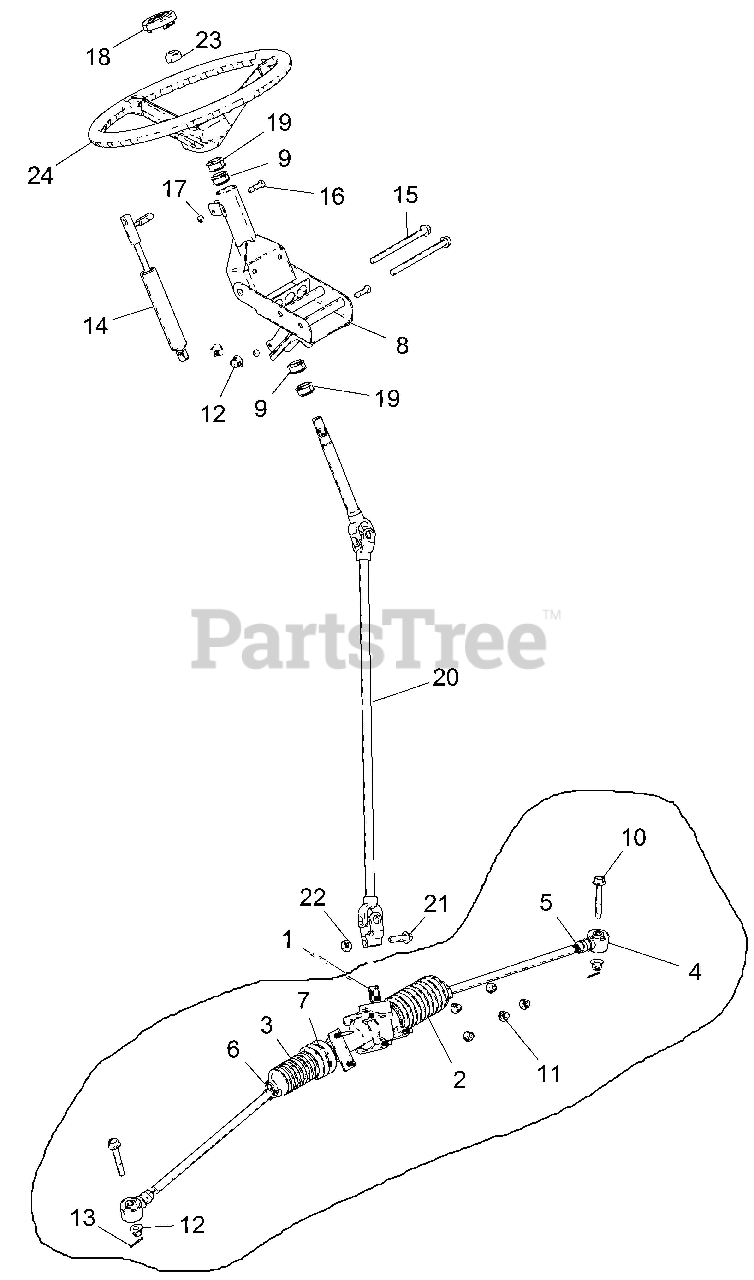

Steering Asm Parts Diagram

  • Title

1

Gravely 21900050

ASM-GEAR BOX,STEERING

Note: [INCL. 2-7]

$

$

Not available

2

Gravely 21900623

BOOT-DRIVER SIDE,RACK

$

$

Not available

3

Gravely 21900630

BOOT-PASSENGER,SIDE RACK

$

$

Not available

4

Gravely 21900868

ROD-END 10MM 1/2-20LH 42

$

$

Not available

5

Gravely 21900636

NUT,JAM,LH(10)

$

$

Not available

6

Gravely 21900635

CLAMP-BOOT,SMALL

$

$

Not available

7

Gravely 21900637

CLAMP-BOOT,LARGE

$

$

Not available

8

Gravely 21900883

ASM-TILT,STEERING,RVTD,M10,BLK

Note: [INCL. 9]

$

$

Not available

9

Gravely 21900129

BEARING-STEERING

$

$

Not available

10

Gravely 21900383

BOLT-M10X1.25X65,HX WASH HD

$

$

Not available

11

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

12

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

13

Gravely 21900499

PIN,COTTER(10)

$

$

Not available

14

Gravely 21900313

ASM-SHOCK,OIL LOCKING,MACH

$

$

Not available

15

Gravely 21900404

BOLT-M10X1.25X130,HXFLG-OLIVED

$

$

Not available

16

Gravely 21900454

BOLT-SHOULDER,M8-15,M6X1.0-BLK

$

$

Not available

17

Gravely 21900459

NUT,NYLOK(10)

$

$

Not available

18

Gravely 21901324

CAP, STEERING WHEEL

$

$

Not available

19

Gravely 21900491

BUSHING-STEERING

$

$

Not available

20

Gravely 21900049

SHAFT-STEERING,UPPER/LOWER

$

$

Not available

21

Gravely 21900403

SCR-M10X1.50X35 HX/FL

$

$

Not available

22

Gravely 21900469

NUT-NY INS,M10X1.5,HEX,ZINC,YW

$

$

Not available

23

Gravely 21900474

NUT-HEX-M16X2, 8 ZC NYL

$

$

Not available

24

Gravely 21900048

WHEEL-STEERING,15"

$

$

Not available
