996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 150101 - 159999) Stator Cover And Flywheel Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

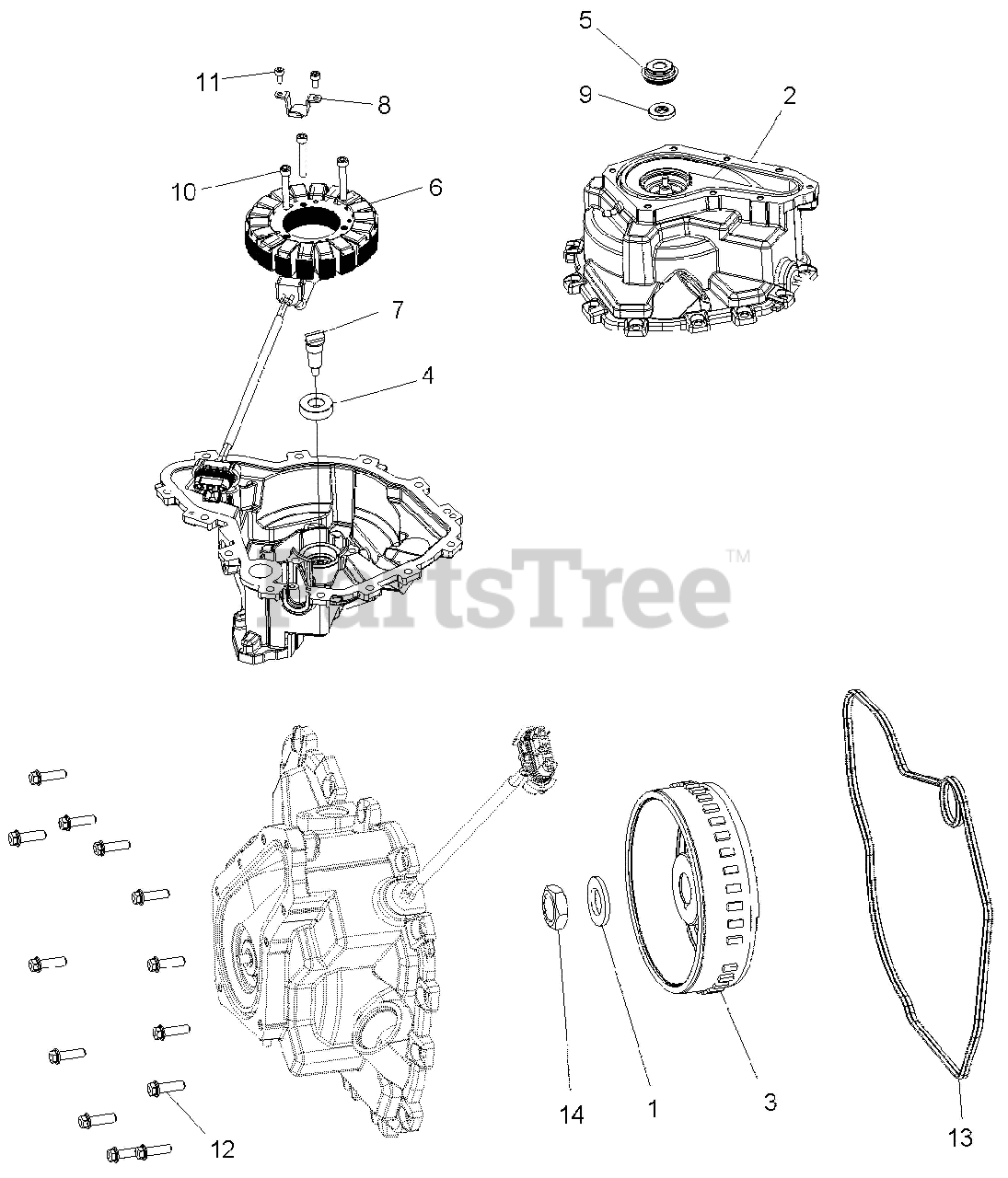

Stator Cover And Flywheel Parts Diagram

  • Title
1

$

$

Not available

2

Gravely 21901432

KIT-IGNITION

Note: [INCL. COVER, FITTING, IMPELLER,4,5,7,9]

$

$

Not available

3

Gravely 21900896

FLYWHEEL

$

$

Not available

4

Gravely 21900130

BEARING-SHAFT,WATERPUMP

$

$

Not available

5

Gravely 21900134

SEAL-WATERPUMP SHAFT,WATER

$

$

Not available

6

Gravely 21900150

STATOR-660W

$

$

Not available

7

Gravely 21900170

SHAFT-PUMP DRIVE,G-1CYL

$

$

Not available

8

Gravely 21900191

GUIDE-STATOR LEAD

$

$

Not available

9

Gravely 21900211

SEAL,TYPE S,ARS

$

$

Not available

10

Gravely 21900365

SCR-M6X1.0X40,HX/SOC/CP-Y/D

$

$

Not available

11

Gravely 21900382

SCR-M5X0.8X10 SOC/CP-D

$

$

Not available

12

Gravely 21900401

SCR-M6X20,HXFLG,0600214

$

$

Not available

13

Gravely 21900234

GASKET-STATOR COVER

$

$

Not available

14

Gravely 21900473

NUT-HEX,M18X1.5 4 JAM,RH

$

$

Not available
