996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 150101 - 159999) Rear Caliper Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

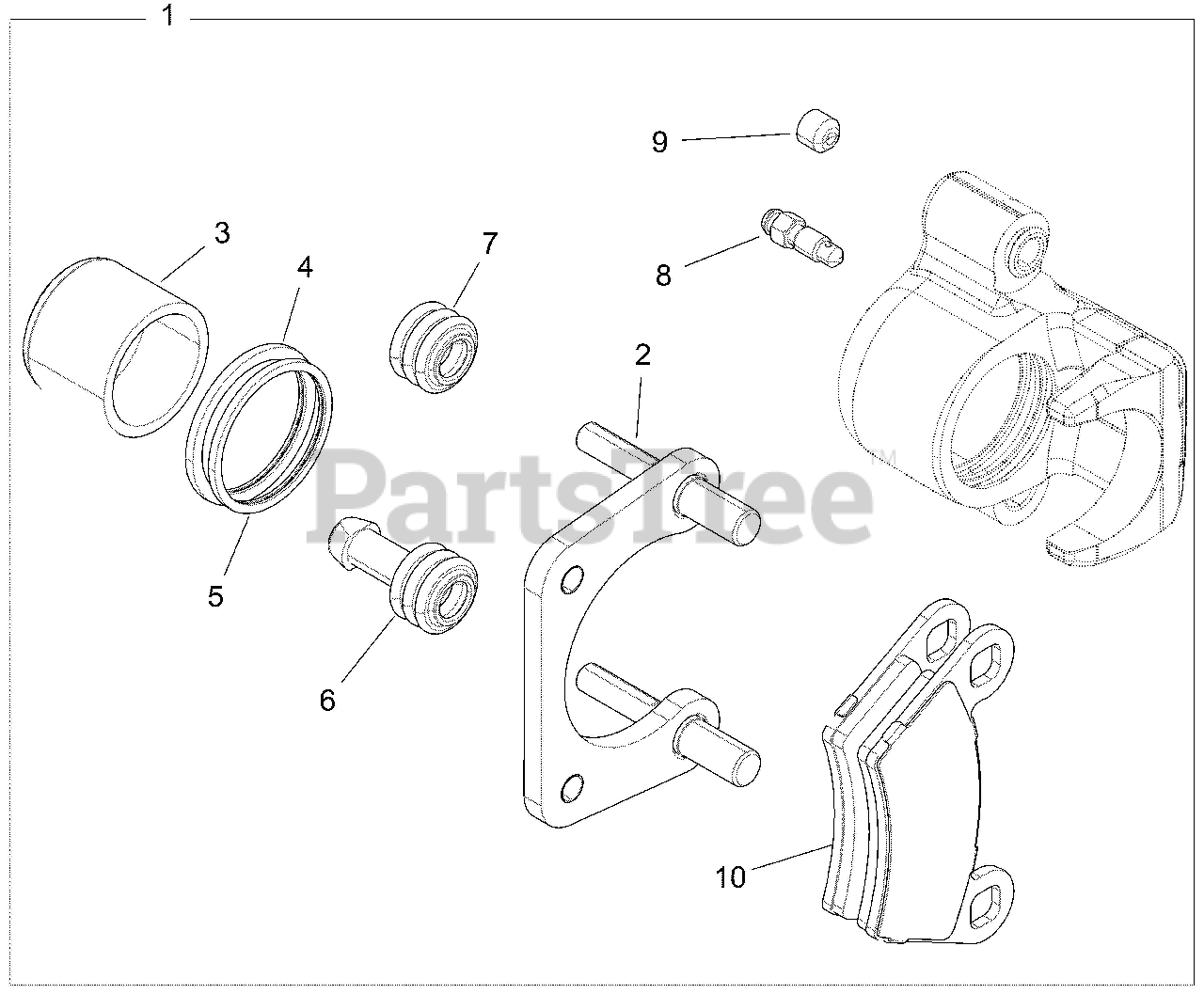

Rear Caliper Parts Diagram

  • Title
1

Gravely 21900061

ASM-CALIPER,BRAKE,1.5,LH,R MET

Note: [INCL. ALL]

$

$

Not available

1

Gravely 21900062

ASM-CALIPER,BRAKE,1.5,RH,R MET

Note: [INCL. ALL]

$

$

Not available

2

Gravely 21900055

ASM-CALIPER MOUNT,REAR,METRIC

$

$

Not available

3

Gravely 21900155

PISTON-BRAKE,1.500

$

$

Not available

4

Gravely 21900214

SEAL-CALIPER INNER,1.50"

$

$

Not available

5

Gravely 21900215

SEAL-CALIPER,OUTER,1.50"

$

$

Not available

6

Gravely 21900219

BOOT-PIN BUSHING

$

$

Not available

7

Gravely 21900220

BOOT-PIN SEAL

$

$

Not available

8

Gravely 21900345

SCR-M7X1.0,BLEEDER,OLIVE D

$

$

Not available

9

Gravely 21900408

SCR-M10X1.0X8,SOC SET-OD

$

$

Not available

10

Gravely 21900067

KIT-BRAKE PAD,ASM,1.5

Note: [INCL. 4 PADS]

$

$

Not available
