996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 150101 - 159999) Oil Pump Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

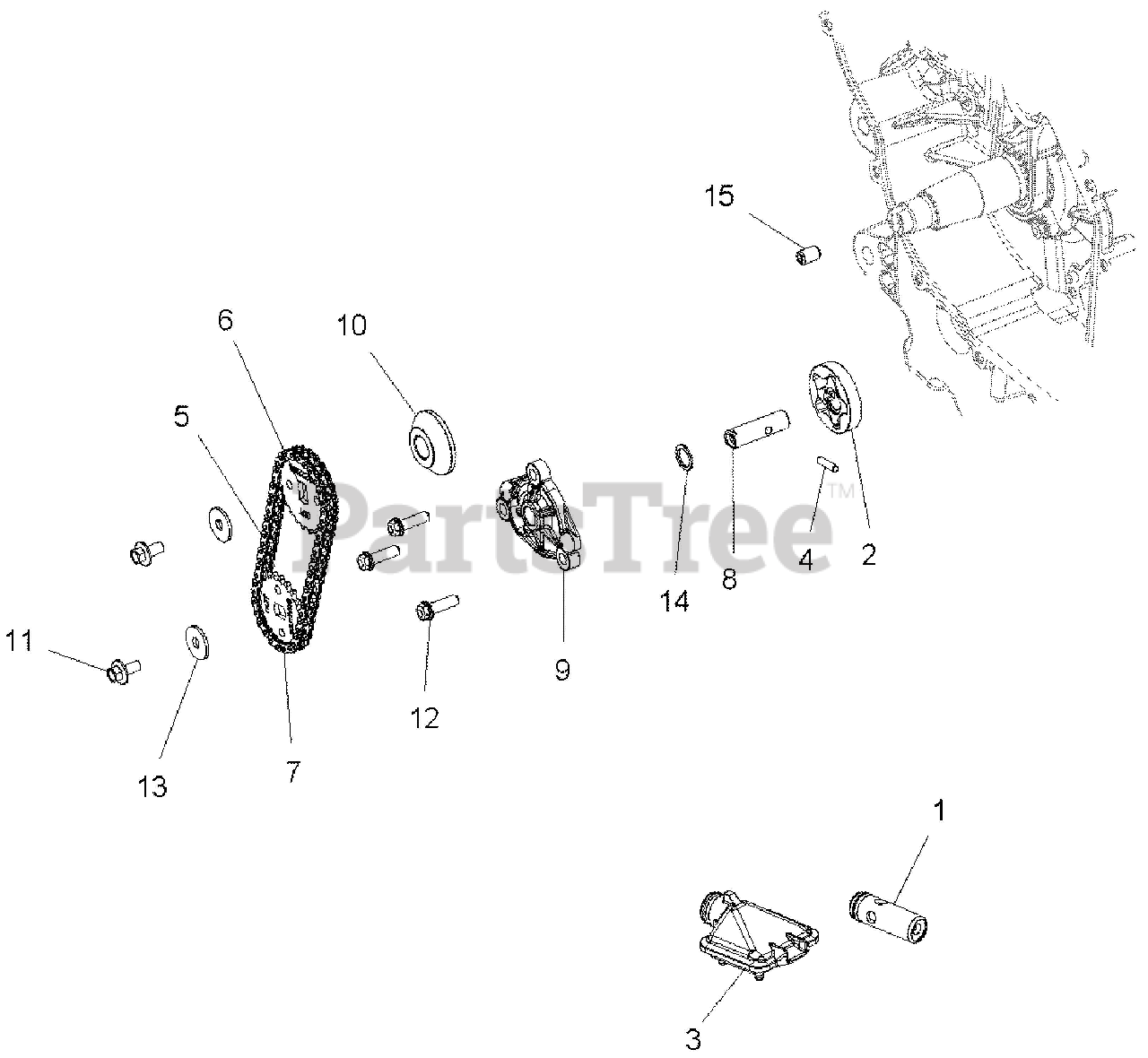

Oil Pump Parts Diagram

  • Title
1

Gravely 21900078

ASM-REGULATOR VALVE

$

$

Not available

2

Gravely 21900018

ASM-GEROTOR

$

$

Not available

3

Gravely 21900079

ASM-OIL PICKUP

$

$

Not available

4

Gravely 21900107

PIN-SOLID,M4X15.8

$

$

Not available

5

Gravely 21900117

CHAIN-OIL PUMP DRIVE

$

$

Not available

6

Gravely 21900118

SPROCKET-23T,DRIVE

$

$

Not available

7

Gravely 21900119

SPROCKET-21T,DRIVEN

$

$

Not available

8

Gravely 21900171

SHAFT-OIL PUMP

$

$

Not available

9

Gravely 21900159

COVER-OIL PUMP,MACH

$

$

Not available

10

Gravely 21900162

SPACER-SPROCKET

$

$

Not available

11

Gravely 21900377

SCREW,HXFLGHD,M6X12

$

$

Not available

12

Gravely 21900401

SCR-M6X20,HXFLG,0600214

$

$

Not available

13

$

$

Not available

14

Gravely 21900489

WASHER-11.2X15.0X1.0

$

$

Not available

15

Gravely 21900084

JET-OIL,OIL PUMP

$

$

Not available
