996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 150101 - 159999) Front Suspension Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

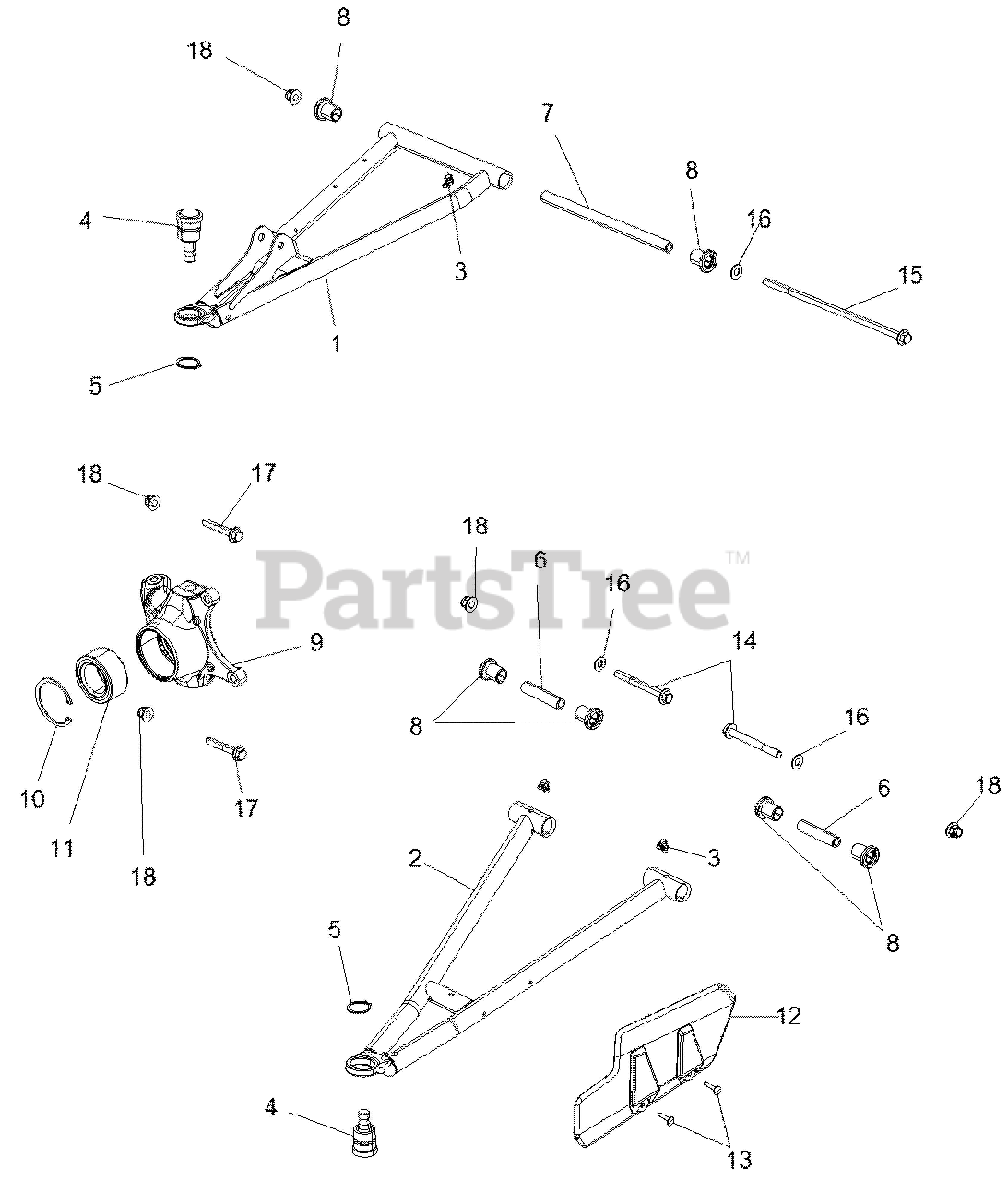

Front Suspension Parts Diagram

  • Title

1

Gravely 21900833

WELD-A-ARM,FR,UPR,LH,BLK

$

$

Not available

1

Gravely 21900834

WELD-A-ARM,FR,UPR,RH,BLK

$

$

Not available

2

Gravely 21900530

WELD-A-ARM,FR,LWR,LH,M.BLK

$

$

Not available

2

Gravely 21900531

WELD-A-ARM,FR,LWR,RH,M.BLK

$

$

Not available

3

Gravely 21900335

FITTING, ZERK,90 DEGREE

$

$

Not available

4

Gravely 21900357

BALL-JOINT,10MM STUD

$

$

Not available

5

Gravely 21900513

RING-RETAINER,EXTERNAL,1.188

$

$

Not available

6

Gravely 21900177

SHAFT-PIVOT,70.99MM,15.88OD

$

$

Not available

7

Gravely 21900175

SHAFT-PIVOT,250.28MM,15.88OD

$

$

Not available

8

Gravely 21900271

BUSHING-STANDARD,ORV

$

$

Not available

9

Gravely 21900849

CARRIER-BEARING,FRONT,LH(MACH)

Note: [BUILT 9/4/14 AND BEFORE]

$

$

Not available

9

Gravely 21900849

CARRIER-BEARING,FRONT,LH

Note: [BUILT 9/5/14 AND AFTER]

$

$

Not available

9

Gravely 21900674

CARRIER-BEARING,FRONT,RH(MACH)

Note: [BUILT 9/4/14 AND BEFORE]

$

$

Not available

9

Gravely 21900850

CARRIER-BEARING,FRONT,RH

Note: [BUILT 9/5/14 AND AFTER]

$

$

Not available

10

Gravely 21901424

RING, RETAINING, INTERNAL

$

$

Not available

11

Gravely 21900131

BEARING-BALL,SEALED,44X72X33.1

$

$

Not available

12

Gravely 21900562

SHIELD-CV,FRONT,LH,BLK

$

$

Not available

12

Gravely 21900563

SHIELD-CV,FRONT,RH,BLK

$

$

Not available

13

Gravely 21900497

RIVET(50) *

$

$

Not available

14

Gravely 21900413

SCR-HXFL-M10X1.25X95 10.9 ZOD

$

$

Not available

15

Gravely 21900417

SCR-HXFL-M10X1.25X275 10.9 ZOD

$

$

Not available

16

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

17

Gravely 21900438

SCR-HXFL-M10X1.25X60 10.9 ZOD

$

$

Not available

18

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available
