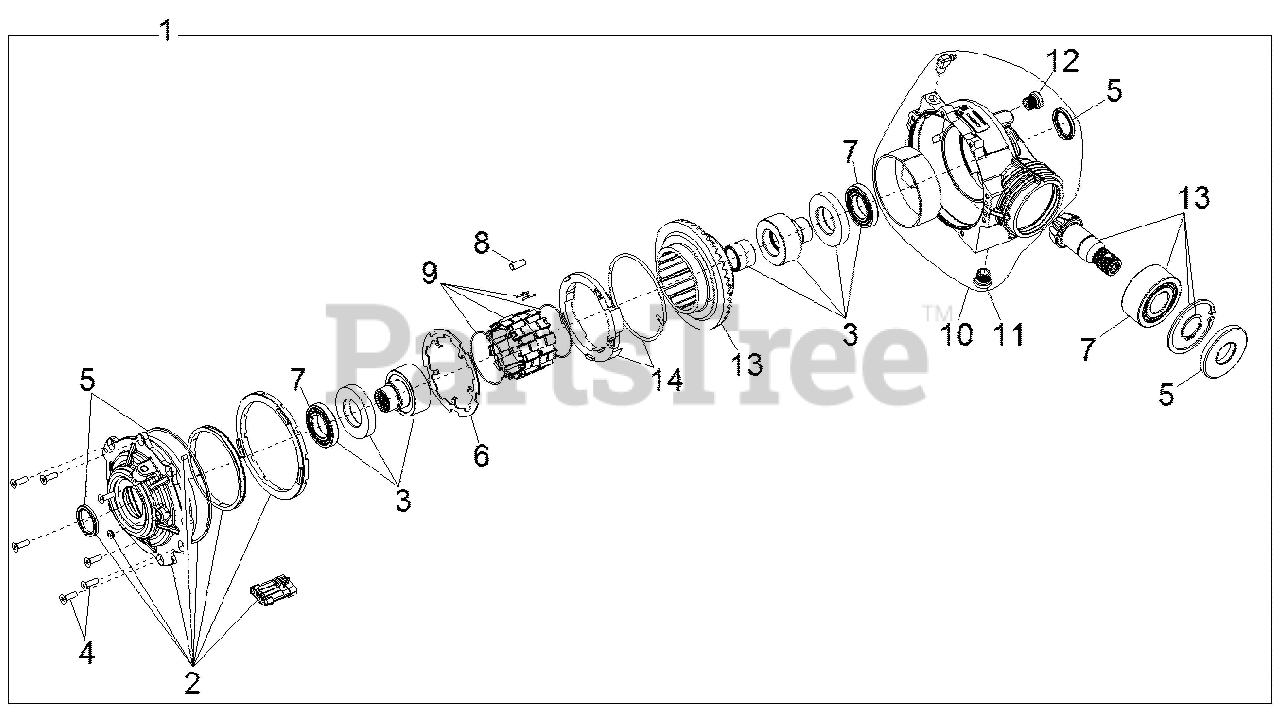

996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 150101 - 159999) Front Gearcase Internals Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

Front Gearcase Internals Parts Diagram

  • Title

1

Gravely 21900927

ASM-GEARCASE,FRONT 12 POCKET

Note: W/2-13

$

$

Not available

2

Gravely 21900771

ASM-COVER,OUTPUT

Note: W/O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASSY, BACKLASH SPACER, 4WD COIL, GROMMET & HEAT SHRINK TUBING

$

$

Not available

3

Gravely 21900673

KIT-HUB,ASM

Note: W/BUSHING, HUB SUB. ASSY & NYLON SPACER

$

$

Not available

4

Gravely 21900787

KIT-FASTENER

Note: W/ALL FASTENERS

$

$

Not available

5

Gravely 21900645

KIT-SEAL REPAIR

Note: W/ALL SEALS

$

$

Not available

6

Gravely 21901203

PLATE-4WD ARMATURE

$

$

Not available

7

Gravely 21900715

BEARING-PINION,5306

Note: W/ALL BEARINGS

$

$

Not available

8

Gravely 21900621

KIT-ROLLER (20)

Note: W/COMPLETE SET OF ROLLER

$

$

Not available

9

Gravely 21901204

K-CLUTCH ROLLS

Note: W/ROLL CAGE & SPRING WIRE FOR H-CLIP

$

$

Not available

9

Gravely 21901205

ASM-ROLL CAGE

Note: HIGH PERFORMANCE ACCESSORY W/CLIP SET

$

$

Not available

10

Gravely 21900821

KIT-GEARCASE ASM

Note: W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG & DRAIN PLUG

$

$

Not available

11

Gravely 21900653

DRAIN PLUG(6203-95-010)

$

$

Not available

12

Gravely 21900648

FILL PLUG(1300-04-001-T)

$

$

Not available

13

Gravely 21901468

K-GEAR HOUSING & PINION

Note: W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING & SHAFT RING

$

$

Not available

14

Gravely 21901207

K-TORSION SPRING & RETAINER

Note: W/TORSION SPRING & SPRINT RETAINER ASSY

$

$

Not available
