996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 150101 - 159999) Dash Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

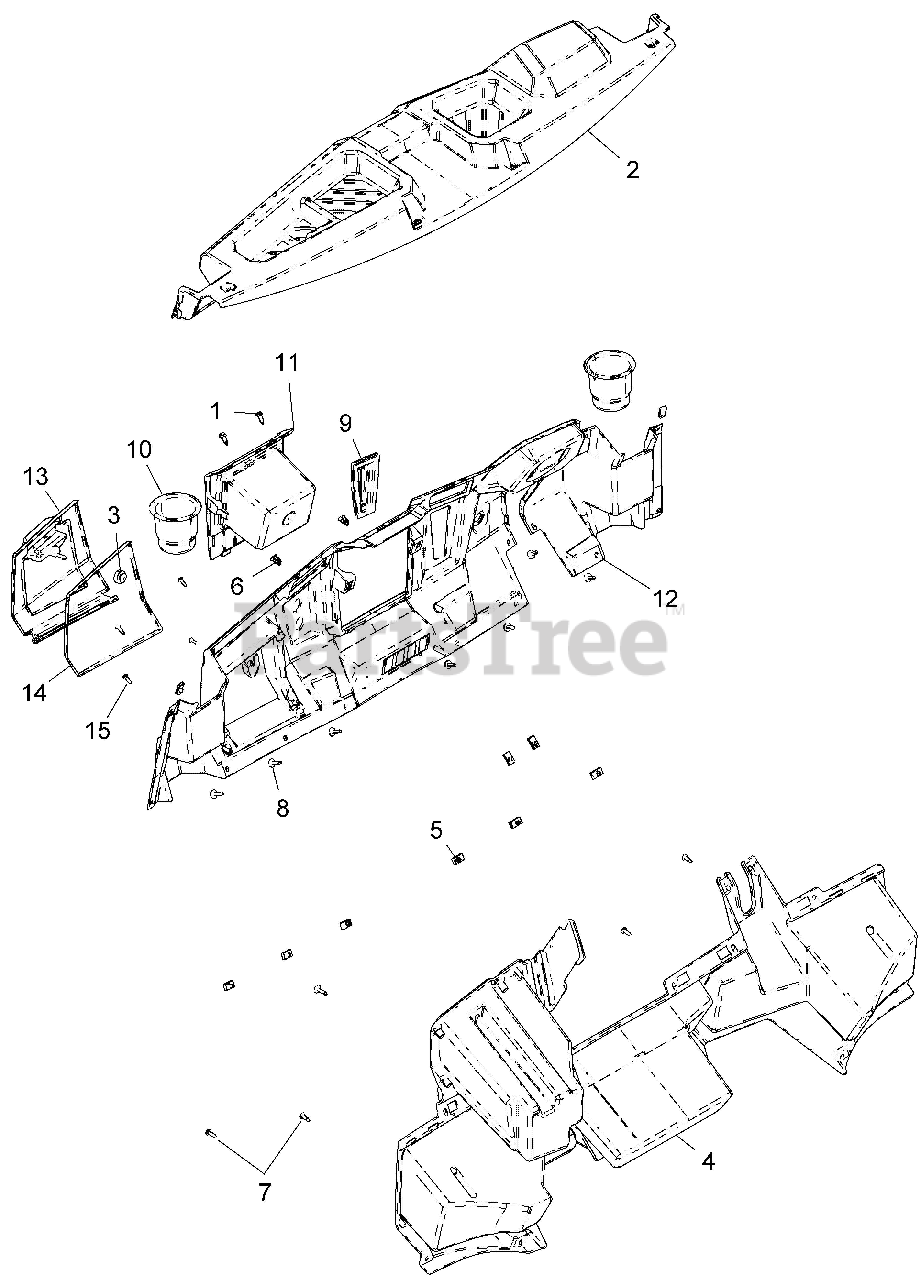

Dash Parts Diagram

  • Title
1

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

2

Gravely 21901321

DASH, PANEL, UPPER, BLACK

$

$

Not available

3

Gravely 21900218

GROMMET-RUBBER,MOUNT,25"

$

$

Not available

4

Gravely 21900553

DASH-STORAGE,RANGER,BLK

$

$

Not available

5

Gravely 21900344

CLIP-U SPEED NUT

$

$

Not available

6

Gravely 21901360

CLIP, DASH TRIM METAL

$

$

Not available

7

Gravely 21900414

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

$

$

Not available

8

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

9

Gravely 21900231

GROMMET-SHIFT LEVER

$

$

Not available

10

Gravely 21900254

HOLDER-CUP

$

$

Not available

11

Gravely 21901320

PANEL, DASH, CONTROLS, BLACK

$

$

Not available

12

Gravely 21901322

DASH, PANEL, LOWER, INDY RED

$

$

Not available

13

Gravely 21901323

COVER, GLOVEBOX, INDY RED

$

$

Not available

14

Gravely 21900279

SEAL-GLOVEBOX

$

$

Not available

15

$

$

Not available
