996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Transfer Case Components Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

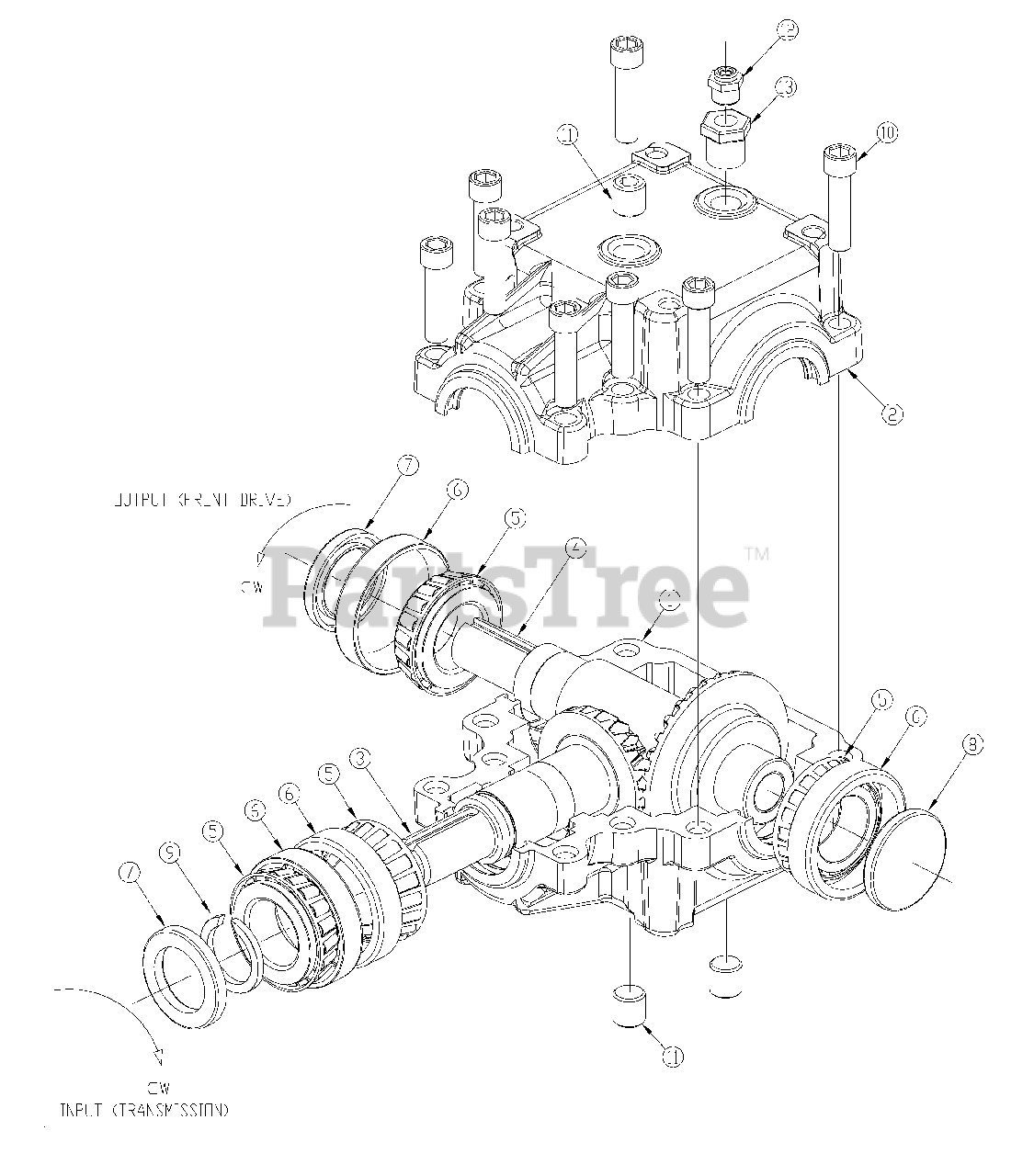

Transfer Case Components Parts Diagram

  • Title
1

Ariens T826-417C

GBOX MODEL R100 1.5TO1 RATIO

$

$

Not available

1

Ariens T100-003M-A0427

SUPERIOR HSG,R100 MACH TAP STD

$

$

Not available

2

Ariens T100-004M-A0428

SUPERIOR HSG,R100 MCH THRU STD

$

$

Not available

3

Ariens T100-8B00-A0471

SUPERIOR STUB SHAFT/GEAR ASSY

$

$

Not available

4

Ariens T100-8B00-A0473

SUPERIOR CROSS SHAFT/GEAR ASSY

$

$

Not available

5

Ariens T244643

SUPERIOR BRG CONE1.00VN-L44643

$

$

Not available

6

Ariens T244610

RPBY 822-080C

$

$

Not available

7

Ariens T109843

SUPERIOR SEAL,1-1.5-.187(R)TC

Note: (R)TC

$

$

Not available

8

Ariens T100301

SUPERIOR CAP,CP-1.5-.187D#7647

$

$

Not available

9

Ariens T203293

SUPERIOR RTN RING EXT1.000SHFT

$

$

Not available

10

Ariens T103125

SUPERIOR BOLT 5/16-18X1.25SHCS

$

$

Not available

11

Ariens T200300

SUPERIOR PLUG 1/4-18NPT SCHD

$

$

Not available

12

Ariens T2003PR

SUPERIOR PLUG VNT5PSIV/N005677

$

$

Not available

13

Ariens T2003VB

SUPERIOR BUSHING 1/4NPTX1/8NPT

$

$

Not available
