996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Steering Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

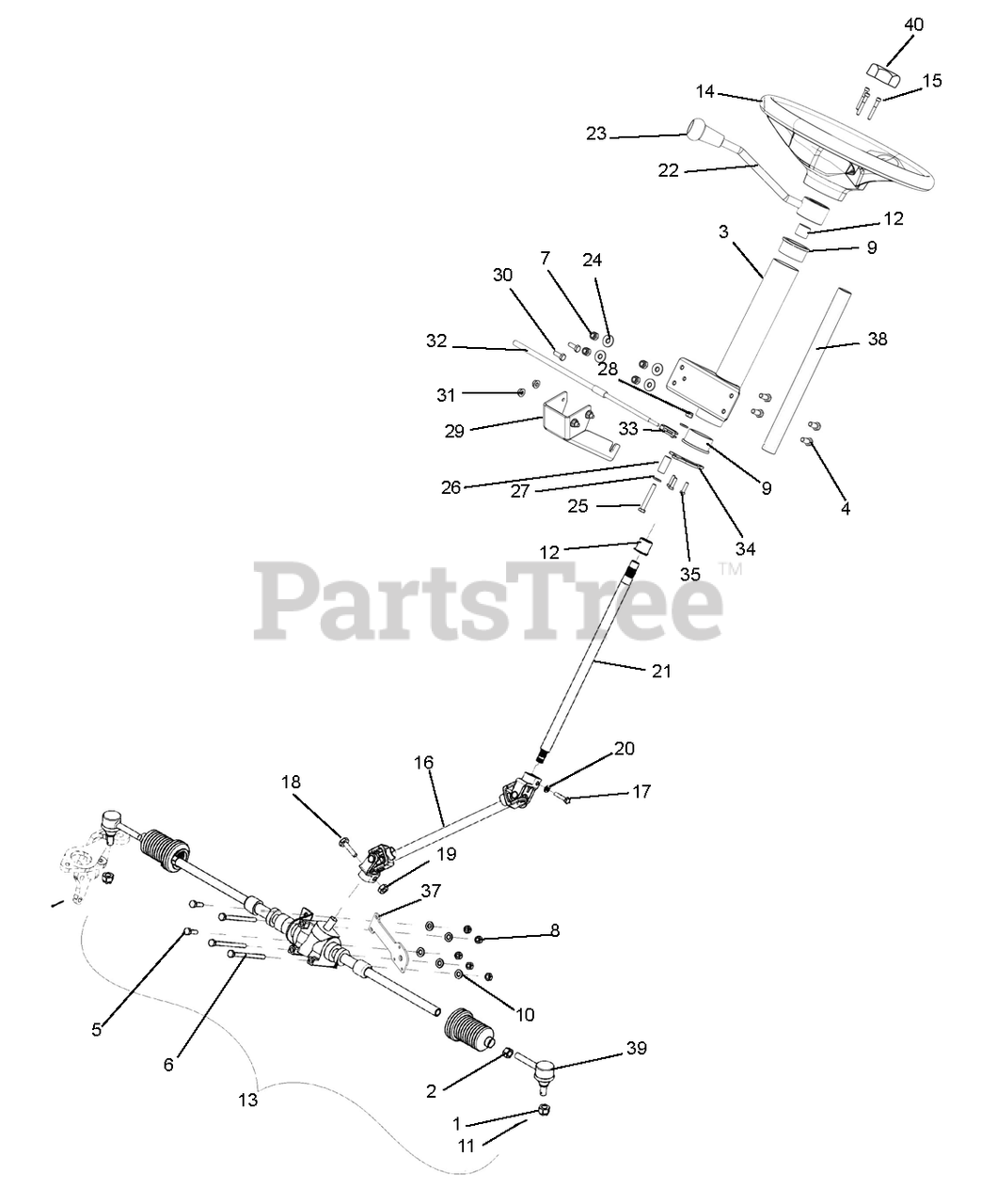

Steering Parts Diagram

  • Title

1

Ariens 06520002

NUT-HEX-SLOTTED M12X1.25 YWZC

$

$

Not available

2

Ariens 06548100

NUT-HEX M14-1.50 GR8.8 YWZC

$

$

Not available

3

Ariens 04157951

WLDT,STEERING COLUMN,BLK

$

$

Not available

4

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

6

Ariens 05973900

@BLT-HEX .31-18X4.50 GR5 YWZC

$

$

Not available

7

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 04157300

BUSHING, NYLON

$

$

Not available

10

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06707000

@PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 04157200

BUSHING, NYLON

$

$

Not available

13

Ariens T826-400C

RACK & PINION ST

$412.99

$

Usually ships in 4-12 days

0

14

Ariens 03964990

STEERING WHEEL, 3 SPK CONTOUR

$108.99

$

Usually ships in 4-12 days

0

15

Ariens 00967418

BOLT, 10-24X1.25 SOC GR5 Y

$3.49

$

Usually ships in 4-12 days

0

16

Ariens T840-093C

STEERING SHAFT TRUCK

$

$

Not available

17

Ariens T23035

MVL BOLT FOR 840-093C

$

$

Not available

18

Ariens T802-628C

HHCS M10X1.5X35 PLT

$

$

Not available

19

Ariens 06542400

NUT-LK-NYL M10-1.5 YWZC

$

$

Not available

20

Ariens T20061

MVL SPRING WASHER FOR 840-093C

$

$

Not available

21

Ariens T840-130C

UPPER STEERING SHAFT TRUCK ASM

$35.99

$

Usually ships in 4-12 days

0

22

Ariens 04160551

WLDT,COLUMN SHIFT LEVER

$

$

Not available

23

Ariens T840-288C

DASH SHIFTER KNOB

$

$

Not available

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 04300451

SHIFT STOP

$

$

Not available

27

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

29

Ariens 04237251

CABLE BRKT,SHIFTER,BLK

$

$

Not available

30

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

32

Ariens T840-270C

SHIFT CABLE (DASH)

Note: (DASH)

$145.99

$

Usually ships in 4-12 days

0

33

Ariens T890-884C

YOKE 10-32 W/ LOCK

$

$

Not available

34

Ariens 04157400

CAM, COLUMN SHIFTER

$

$

Not available

35

Ariens 05901511

SHCS #10-24 X .750

$1.99

$

In Stock, only 3 left!

0

36

Ariens 04062500

CAP, STEERING WHEEL

Note: (Not Shown)

$

$

Not available

37

Ariens 04338851

SPACER,STEERING

$

$

Not available

38

Ariens 04157100

WLDT, COLUMN SHIFTER

$137.99

$

Usually ships in 4-12 days

0

39

Ariens T0180006

TIE ROD END 826-399C

$

$

Not available

40

Ariens T803-283C

NUT HEX M16X2.00X8MM THK PLT

$

$

Not available
