996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Parking Brake Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

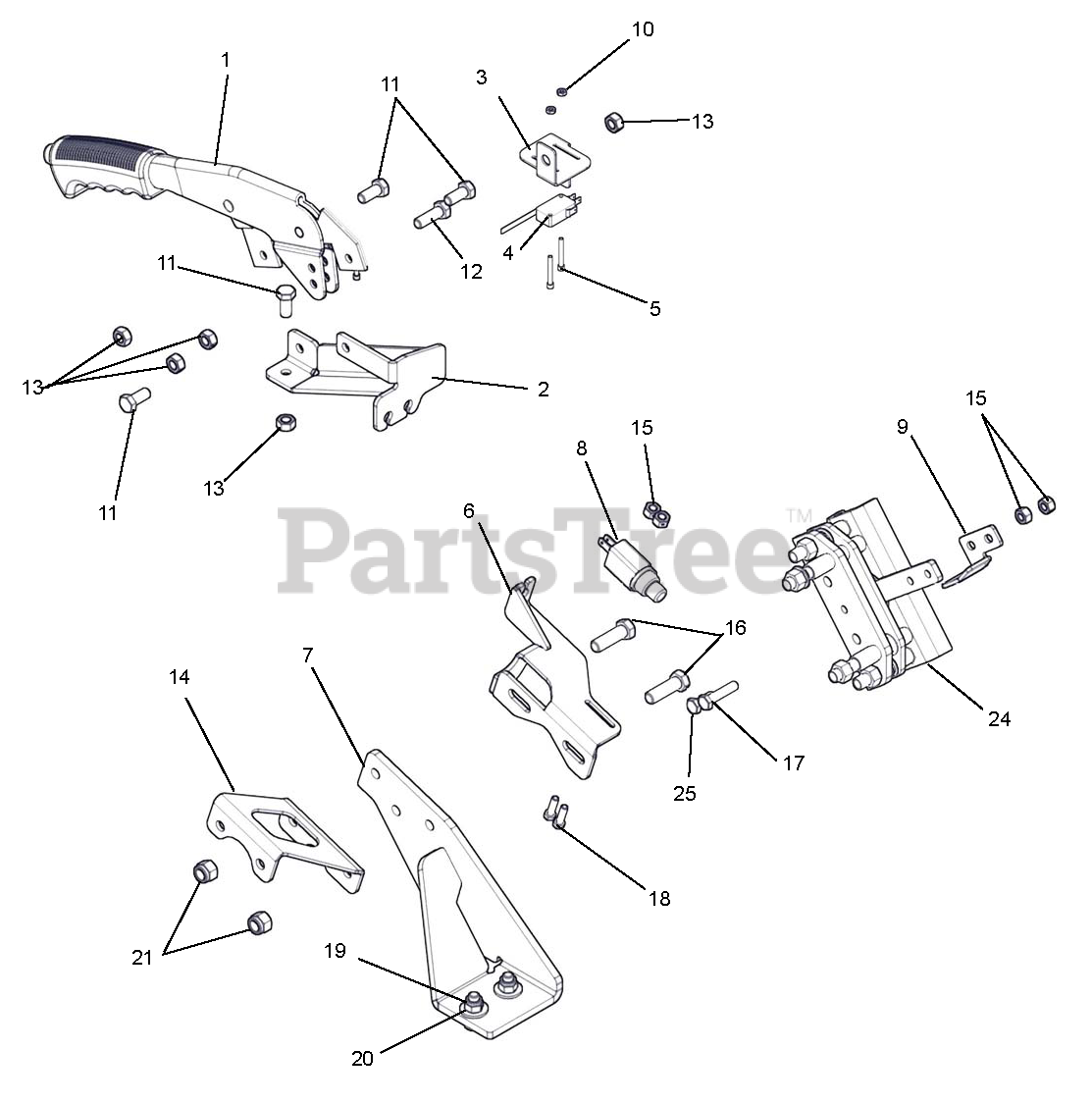

Parking Brake Parts Diagram

  • Title
1

Ariens T815-153C

PARK BRAKE LEVER

$78.99

$

Usually ships in 4-12 days

0

2

Ariens 04237551

BRACKET,E-BRAKE MNT-BLK

$

$

Not available

3

Ariens 04285851

BRACKET, PARK SWITCH

$

$

Not available

4

Ariens T833-330C

PARK BRAKE MICRO-SWITCH

$

$

Not available

5

Ariens T802-788C

HSHCS #4-40X1

$

$

Not available

6

Ariens 04282851

CABLE MNT, PARK BRAKE

$

$

Not available

7

Ariens 04274551

BRACKET, CALIPER MNT, BLCK

$

$

Not available

8

Ariens 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) RUBBER SEALED

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 04314351

MOUNT,SWITCH,PARK BRAKE

$

$

Not available

10

Ariens 06545700

NUT-HEX 4-40 YWZC GR5

$

$

Not available

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 04274651

BRACE, CALIPER MNT, P-BRAKE

$

$

Not available

15

Ariens 06540500

@NUT-LK-CTR #10-24 YWZC

$

$

Not available

16

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

18

Ariens 05920700

BLT-HEX 10-24X.75 PL GR2

$

$

Not available

19

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

22

Ariens T840-270C

SHIFT CABLE (DASH)

Note: (NOT SHOWN)

$145.99

$

Usually ships in 4-12 days

0

23

Ariens T840-119C

PARK BRAKE CABLE ST 51 1/2"LG

Note: (NOT SHOWN)

$96.99

$

Usually ships in 4-12 days

0

24

Ariens T840-312C

BRAKE CALIPER

$

$

Not available

25

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

26

Ariens T800-351C

E RETAINING RING EXTERNAL

Note: (For CABLE) (NOT SHOWN)

$

$

Not available
