996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Main Frame and Bumper Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

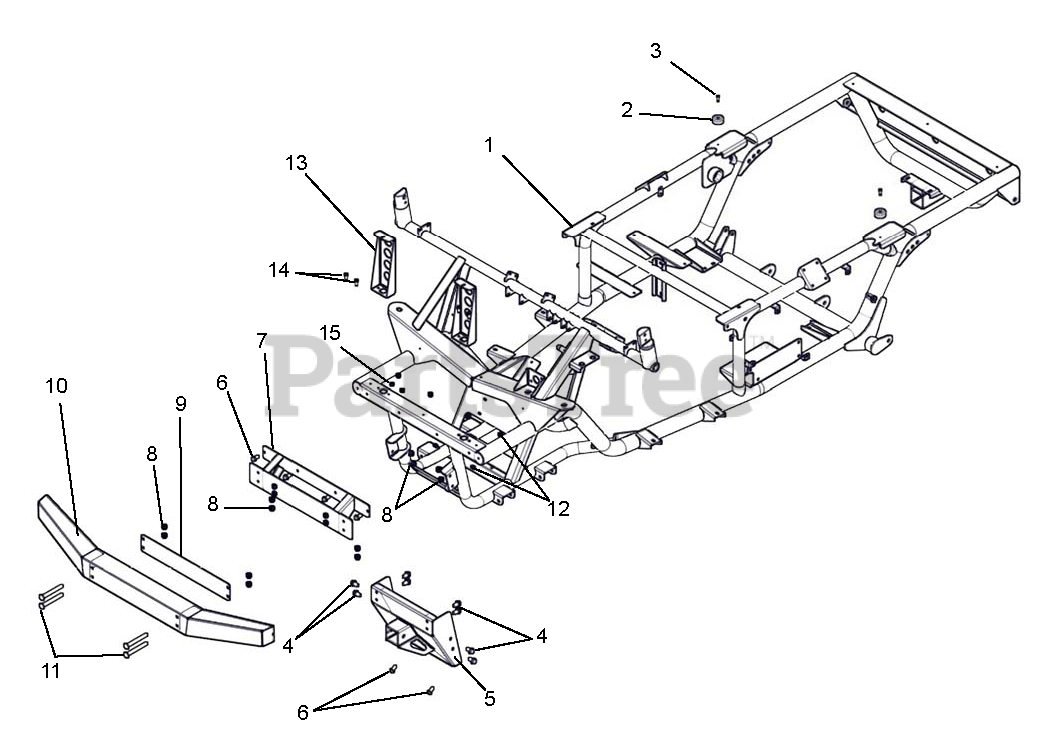

Main Frame and Bumper Parts Diagram

  • Title

1

Ariens 04232351

WLDT-MAINFRAME

$

$

Not available

2

Ariens 00180390

BUMPER, RUBBER .625 X 1.50 DIA

$4.49

$

Usually ships in 4-12 days

0

3

Ariens AA968100

RIVET, 3/16 X .500 POP ST

$

$

Not available

4

Ariens T802-185C

HFSS 3/8-16X3/4 LG

$

$

Not available

5

Ariens 04095951

WLDT, RECEIVER, FRONT

$

$

Not available

6

Ariens 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 5

0

7

Ariens 04085551

WLDT, MNT,BUMPER

$

$

Not available

8

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 04085453

PLATE,BACK,BUMPER

$

$

Not available

10

Ariens 04085351

WLDT, BUMPER

$

$

Not available

11

Ariens 06200129

BLT-RDHDSQNK .38-16X4.00 G5 Y

$

$

Not available

12

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 04258551

HOOD MOUNT BRACKET

$

$

Not available

14

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07800223

DECAL, ARIENS JEWEL

$25.99

$

Usually ships in 4-12 days

0
