996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Front Differential and Driveshaft Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

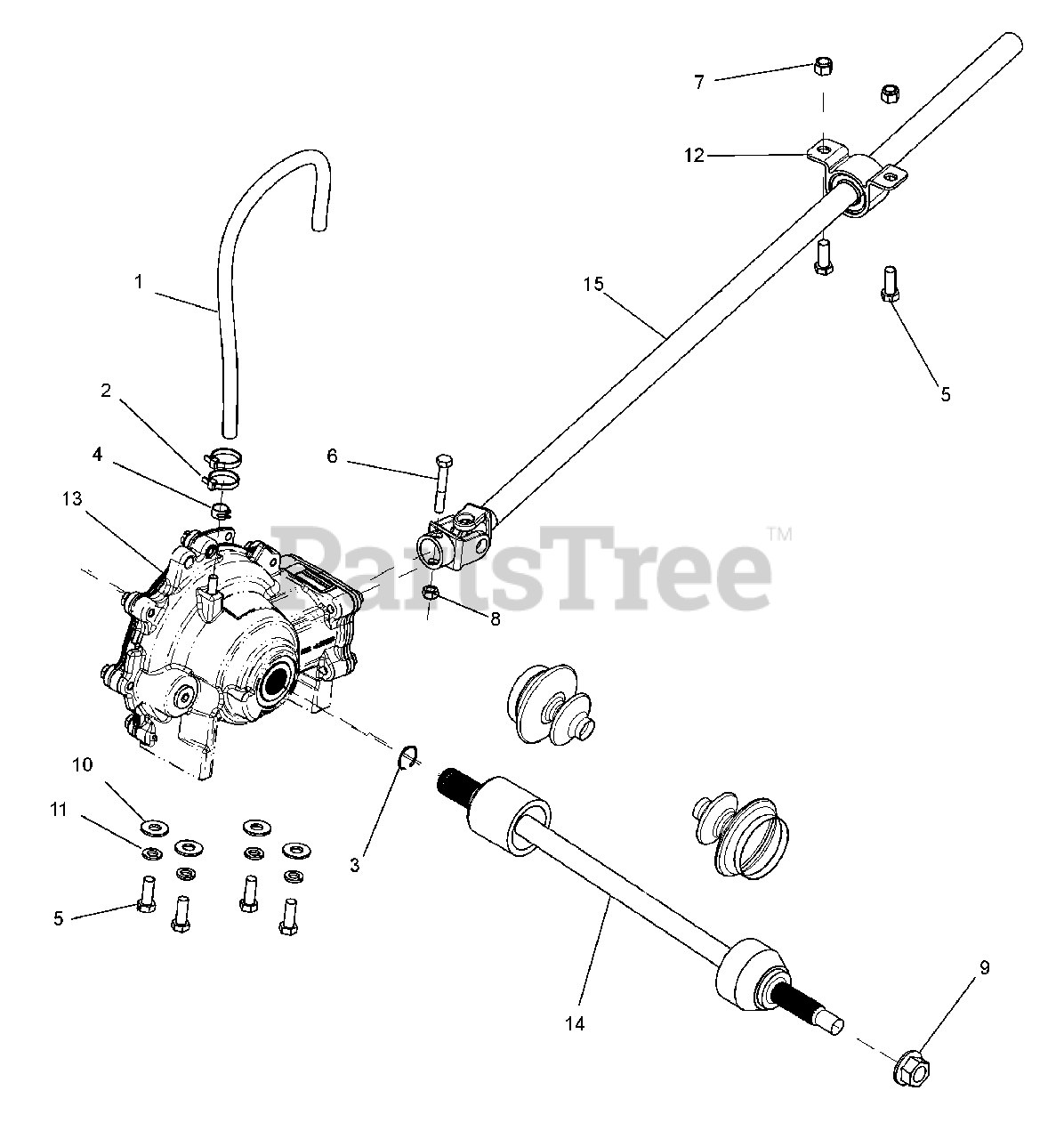

Front Differential and Driveshaft Parts Diagram

  • Title

10

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

1

Ariens T700-466D

VENT HOSE 17.5LG 4X4 GBOX

$

$

Not available

11

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

2

Ariens T800-303C

CABLE TIE 2 DIA MIN - BLK

$

$

Not available

3

Ariens T800-353C

SPRING CIR CLIP .95ODX.063WIRE

$

$

Not available

12

Ariens T822-203C

BRG PB .75ID

$

$

Not available

4

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

13

Ariens T826-398C

FRONT DIFFERENTIAL W/ELE CLTCH

$950.99

$

Usually ships in 4-12 days

0

5

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Ariens T826-405C

FRONT AXLE SHAFT STANDARD

$

$

Not available

6

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

15

Ariens T826-438C

FRONT HALF DRIVELINE 4X4 NT/ST

$342.99

$

Usually ships in 4-12 days

0

7

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

8

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Ariens T803-332C

NUT HEX FLG T LCK M16X1.5 PLT

$

$

Not available
