996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Front Brake System Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

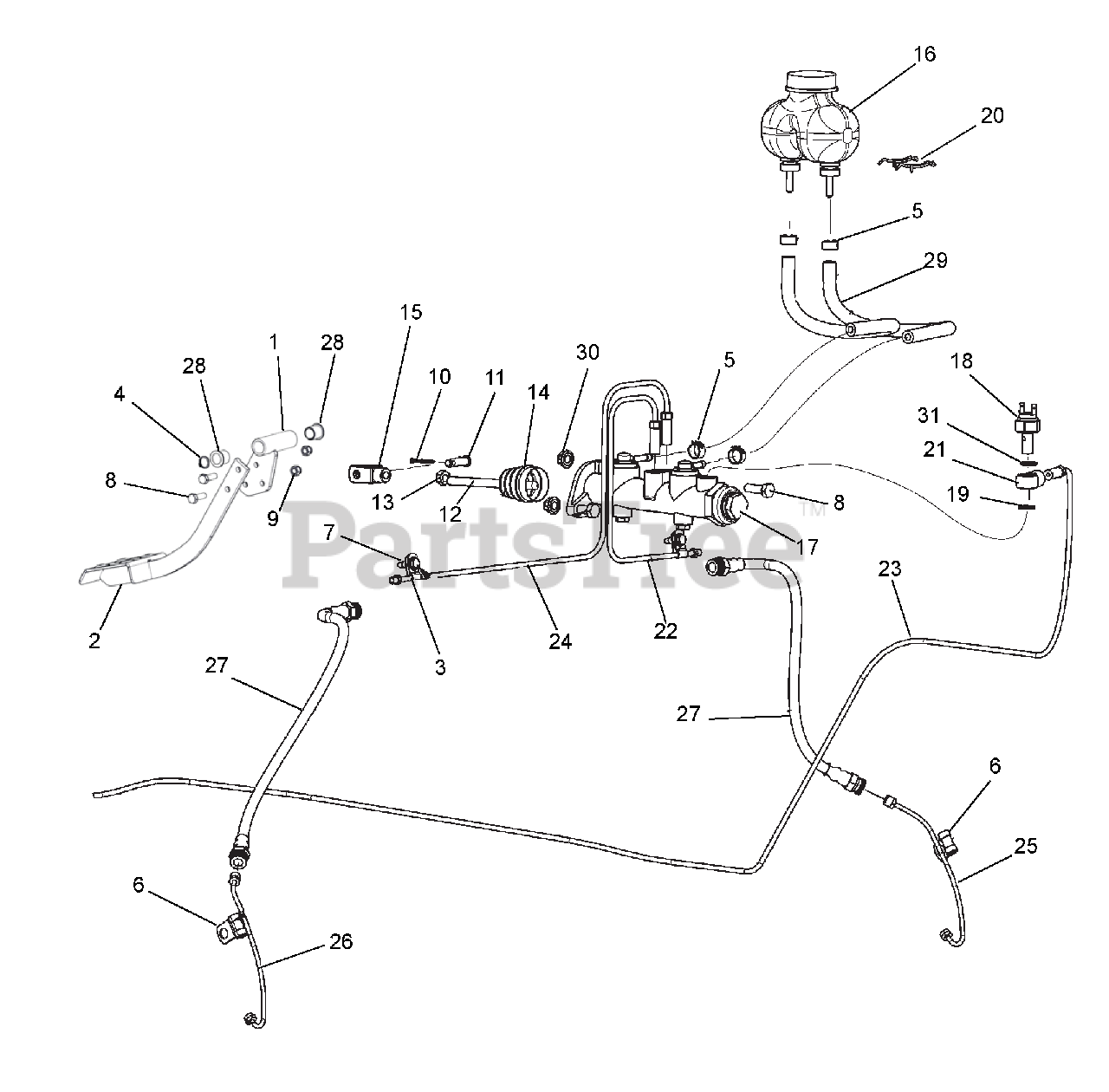

Front Brake System Parts Diagram

  • Title
1

Ariens T700-056H

BRAKE PEDAL PIVOT WELDMENT

$

$

Not available

2

Ariens 04183751

BRAKE PEDAL ASM

$

$

Not available

3

Ariens T800-347C

WIRING/TUBE CLIP FOR 1/4 OD

$

$

Not available

4

Ariens 05700140

SNAP RING, .625 X .035 EXT
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Ariens T800-360C

HOSE CLAMP 1/4 ID

$3.99

$

In Stock, only 1 left!

0

7

Ariens 06120224

HH DRILL SCREW 1/4 X 3/4LG

$

$

Not available

8

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06707000

@PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

11

Ariens 06819500

PIN-CLEV .313X1.00X.81 U

$

$

Not available

12

Ariens T815-150C

MASTER CYLINDER PUSH ROD

$

$

Not available

13

Ariens 06542700

NUT, JAM M8-1.25 YWZC

$

$

Not available

14

Ariens T815-152C

MASTER CYLINDER BOOT

$

$

Not available

15

Ariens T815-154C

MASTER CYLINDER CLEVIS

$

$

Not available

16

Ariens T815-155C

DUAL RESERVOIR BRK FLUID W/CAP

$34.99

$

Usually ships in 4-12 days

0

17

Ariens 04096300

DUAL MASTER CYLINDER

$

$

Not available

18

Ariens 04104600

BRAKE SWITCH, HIGH PRESSURE

$56.99

$

Usually ships in 4-12 days

0

19

Ariens 04096302

WASHER, COPPER, 3.5 MM

$

$

Not available

20

Ariens T815-163C

CLIP MASTER CYLINDER

$

$

Not available

21

Ariens T815-167C

BULK HEAD FLOW THROUGH

$

$

Not available

22

Ariens T815-173C

FRONT, BRAKE LINE LH

$

$

Not available

23

Ariens T815-175C

BRAKE, LINE MAIN

$

$

Not available

24

Ariens T815-174C

FRONT, BRAKE LINE RH

$

$

Not available

25

Ariens T815-190C

FRONT, BRAKE LINE END LH

$

$

Not available

26

Ariens T815-196C

FRONT, BRAKE LINE END RH

$24.99

$

In Stock, only 1 left!

0

27

Ariens T815-210C

BRAKE LINE RBR 17" M10X1FEMALE

$

$

Not available

28

Ariens T817-526C

BUSHING 3/4ODX5/8IDX3/4 FLG HD

$

$

Not available

29

Ariens T840-104C

12.5" FUEL LINE/HYD FLUID RES.

$

$

Not available

30

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

31

Ariens T815-158C

MSTR CYL CPPR WSHR 16X10X1.5MM

$

$

Not available
