996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Front Brake Disc Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

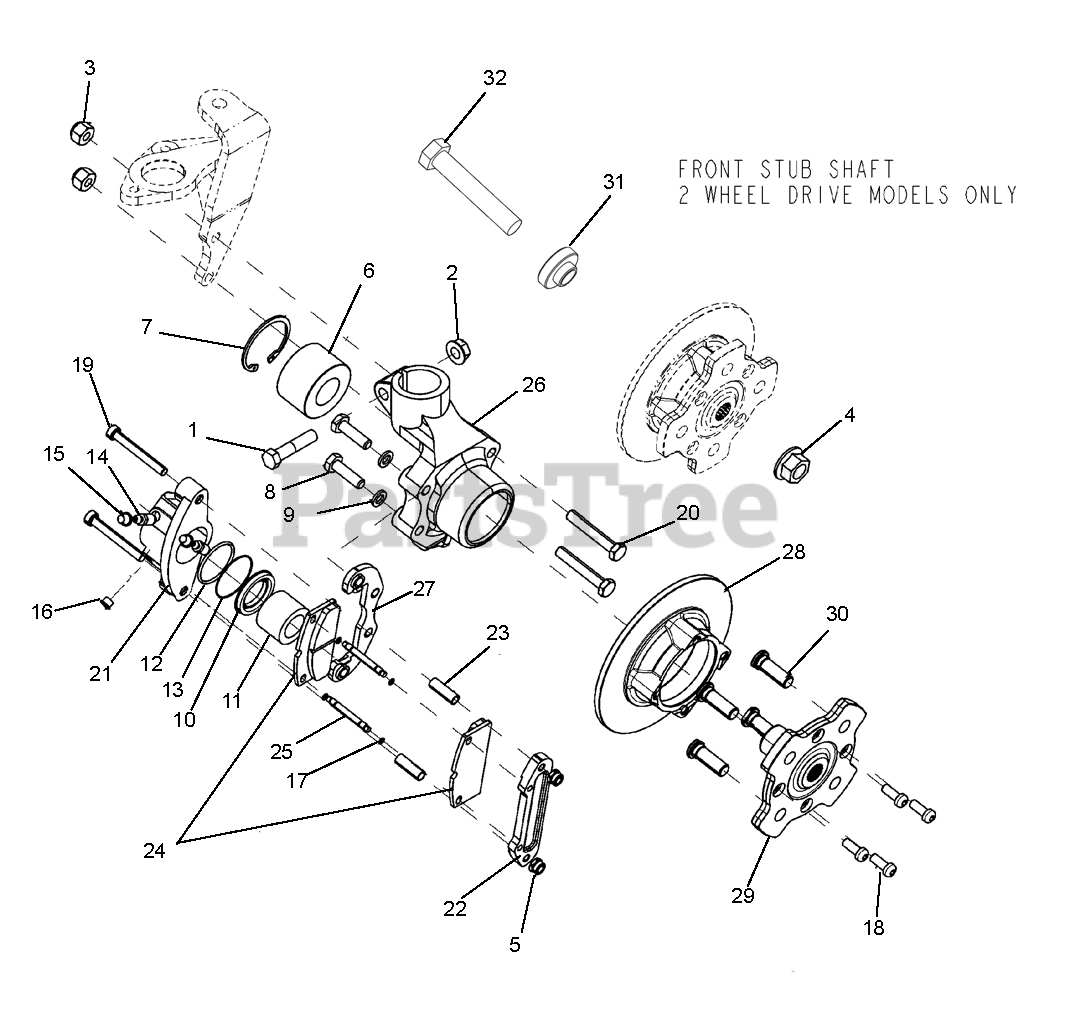

Front Brake Disc Parts Diagram

  • Title

--

Ariens T815-143C

RH DISC BRAKE ASM 172MM W/JNT

Note: (Does Not Include 3, 4 or 5)

$

$

Not available

--

Ariens T815-144C

LH DISC BRAKE ASM 172MM W/JNT

Note: (Does Not Include 3, 4 or 5)

$

$

Not available

1

Ariens 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$2.99

$

In Stock, only 1 left!

0

2

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

3

Ariens T803-280C

NUT HEX NYLOCK M10X1.5 PLT

$

$

Not available

4

Ariens T803-332C

NUT HEX FLG T LCK M16X1.5 PLT

$

$

Not available

5

Ariens TD2041

CMEX NUT M8

$

$

Not available

6

Ariens TF763

CMEX BALL BEARING 60,05X30X37

$97.99

$

Usually ships in 4-12 days

0

7

Ariens TF765

CMEX SEEGER

$

$

Not available

8

Ariens TF772

CMEX SCREW M 10 X 1.25 X 35

$

$

Not available

9

Ariens TF773

CMEX GROWER 10

$

$

Not available

10

Ariens TF824

CMEX DUST BOOT RING

$

$

Not available

11

Ariens TF822

CMEX CAP

$

$

Not available

12

Ariens TF823

CMEX SEALING RING

$

$

Not available

13

Ariens TF820

CMEX RUBBER DUST BOOT

$

$

Not available

14

Ariens TF827

CMEX BLEEDER SCREW

$

$

Not available

15

Ariens TF828

CMX BOOT

$

$

Not available

16

Ariens TF829

CMEX PLUG

$

$

Not available

17

Ariens TF832

CMEX DUST BOOT RING

$

$

Not available

18

Ariens TF845

CMEX SCREW M8 X 20

$

$

Not available

19

Ariens TF774

CMEX SCREW M8 X 65

$

$

Not available

20

Ariens TF799

CMEX HHS M10X1.5X50 PLT

$

$

Not available

21

Ariens TF813

CMEX CALIPER BODY

$

$

Not available

22

Ariens TF815

CMEX REACTION BRACKET

$

$

Not available

23

Ariens TF818

CMEX SPACER

$

$

Not available

24

Ariens TF1004

BRAKE PAD KIT (COMP. 2 WHEELS)

Note: (COMP. 2 WHEELS)

$102.99

$

Usually ships in 4-12 days

0

25

Ariens TF826

CMEX PIN

$

$

Not available

26

Ariens TF840

CMEX WHEEL PIVOT

$

$

Not available

27

Ariens TF834

CMEX CALIPER CLAMPING PLATE

$

$

Not available

28

Ariens TF843

CMEX DISC BRAKE

$

$

Not available

29

Ariens TF181

CMEX FLANGE WITH STUDS

$

$

Not available

30

Ariens TF909

CMEX STUD

$

$

Not available

31

Ariens 03959651

SPCR, STUB BOLT

$

$

Not available

32

Ariens 05984400

BLT-HEX M16-1.5 X 90 8.8 YWZC

$

$

Not available
