996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Throttle And Brake Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

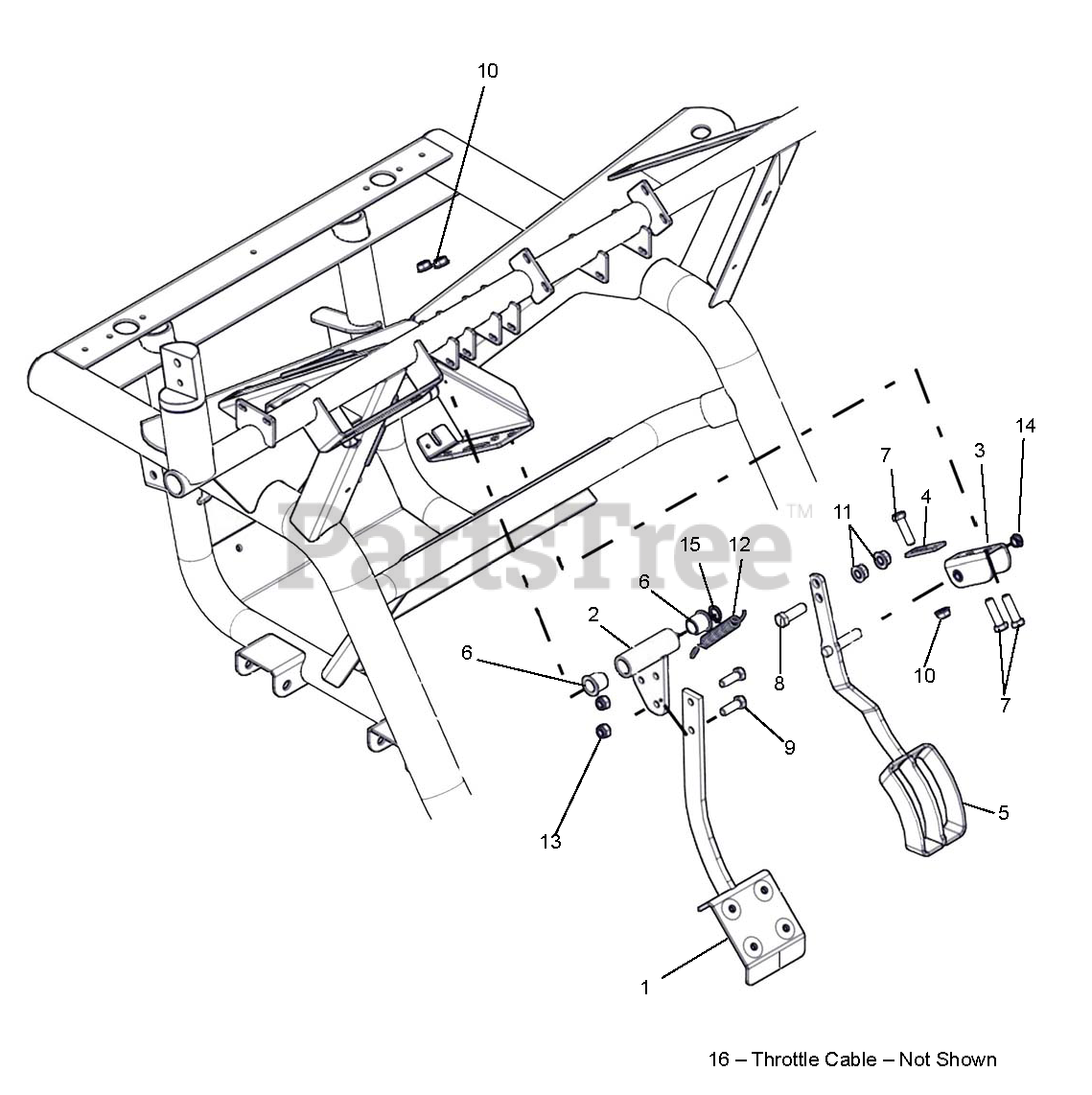

Throttle And Brake Parts Diagram

  • Title

1

Ariens 04183751

BRAKE PEDAL ASM

$

$

Not available

2

Ariens T700-056H

BRAKE PEDAL PIVOT WELDMENT

$

$

Not available

3

Ariens T700-129D

GAS PEDAL MOUNT

$

$

Not available

4

Ariens T700-206D

GAS PEDAL ADJUSTMENT PLATE

$

$

Not available

5

Ariens 04154651

WLDT, GAS PEDAL

$

$

Not available

6

Ariens T817-526C

BUSHING 3/4ODX5/8IDX3/4 FLG HD

$

$

Not available

7

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

8

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

12

Ariens T807-227C

SPRING EXT .5OD .075W 2.75LG

$

$

Not available

13

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

14

Ariens T817-540C

BUSHING NYLON 3/8ID (SNAP IN)

Note: (SNAP IN)

$

$

Not available

15

Ariens 05700140

SNAP RING, .625 X .035 EXT
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 04060200

THROTTLE CABLE, 119"

Note: (NOT SHOWN)

$

$

Not available
