996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Rear Brake System Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

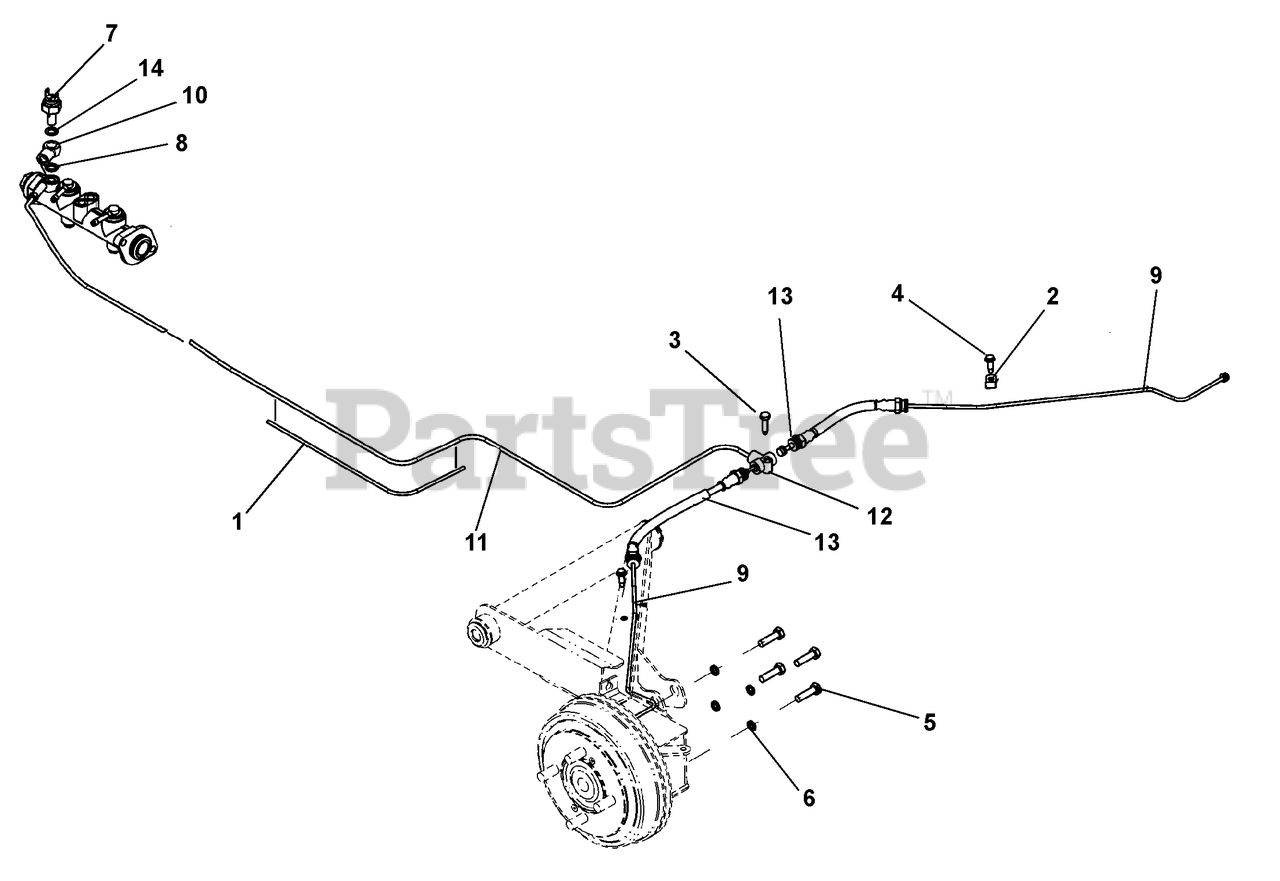

Rear Brake System Parts Diagram

  • Title

1

Ariens T990-244R

CORRUGATED LOOM, .125 ID

$

$

Not available

2

Ariens T800-347C

WIRING/TUBE CLIP FOR 1/4 OD

$

$

Not available

3

Ariens 07430102

SCREW HHC SELF-TAP 1/4-20X 1

$3.49

$

Usually ships in 4-12 days

0

4

Ariens 06120224

HH DRILL SCREW 1/4 X 3/4LG

$

$

Not available

5

Ariens T802-731C

HHCS M8X1.25X30 GR10.9 YLW PLT

$

$

Not available

6

Ariens 06318200

WSHR-LK M8 YWZC

$0.99

$

Usually ships in 4-12 days

0

7

Ariens 04104600

BRAKE SWITCH, HIGH PRESSURE

$56.99

$

Usually ships in 4-12 days

0

8

Ariens 04096302

WASHER, COPPER, 3.5 MM

$

$

Not available

9

Ariens T815-165C

REAR, BRAKE HARD LINE

$

$

Not available

10

Ariens T815-167C

BULK HEAD FLOW THROUGH

$

$

Not available

11

Ariens T815-175C

BRAKE, LINE MAIN

$

$

Not available

12

Ariens T815-178C

FITTING 3 WAY HYD.

$

$

Not available

13

Ariens T815-211C

REAR RUBBER BRAKE LINE

$

$

Not available

14

Ariens T815-158C

MSTR CYL CPPR WSHR 16X10X1.5MM

$

$

Not available
