996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Front Differential Components Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

Front Differential Components Parts Diagram

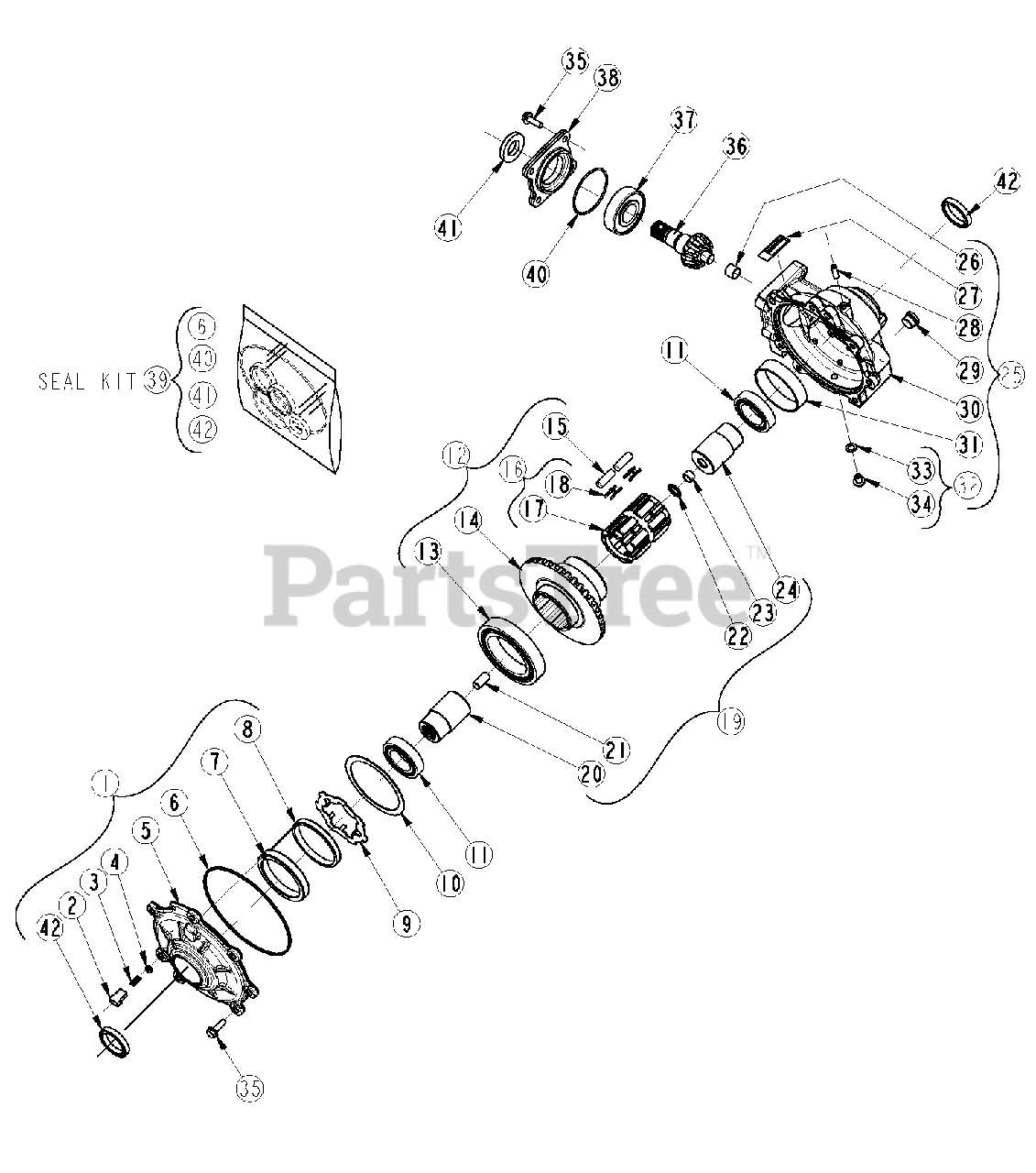

  • Title

Ariens T826-398C

FRONT DIFFERENTIAL W/ELE CLTCH

$950.99

$

Usually ships in 4-12 days

0

1

Ariens T6203-12-100

OUTPUT COVER PLATE ASSEMBLY

Note: (Includes #2 to #8 & 42)

$

$

Not available

2

MATE-N-LOK - HOUSING (Sold with #1 Kit)

Note: (Sold with #1 Kit)

$

$

Not available

3

MATE-N-LOK PIN (Sold with #1 Kit)

Note: (Sold with #1 Kit)

$

$

Not available

4

GROMMET, OUTPUT COVER (Sold with #1 Kit)

Note: (Sold with #1 Kit)

$

$

Not available

5

COVER PLATE, OUTPUT - MACHINED (Sold with #1 Kit)

Note: (Sold with #1 Kit)

$

$

Not available

6

O-RING, OUTPUT - 164S (SQ. RING) (Sold with #1 Kit & #39 kit)

Note: (SQ. RING) (Sold with #1 Kit & #39 kit)

$

$

Not available

7

COIL POCKET INSERT (Sold with #1 Kit)

Note: (Sold with #1 Kit)

$

$

Not available

8

COIL WITH PRESS FIT BOBBIN (Sold with #1 Kit)

Note: (Sold with #1 Kit)

$

$

Not available

9

Ariens T6203-59-032-B

ARMATURE PLATE

$

$

Not available

10

Ariens T6203-26-020-A

SHIM, ARMATURE PLATE

$

$

Not available

11

Ariens T1215-02-038-T

6008-C3DEP.GRVE.ROLLER BEARING

$

$

Not available

12

Ariens T6203-01-166

CLUTCH ASSEMBLY

Note: (Includes #13 to #16)

$

$

Not available

13

Ariens T1215-02-141-T

6015-C3 DP.GRV RLLR BAL BEARNG

Note: (Sold separately & with #12 Kit)

$

$

Not available

14

Ariens T6203-13-124-D

CLTCH.HSG./RNG GR.,42T 6.75DP

Note: (with #12 Kit) Not serviced, replaced by 6203-9U-088, item 43

$

$

Not available

15

Ariens T6203-29-010-0

ROLL KIT

Note: (Sold separately & with #12 Kit)

$

$

Not available

16

Ariens T6203-20-072

ROLL CAGE ASSEMBLY

Note: (Includes #17 & #18)

$

$

Not available

17

ROLL CAGE, PLASTIC-MACHINED (Sold separately & with #16 Kit)

Note: (Sold separately & with #16 Kit)

$

$

Not available

18

Ariens T6203-35-024-0

SPRING KIT,H-CLIP .008 THK

Note: (Sold separately & with #16 Kit)

$

$

Not available

19

Ariens T6203-27-017-B

RACE/OUTPUT HUB ASSEMBLY

Note: (Includes #20 to #21)

$

$

Not available

20

RACE/OUTPUT HUB, FEMALE (Sold with #19 Kit)

Note: (Sold with #19 Kit)

$

$

Not available

21

Ariens PAP0806

PERMIGLIDE BUSHING (Sold with #19 Kit)

Note: (Sold with #19 Kit)

$

$

Not available

22

Ariens T1242-00-009-T

TC815 NDLE.RLLER.THRST BEARING

Note: (Sold separately & with #19 Kit)

$

$

Not available

23

Ariens T0430-01-002-T

1/2 DIA X 1 LG. DOWEL PIN

Note: (Sold separately & with #19 Kit)

$

$

Not available

24

RACE/OUTPUT HUB, MALE (Sold with #19 Kit)

Note: (Sold with #19 Kit)

$

$

Not available

25

Ariens T6203-13-165

GEARCASE ASSEMBLY

Note: (Includes #26 to #32)

$

$

Not available

26

Ariens MB1615

DU BUSHING (Sold with #25 Kit)

Note: (Sold with #25 Kit)

$

$

Not available

27

LABEL, BAR CODE (Sold with #25 Kit)

Note: (Sold with #25 Kit)

$

$

Not available

28

TUBE, VENT 1/2 HOSE (Sold with #25 Kit)

Note: (Sold with #25 Kit)

$

$

Not available

29

Ariens T0518-03-009-T

PLUG OIL FILL 3/4-16 HOLLOW HD

Note: (Sold separately & with #25 Kit) Torque item #29 (PLUG OIL FILL 3/4-16 HOLLOW HD) Tighten to 10 ft-lbs.

$

$

Not available

30

GEARCASE, LEFT HAND - MACHINED (Sold with #25 Kit)

Note: (Sold with #25 Kit)

$

$

Not available

31

BUSHNG, SELF LUBRICATING 80 X 85 X 20 (Sold with #25 Kit)

Note: (Sold with #25 Kit)

$

$

Not available

32

Ariens T6203-95-001-0

DRAIN PLUG ASSEMBLY

Note: (Includes #33 & #34)

$

$

Not available

33

WASHER, .625 X .06, NYLON 6/6 (Sold with #32 Kit)

Note: (Sold with #32 Kit)

$

$

Not available

34

PLUG, OIL DRAIN, 3/8-16HH FLANGE WITH MAG. TIP (Sold with #32 Kit) Torque item #34 (PLG, OIL DRAIN, 3/8-16HH FLNGE W/M) Tighten to 9 ft-lbs.

Note: (Sold with #32 Kit) Torque item #34 (PLG, OIL DRAIN, 3/8-16HH FLNGE W/M) Tighten to 9 ft-lbs.

$

$

Not available

35

Ariens T6203-93-001-0

BOLT KIT

Note: (5/16" X 1" Hex Head Bolts) Tighten to17 ft-bs

$

$

Not available

36

Ariens T6203-47-024-B

PINION SHAFT HILLIARD

$

$

Not available

37

Ariens T1215-02-154-T

6306-03-C3 DP GRV RLLR BL BRG

$

$

Not available

38

Ariens T6203-12-064-B

COVER PLATE,INPUT-MACHINED

$

$

Not available

39

Ariens T6203-56-001-0

MINOR REPAIR KIT

Note: (Includes #6 & #40 to #42)

$

$

Not available

40

0-RING, INPUT, 148S (Sold with #39 Kit)

Note: (Sold with #39 Kit)

$

$

Not available

41

Ariens 25X47X8

TRIPLE LIP OIL SEAL (Sold with #1 Kit & #39 Kit)

Note: (Sold with #1 Kit & #39 Kit)

$

$

Not available

42

Ariens 40X52X7TC

OIL SEAL, OUTPUT (Sold with #39 Kit)

Note: (Sold with #39 Kit)

$

$

Not available

43

Ariens T6203-9U-088

KIT - GEAR, HARD TURNED

Note: (Includes #14 & #36)

$

$

Not available
