996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Floor Panel And Shields Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

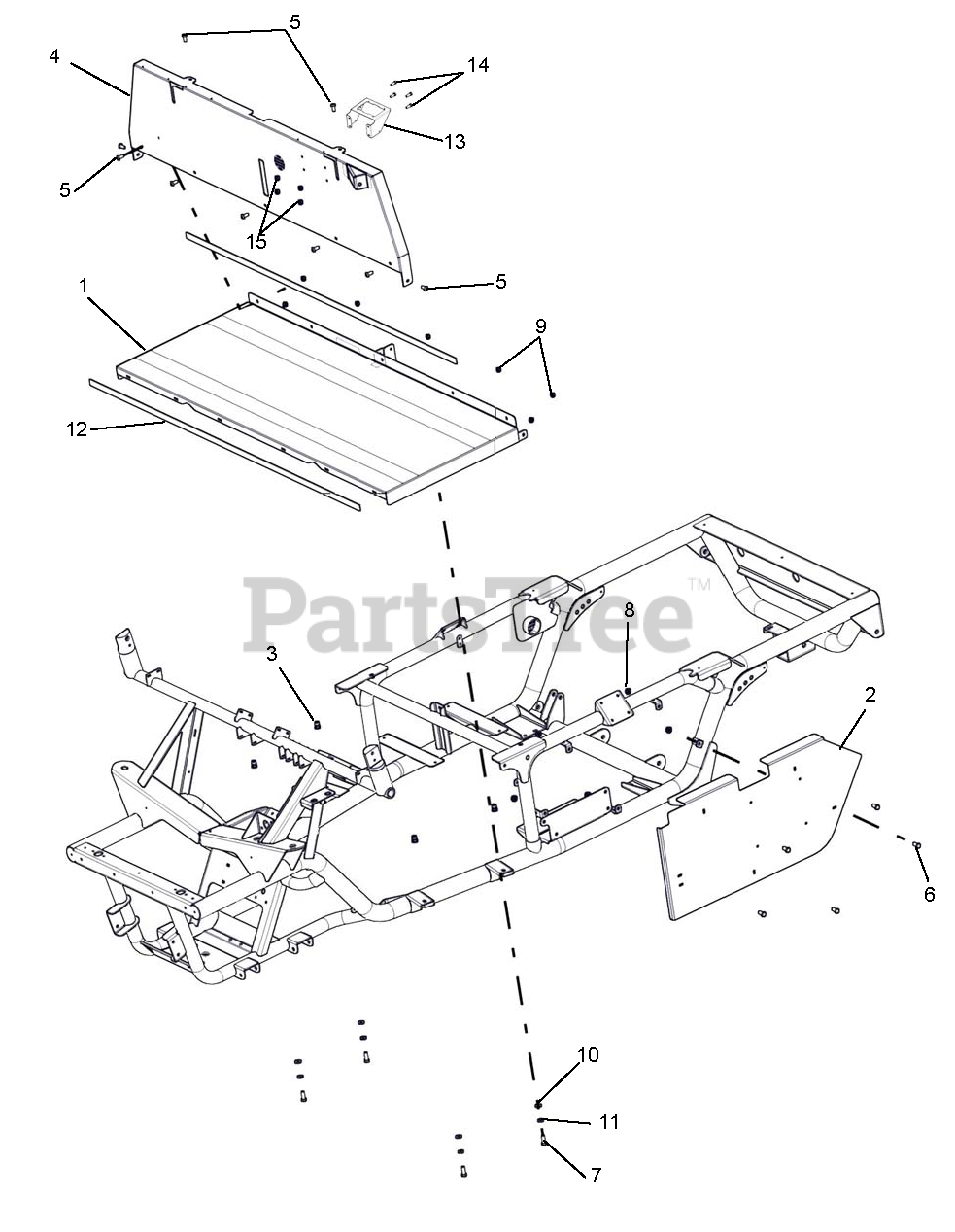

Floor Panel And Shields Parts Diagram

  • Title

1

Ariens 04259651

WLDT-FLOOR

$

$

Not available

2

Ariens T700-145D

SIDE PANEL, WIDE

$

$

Not available

3

Ariens 06500638

NUTZERT, 5/16-18 X .667 HEX Y

$

$

Not available

4

Ariens 04268351

WLDT, KICK PANEL

$

$

Not available

5

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$0.99

$

In Stock, Qty 10

0

6

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

10

Ariens T804-084C

WASHER FLAT 5/16 HARD ASTMF436

$

$

Not available

11

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Ariens T990-227R

FOAM RUBBER 3/16X3/4 THK W/PSA

$

$

Not available

13

Ariens 04451051

BRKT, MODULE EPA FUSE/RELAY

$

$

Not available

14

Ariens T801-180C

TTHMS 1/4-20X3/4 ZNYCR

$

$

Not available

15

Ariens T803-293C

NUT HEX FLG TL 1/4-20 ZNYCR

$

$

Not available

16

Ariens 00181143

CABLE, CHOKE 84.0"

Note: (Not Shown)

$52.99

$

Usually ships in 4-12 days

0
