996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Electrical Wiring Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

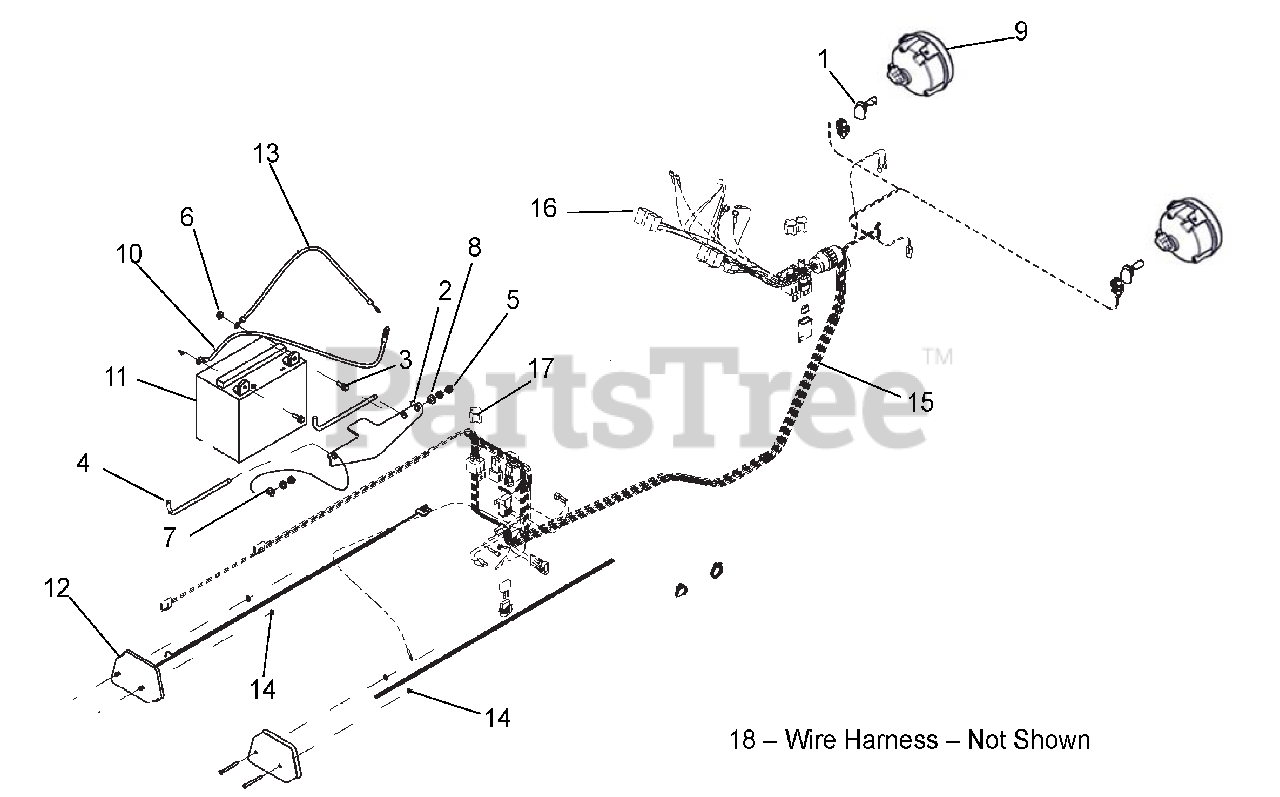

Electrical Wiring Parts Diagram

  • Title

1

HEADLIGHT BULB 37.5 WATT 894

$

$

Not available

2

Ariens T700-456D

HOLDOWN, BATTERY ST

$

$

Not available

3

Ariens 06006127

SCR-HEX-FLNG .25-20 X .625 G2

$

$

Not available

4

Ariens T802-793C

SP HOOK 5/16-18X9X3 THREAD

$

$

Not available

5

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 04090600

HEADLIGHT, ROUND

$

$

Not available

10

Ariens T833-256C

BATTERY CABLE POSITIVE 15 INCH

$

$

Not available

11

BATTERY

Note: (BUY LOCALLY BCI Group U1/U1R, Min. 300CA)

$

$

Not available

12

Ariens 04237900

TAIL LIGHT, LED

$103.99

$

Usually ships in 4-12 days

0

13

Ariens T833-303C

20" 6GA NEGATIVE BLACK CABLE

$

$

Not available

14

Ariens T840-105C

PUSH RETAINERS 4 NON-THRD SHFT

$

$

Not available

15

Ariens 04237600

HARNESS, MAIN

$

$

Not available

16

Ariens 04237701

HARNESS, SUB DASH

$

$

Not available

17

Ariens 00102770

RELAY, ISO MINI ELEC.

$21.99

$

Usually ships in 4-12 days

0

18

Ariens 04320101

HARNESS,SUB ENGINE KILL

Note: (Not Shown)

$

$

Not available

19

Ariens 04438100

FUSE,10 AMP MINI-ATC

Note: (600/601 Series) (Not Shown)

$4.99

$

Usually ships in 4-12 days

0

20

Ariens 04438300

FUSE,20 AMP MINI ATC

Note: (600/601 Series) (Not Shown)

$

$

Not available

21

Ariens 04504100

FUSE,30 AMP MINI-ATC

Note: (600/601 Series) (Not Shown)

$

$

Not available

22

Ariens 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: (600/601 Series) (Not Shown)

$19.99

$

In Stock, only 1 left!

0

23

Ariens 04504200

COVER, HARNESS FUSE/RELAY MOD

Note: (601 Series) (Not Shown)

$28.99

$

Usually ships in 4-12 days

0

24

Ariens 03653300

MODULE - VOLTAGE SENSOR

Note: (700/701 Series) (Not Shown)

$62.99

$

Usually ships in 4-12 days

0

25

Ariens 00102770

RELAY, ISO MINI ELEC.

Note: (100/100 Series) (Not Shown)

$21.99

$

Usually ships in 4-12 days

0
