996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Bench Seat Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

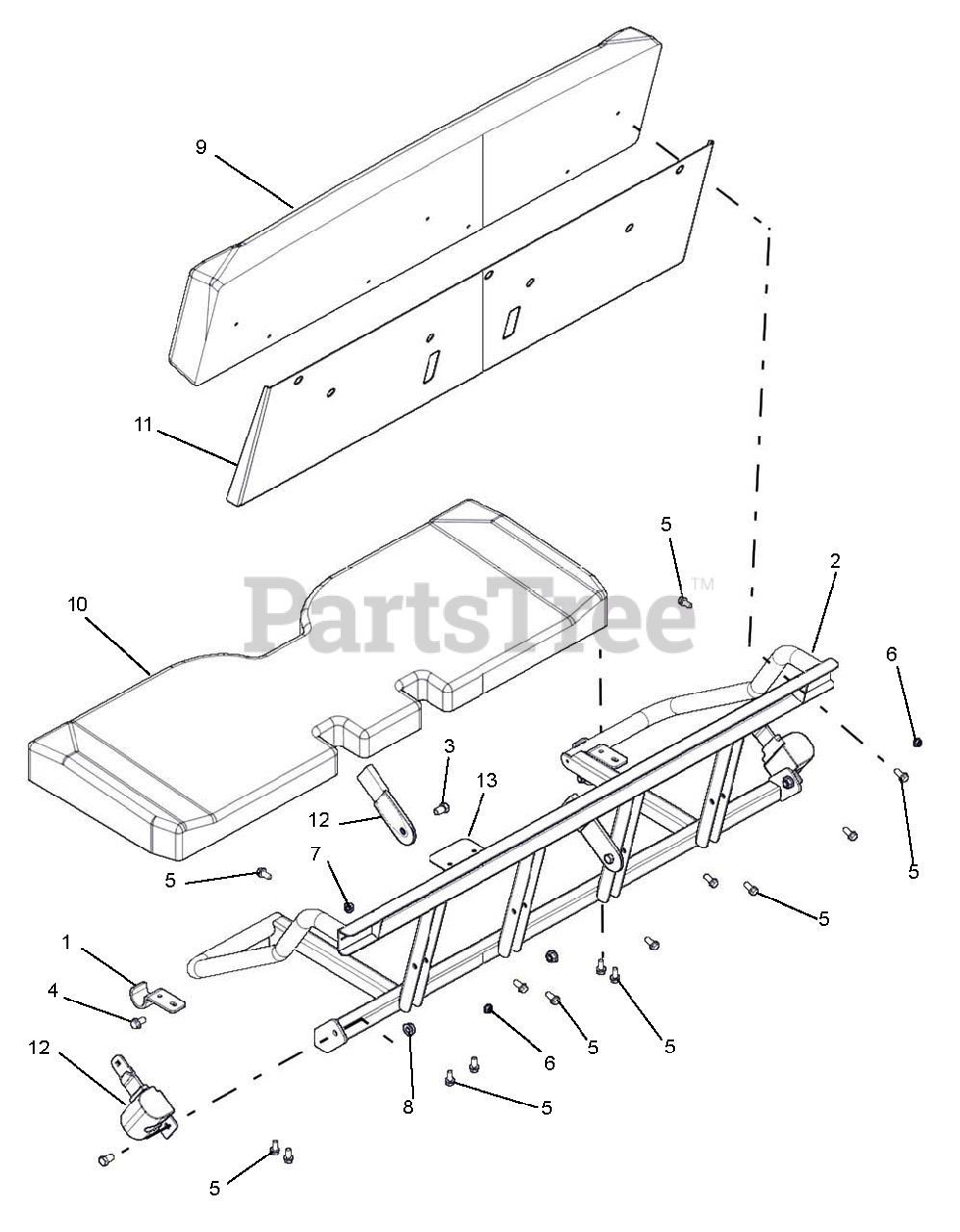

Bench Seat Parts Diagram

  • Title

1

Ariens T700-389D

SEAT PIVOT PLATE

$

$

Not available

2

Ariens 04054351

SEAT FRAME, TREKER

$

$

Not available

3

Ariens 05958700

@BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

4

Ariens T802-185C

HFSS 3/8-16X3/4 LG

$

$

Not available

5

Ariens 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 5

0

6

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$2.99

$

In Stock, Qty 12

0

9

Ariens 04313400

SEAT BACK, BENCH

$

$

Not available

10

Ariens 04265200

SEAT BOTTOM

$

$

Not available

11

Ariens 04214851

SEAT BACK PANEL, BLACK

$

$

Not available

12

Ariens 00181572

ASSY, SEAT BELT

$107.99

$

Usually ships in 4-12 days

0

13

Ariens 04247151

SEAT BOTTOM PLATE

$

$

Not available
