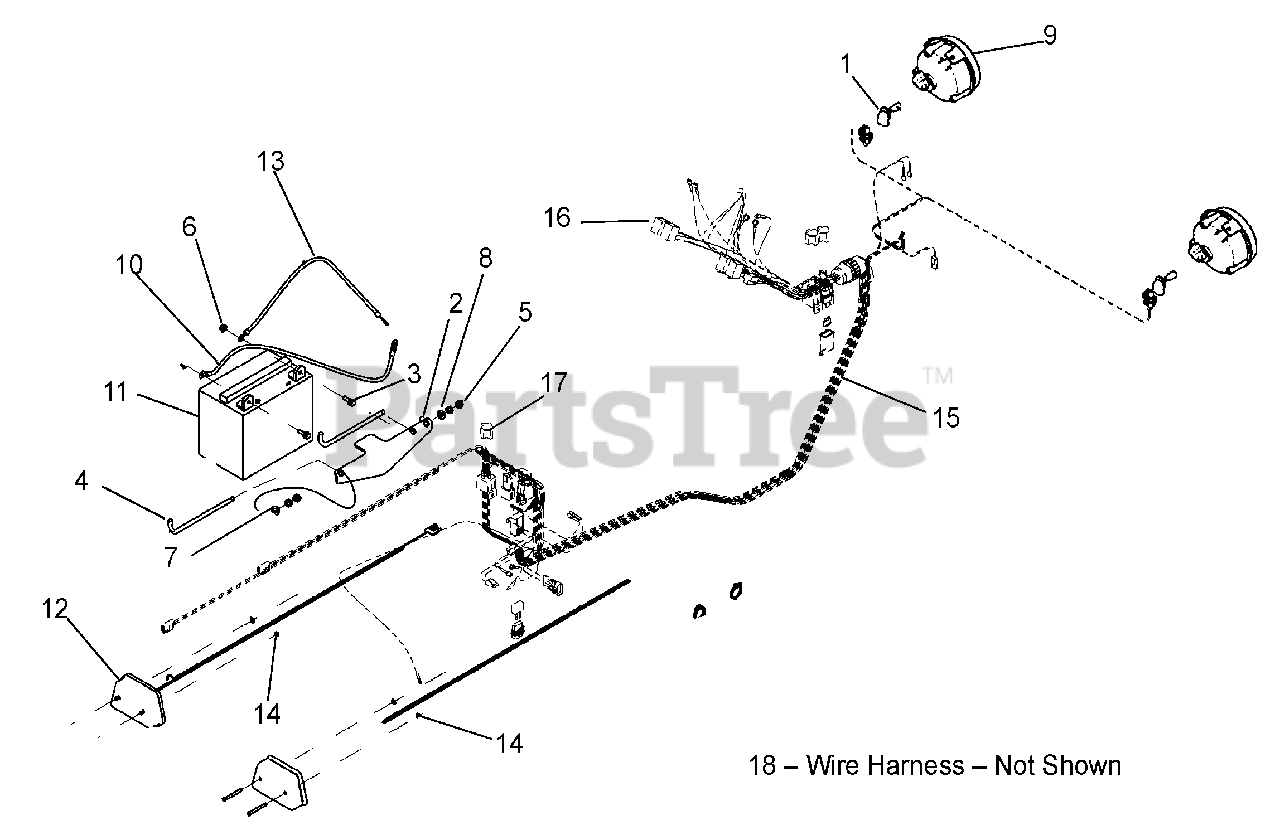

996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Electrical Wiring Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

Electrical Wiring Parts Diagram

  • Title
1

Gravely N/A

HEADLIGHT BULB 37.5 WATT 894

$

$

Currently unavailable

2

Gravely T700-456D

HOLDOWN, BATTERY ST

$

$

Not available

3

Gravely 06006127

SCREW, HEX FLANGE .25-20 X .625

$

$

Not available

4

Gravely T802-793C

SP HOOK 5/16-18 X 9 X 3 THREAD

$

$

Not available

5

Gravely 06529200

NUT, HEX 5/16-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

6

Gravely 06543500

NUT, HEX FLANGE T-LOCK 1/4-20 YLW
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06435800

WASHER, FLAT STEEL .312 X .734 X .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06308600

WASHER, LOCK .31 X .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 04090600

HEADLIGHT, ROUND

$

$

Not available

10

Gravely T833-256C

BATTERY CABLE POSITIVE 15 INCH

$

$

Not available

11

Gravely N/A

BATTERY (BUY LOCALLY BCI Group U1/U1R, Min. 300CA)

Note: (BUY LOCALLY BCI Group U1/U1R, Min. 300CA)

$

$

Currently unavailable

12

Gravely 04237900

TAIL LIGHT, LED

$103.99

$

Usually ships in 4-12 days

0

13

Gravely T833-303C

20" 6GA NEGATIVE BLACK CABLE

$

$

Not available

14

Gravely T840-105C

PUSH RETAINERS 4 NON-THRD SHFT

$

$

Not available

15

Gravely 04237600

WIRE HARNESS, MAIN

$

$

Not available

16

Gravely 04237701

WIRE HARNESS, SUB DASH

$

$

Not available

17

Gravely 00102770

RELAY, ISO MINI ELEC.

$21.99

$

Usually ships in 4-12 days

0

18

Gravely 04320101

HARNESS, SUB ENGINE KILL (Not Shown)

Note: (Not Shown)

$

$

Not available

19

Gravely 04438100

FUSE, 10 AMP MINI-ATC (600/601 Series) (Not Shown)

Note: (600/601 Series) (Not Shown)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 04438300

FUSE, 20 AMP MINI-ATC (600/601 Series) (Not Shown)

Note: (600/601 Series) (Not Shown)

$

$

Not available

21

Gravely 04504100

FUSE, 30 AMP MINI-ATC (600/601 Series) (Not Shown)

Note: (600/601 Series) (Not Shown)

$

$

Not available

22

Gravely 04438400

RELAY, MICRO5 TERMINAL WITH DIODES (600/601 Series) (Not Shown)

Note: (600/601 Series) (Not Shown)

$19.99

$

In Stock, only 1 left!

0

23

Gravely 04504200

COVER, HARNESS FUSE/RELAY MODULE (601 Series) (Not Shown)

Note: (601 Series) (Not Shown)

$28.99

$

Usually ships in 4-12 days

0

24

Gravely 03653300

MODULE, VOLTAGE SENSOR (700/701 Series) (Not Shown)

Note: (700/701 Series) (Not Shown)

$62.99

$

Usually ships in 4-12 days

0

25

Gravely 00102770

RELAY, ISO MINI ELECTRIC (100/100 Series) (Not Shown)

Note: (100/100 Series) (Not Shown)

$21.99

$

Usually ships in 4-12 days

0
