996146 (440 RT) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 020000 & Above) Transfer Case Components Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

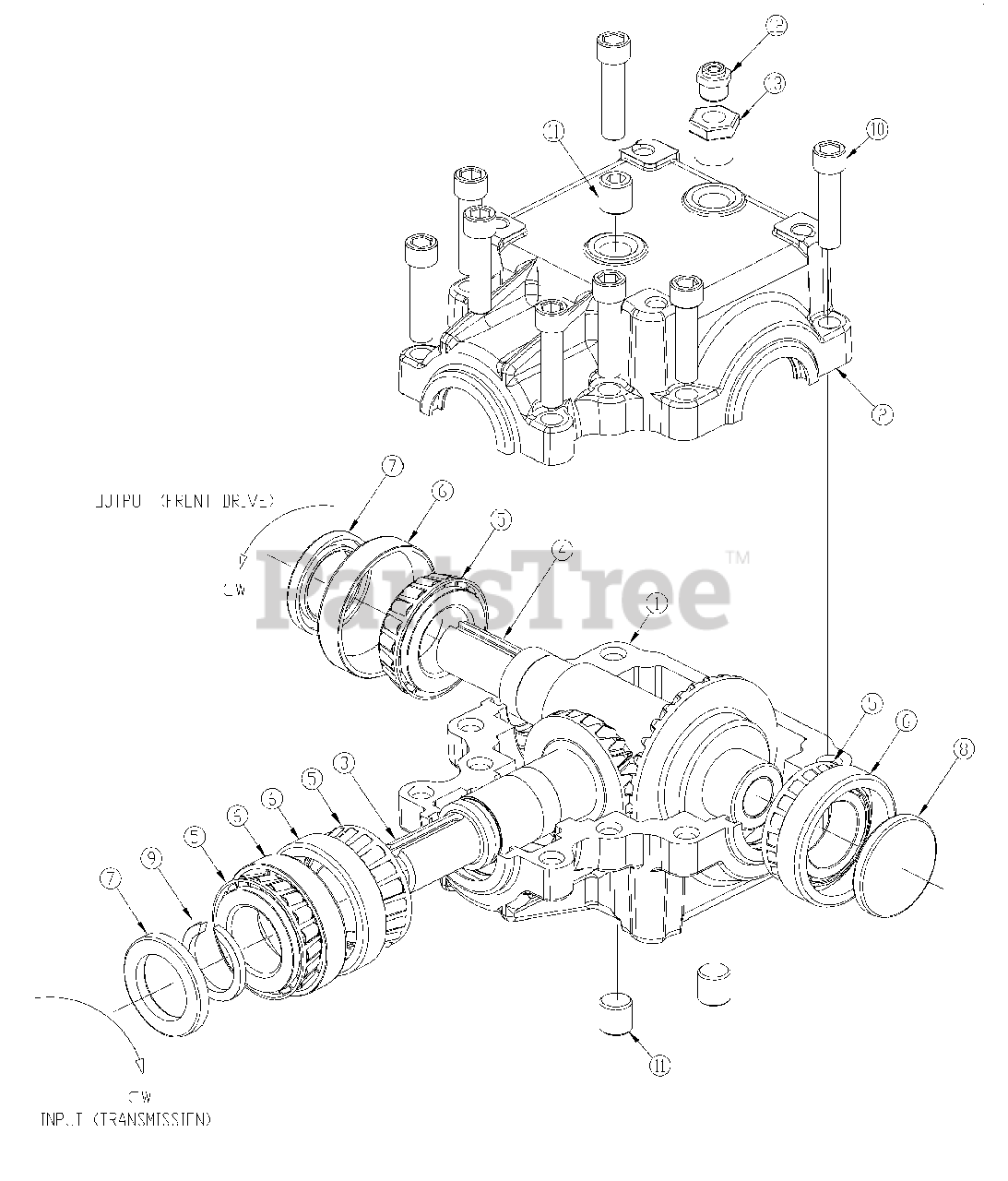

Transfer Case Components Parts Diagram

  • Title

1

Gravely T826-417C

GBOX MODEL R100 1.5TO1 RATIO

$

$

Not available

1

R100-003M-A0427

HOUSING, R100 MACHINED TAP STD

$

$

Not available

2

R100-004M-A0428

HOUSING, R100 MACHINED THRU STD

$

$

Not available

3

R100-8B00-A0471

STUB SHAFT/GEAR ASSEMBLY

$

$

Not available

4

R100-8B00-A0473

SUPERIOR CROSS SHAFT/GEAR ASSEMBLY

$

$

Not available

5

244643

BEARING, CONE1.00VN-L44643

$

$

Not available

6

244610

BEARING, CUP 1.98VN-L44610

$

$

Not available

7

109843

SEAL, 1-1.5-.187(R)TC

Note: (R)TC

$

$

Not available

8

100301

CAP, CP-1.5 -.187D#7647

$

$

Not available

9

203293

RTN RING EXT 1.000 SHAFT

$

$

Not available

10

103125

BOLT 5/16-18 X 1.25 SHCS

$

$

Not available

11

200300

PLUG 1/4-18NPT SCHD

$

$

Not available

12

2003PR

PLUG VENT 5PSIV/N005677

$

$

Not available

13

2003VB

BUSHING 1/4 NPT X 1/8 NPT

$

$

Not available
