996146 (440 RT) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 020000 & Above) Transfer Case and Rear Driveshaft Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

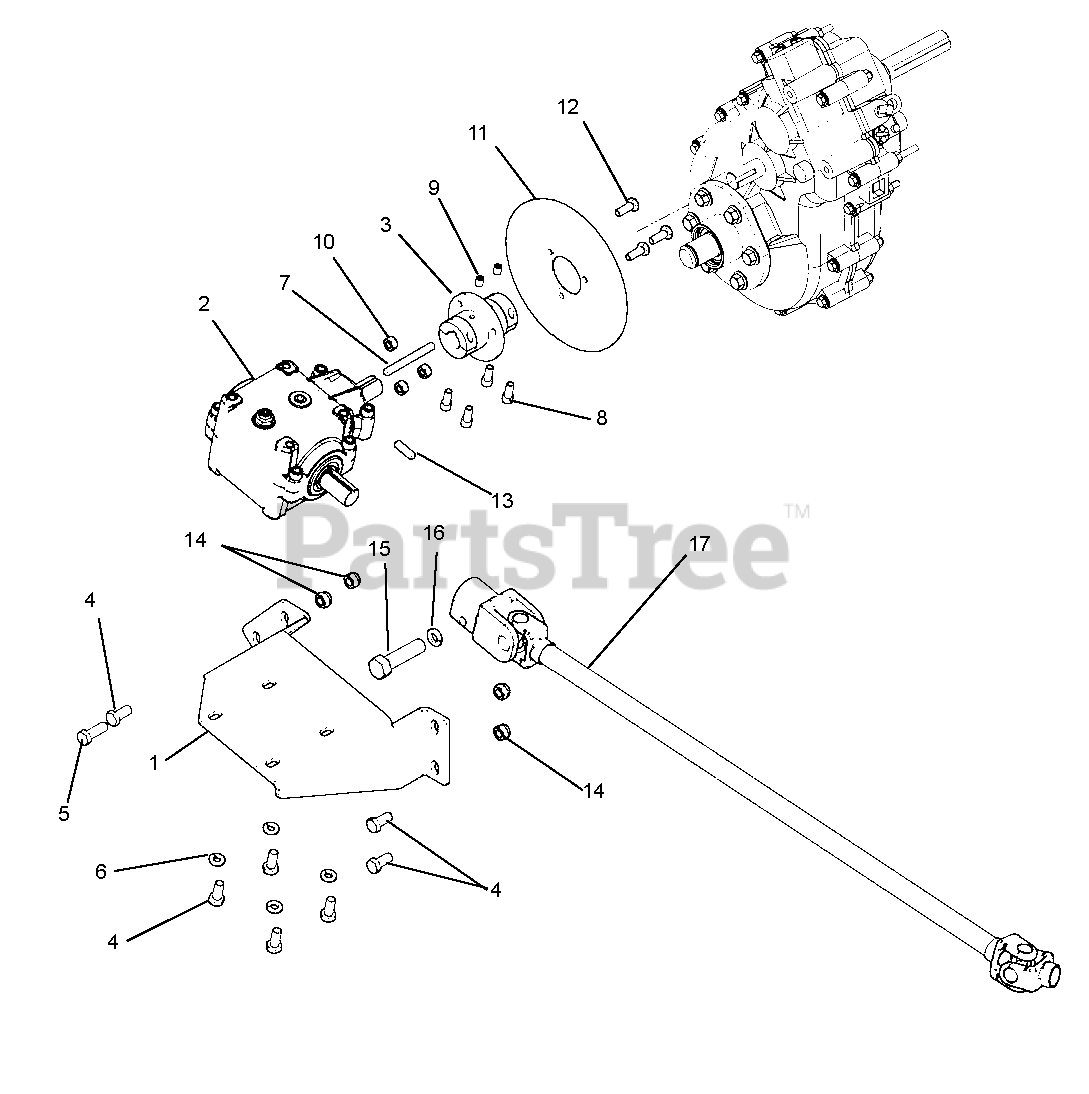

Transfer Case and Rear Driveshaft Parts Diagram

  • Title

1

Gravely 04228651

GEAR BOX MNT PLATE

$

$

Not available

2

Gravely T826-417C

GBOX MODEL R100 1.5 TO 1 RATIO

$

$

Not available

3

Gravely 04054400

CLAMP COUPLING

$

$

Not available

4

Gravely 05947000

BOLT, HEX .31-18 .75 G5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05946900

BOLT, HEX .31-18 1.00 G5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06308600

WASHER, LOCK .31 X. 078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00130969

KEY .188 X .188 X 2.50 SQ

$3.49

$

Usually ships in 4-12 days

0

8

Gravely T802-774C

HSHCS 1/4-28 X 5/8

$

$

Not available

9

Gravely 06006000

SET SCREW, .25-28 X .375 ALHD CUP

$

$

Not available

10

Gravely 06529700

NUT, LOCK CENTER .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 04228200

DISK, PARK BRAKE

$

$

Not available

12

Gravely 05946800

BOLT, HEX .25-20 X .75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely T800-296C

KEY, 3/16 X 7/8

$

$

Not available

14

Gravely 06530200

NUT, HEX NYLOCK .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05963300

BOLT, HEX .38-16 X 2.0 GR5Y REG TWZCWZV
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

16

Gravely 06308800

WASHER, LOCK .38 X .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

17

Gravely T826-419C

REAR HALF DRIVELINE

$678.99

$

Usually ships in 4-12 days

0
