996144 (440 C) - Gravely Treker Utility Vehicle, 4x4, Camo (SN: 000101 - 019999) Fuel System Components Parts Diagram

Treker Utility Vehicle, 4x4, Camo

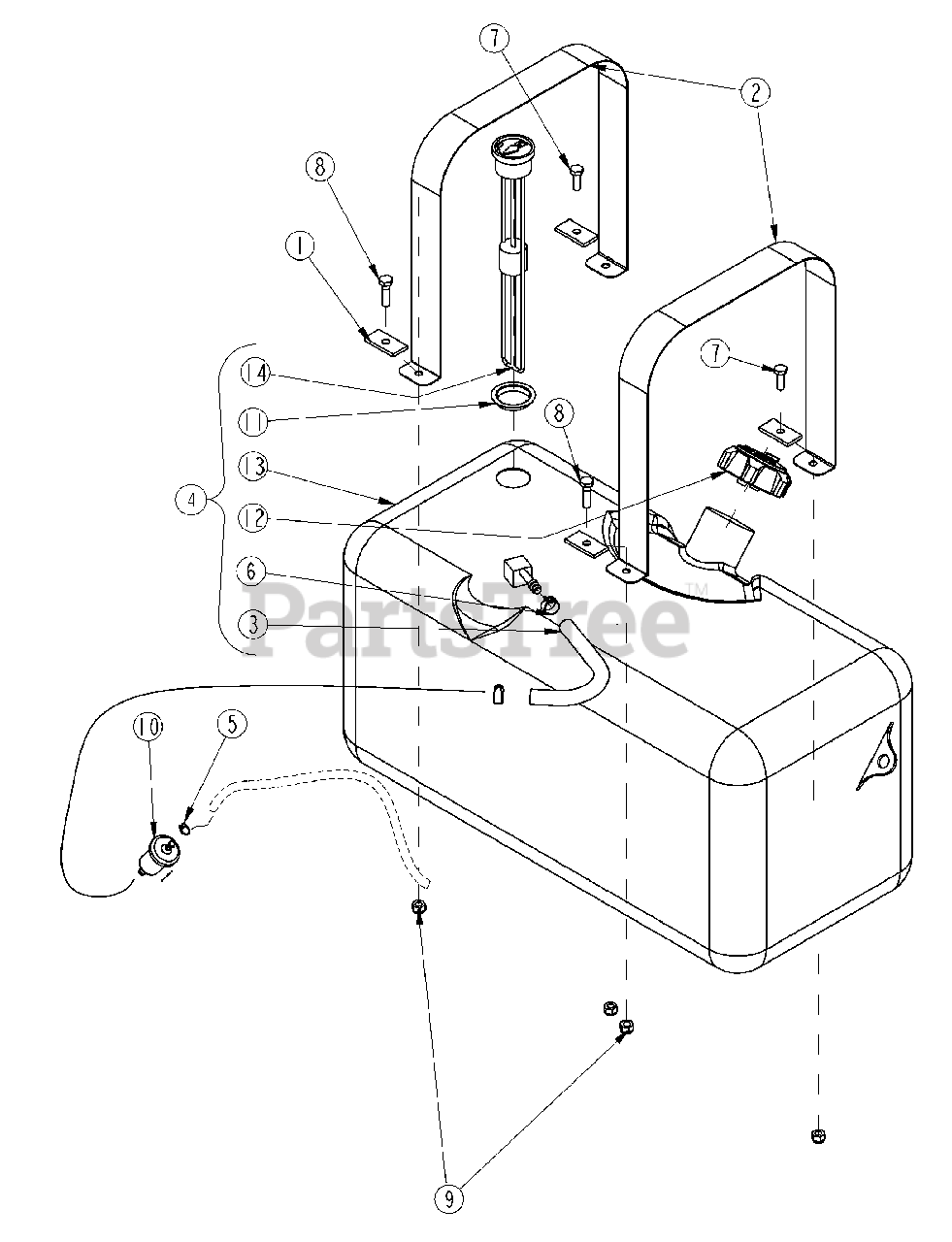

Fuel System Components Parts Diagram

  • Title

1

700-017D

GAS TANK MOUNT SPACER

$

$

Not available

2

700-175D

GAS TANK STRAP, WIDE

$

$

Not available

3

700-213D

FUEL LINE 9" ST MODEL

$

$

Not available

4

700-368S

ST FUEL TANK ASSY

$

$

Not available

5

800-007C

PINCH CLAMP HONDA .32OD HOSE

$

$

Not available

6

800-356C

CLAMP PINCH FOR .50 OD HOSE

$

$

Not available

7

802-004C

HHCS 1/4-20X3/4 GR5

$

$

Not available

8

802-005C

HHCS 1/4-20X1 GR5

$

$

Not available

9

Gravely 803-255C

NUT HEX NYLOCK 1/4-20

$

$

Not available

10

831-035C

HONDA FUEL FILTER

$

$

Not available

11

839-297C

GROMMET FOR FUEL GAUGE

$

$

Not available

12

839-298C

FUEL CAP TALL

$

$

Not available

13

839-301C

FUEL TANK 8 GALLON ST

$

$

Not available

14

839-302C

FUEL GAUGE

$

$

Not available
