996143 (440 R) - Gravely Treker Utility Vehicle, 4x4, Red (SN: 000101 - 019999) Brake System Rear Parts Diagram

Treker Utility Vehicle, 4x4, Red

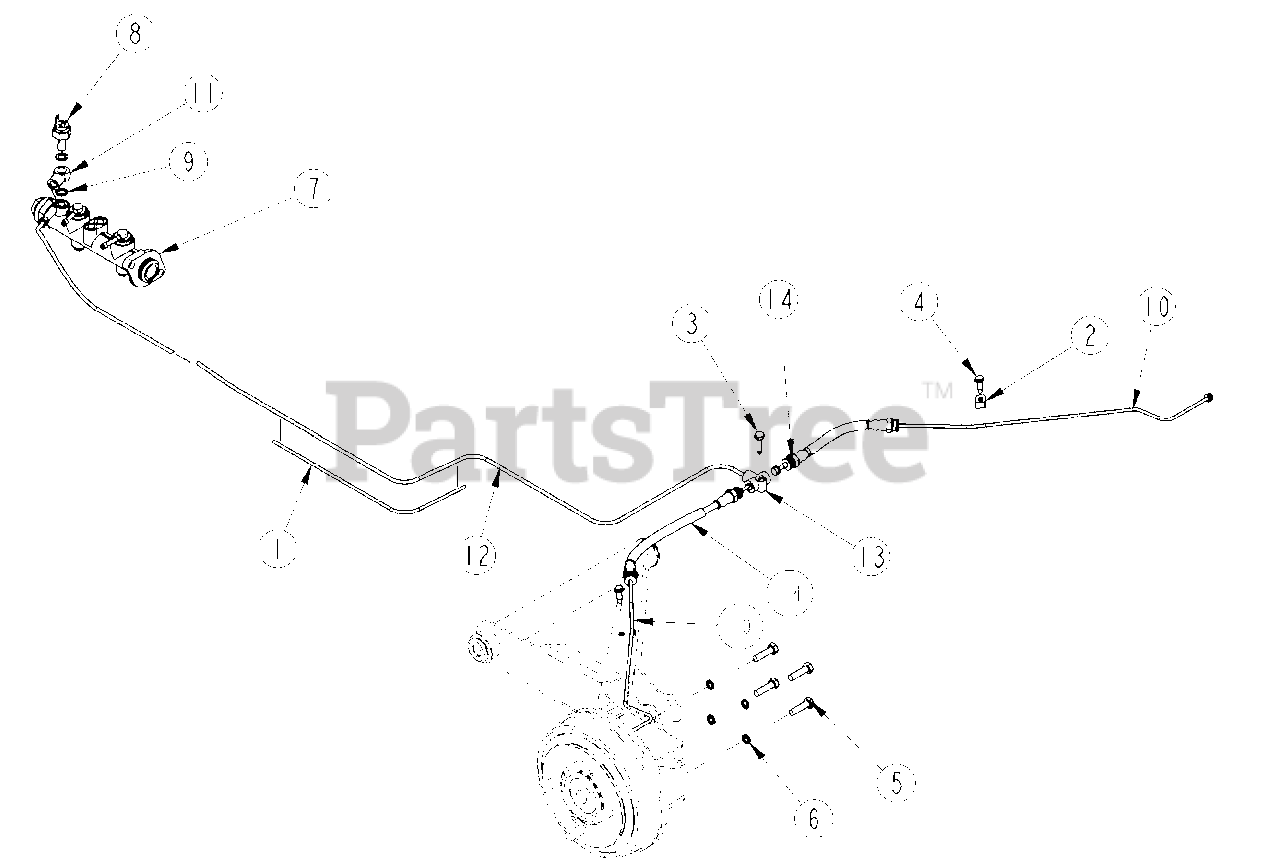

Brake System Rear Parts Diagram

  • Title

1

700-454D

COVER, BRAKE LINE 13.5"

$

$

Not available

2

800-347C

WIRING/TUBE CLIP FOR 1/4 OD

$

$

Not available

3

801-151C

SCR HEX SELF TAP 1/4-20X1TYPEF

$

$

Not available

4

801-174C

HH DRILL SCREW 1/4 X 3/4LG

$

$

Not available

5

802-731C

HHCS M8X1.25X30 GR10.9 ZNYCR

$

$

Not available

6

804-157C

WASHER SPRING LOCK M8 PLT

$

$

Not available

7

815-156C

DUAL MASTER CYLINDER

$

$

Not available

8

815-157C

MASTER CYLINDER PRESS. SWITCH

$

$

Not available

9

815-158C

MSTR CYL CPPR WSHR 16X10X1.5MM

$

$

Not available

10

815-165C

REAR BRAKE LINE 28.3

$

$

Not available

11

815-167C

BULK HEAD FLOW THROUGH

$

$

Not available

12

815-175C

ST STEEL BRAKE LINE

$

$

Not available

13

815-178C

FITTING 3 WAY HYD.

$

$

Not available

14

815-211C

REAR RUBBER BRAKE LINE

$

$

Not available
