996141 (440 C) - Gravely Treker Utility Vehicle, 4x4, Camo (SN: 000101 - 019999) Transaxle Transfer Case and Rear Drive Shaft Parts Diagram

Treker Utility Vehicle, 4x4, Camo

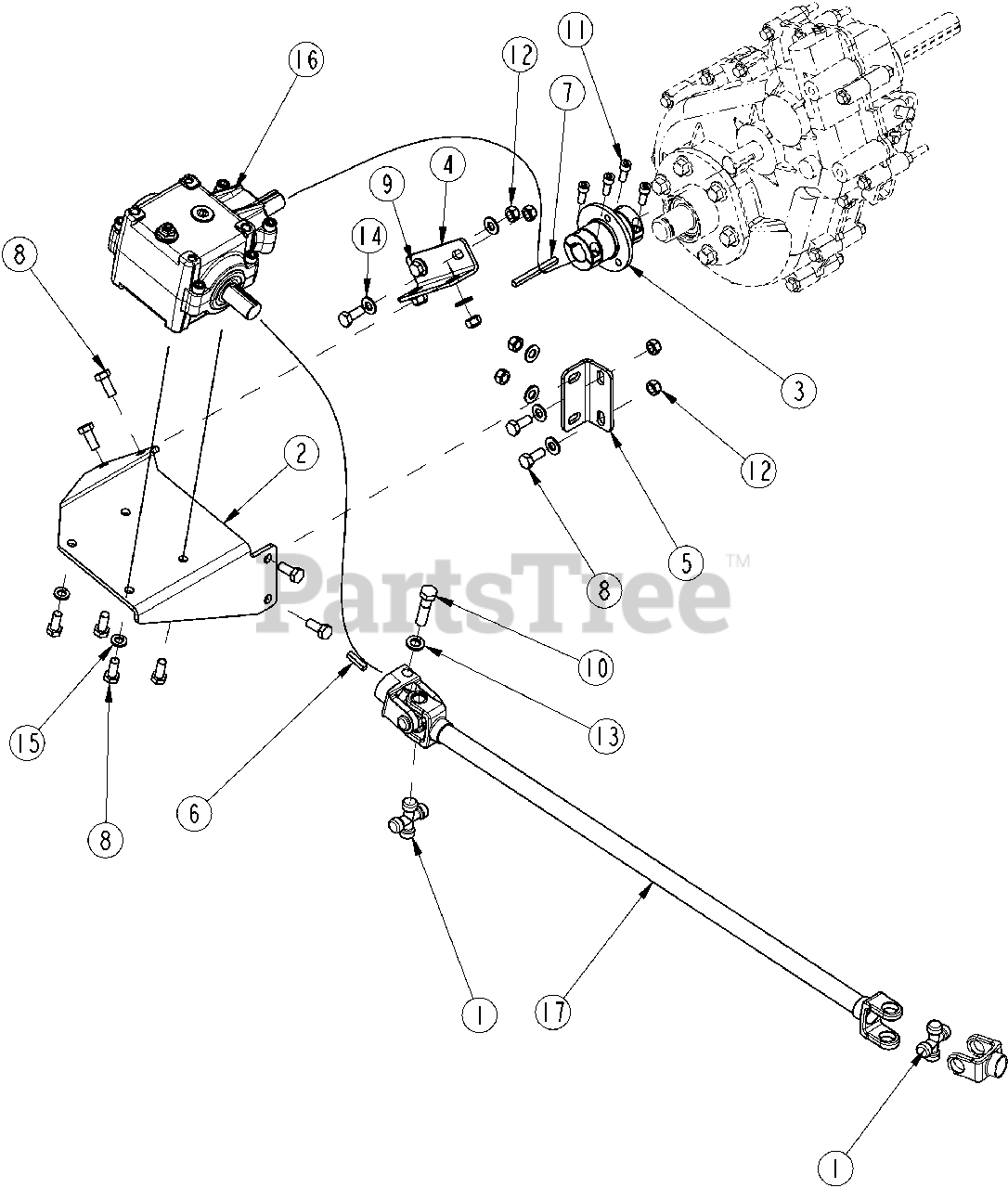

Transaxle Transfer Case and Rear Drive Shaft Parts Diagram

  • Title

1

1-0170NPL

CROSS & BRG KIT

$

$

Not available

2

700-408D

GEAR BOX MNT PLATE

$

$

Not available

3

700-446D

CLAMP COUPLING

$

$

Not available

4

700-447D

MOUNT BRACKET GEARBOX REAR

$

$

Not available

5

700-448D

MOUNT BRACKET GEARBOX FRONT

$

$

Not available

6

800-296C

KEY 3/16 X 7/8

$

$

Not available

7

800-366C

KEY .187 X .187 X 2.25 LG

$

$

Not available

8

Gravely 802-735C

HHCS 5/16-18X3/4 GR5 YELLOW DI

$

$

Not available

9

Gravely 802-738C

HHCS 5/16-18X1 GR5 YELLOW DIE

$

$

Not available

10

802-758C

HHCS 3/8-24X1 1/2 GR8 PLT

$

$

Not available

11

802-774C

HSHCS 1/4-28X5/8

$

$

Not available

12

Gravely 803-084C

NUT HEX NYLOCK 5/16-18 PLT

$

$

Not available

13

804-013C

WASHER LOCK SPRING 3/8 PLT

$

$

Not available

14

804-084C

WASHER FLAT 5/16 HARD ASTMF436

$

$

Not available

15

804-201C

WASHER LOCK SPRING 5/16 YELLOW

$

$

Not available

16

826-417C

GBOX MODEL R100 1.5TO1 RATIO

$

$

Not available

17

826-419C

REAR HALF DRIVELINE 4X4 ST

$

$

Not available
