996141 (440 C) - Gravely Treker Utility Vehicle, 4x4, Camo (SN: 000101 - 019999) Electrical Wiring Parts Diagram

Treker Utility Vehicle, 4x4, Camo

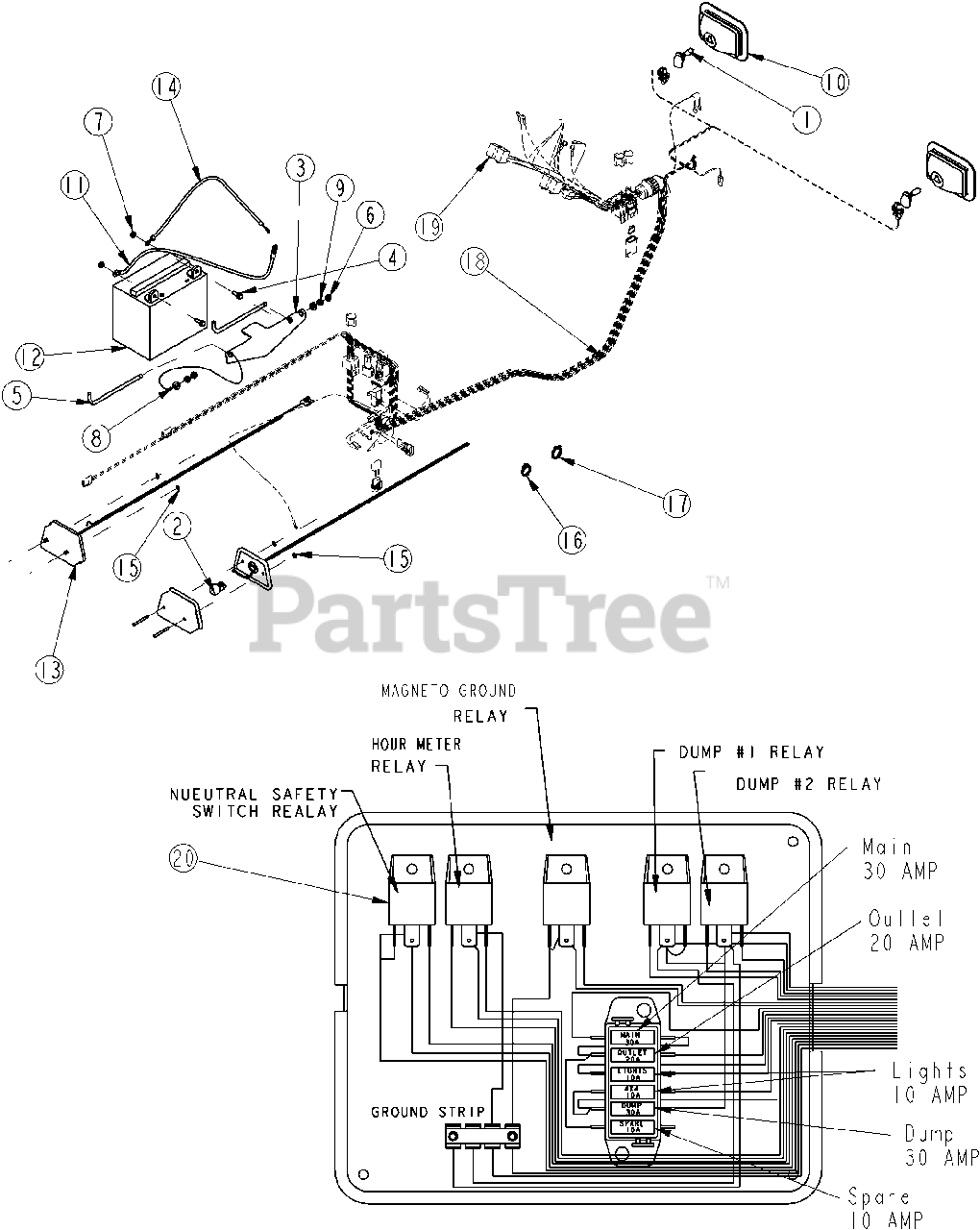

Electrical Wiring Parts Diagram

  • Title

1

Gravely N/A

HEADLIGHT BULB 37.5 WATT 894

$

$

Currently unavailable

2

Gravely N/A

TAILLIGHT BULB 1157 1157

$

$

Currently unavailable

3

700-456D

HOLDOWN, BATTERY ST

$

$

Not available

4

802-257C

HFSS 1/4-20X3/4 GR5

$

$

Not available

5

802-793C

SP HOOK 5/16-18X9X3 THREAD

$

$

Not available

6

Gravely 06529200

NUT, HEX 5/16-18 PLT
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

7

803-293C

NUT HEX FLNG T-LOCK 1/4-20 YLW

$

$

Not available

8

03400215

WASHER, FLAT 5/16 SAE

$

$

Not available

9

Gravely 06308600

WASHER, LOCK 5/16
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

833-255C

HEADLIGHT W/TRAP LENS 37.5WATT

$

$

Not available

11

833-256C

BATTERY CABLE POSITIVE 15 INCH

$

$

Not available

12

Gravely N/A

BATTERY BUY LOCALLY BCI Group U1/U1R, Min. 300CA

$

$

Currently unavailable

13

833-337C

TAIL LIGHT WITH STANDARD LEAD

$

$

Not available

14

833-303C

20" 6GA NEGATIVE BLACK CABLE

$

$

Not available

15

840-105C

PUSH RETAINERS 4 NON-THRD SHFT

$

$

Not available

16

800-060C

CABLE TIE .19X14.25 3DIA 50LB

$

$

Not available

17

800-303C

CABLE TIE 2 DIA MIN - BLK

$

$

Not available

18

833-372C

WIRING HARNESS, MAIN ST

$

$

Not available

19

833-373C

WIRE HARNESS INSTRUMENT PANEL

$

$

Not available

20

Gravely 0-332

-209-150 RELAY BOSCH

$

$

Not available
