996140 (440 R) - Gravely Treker Utility Vehicle, 4x4, Red (SN: 000101 - 019999) Brake Drum Rear Components Parts Diagram

Treker Utility Vehicle, 4x4, Red

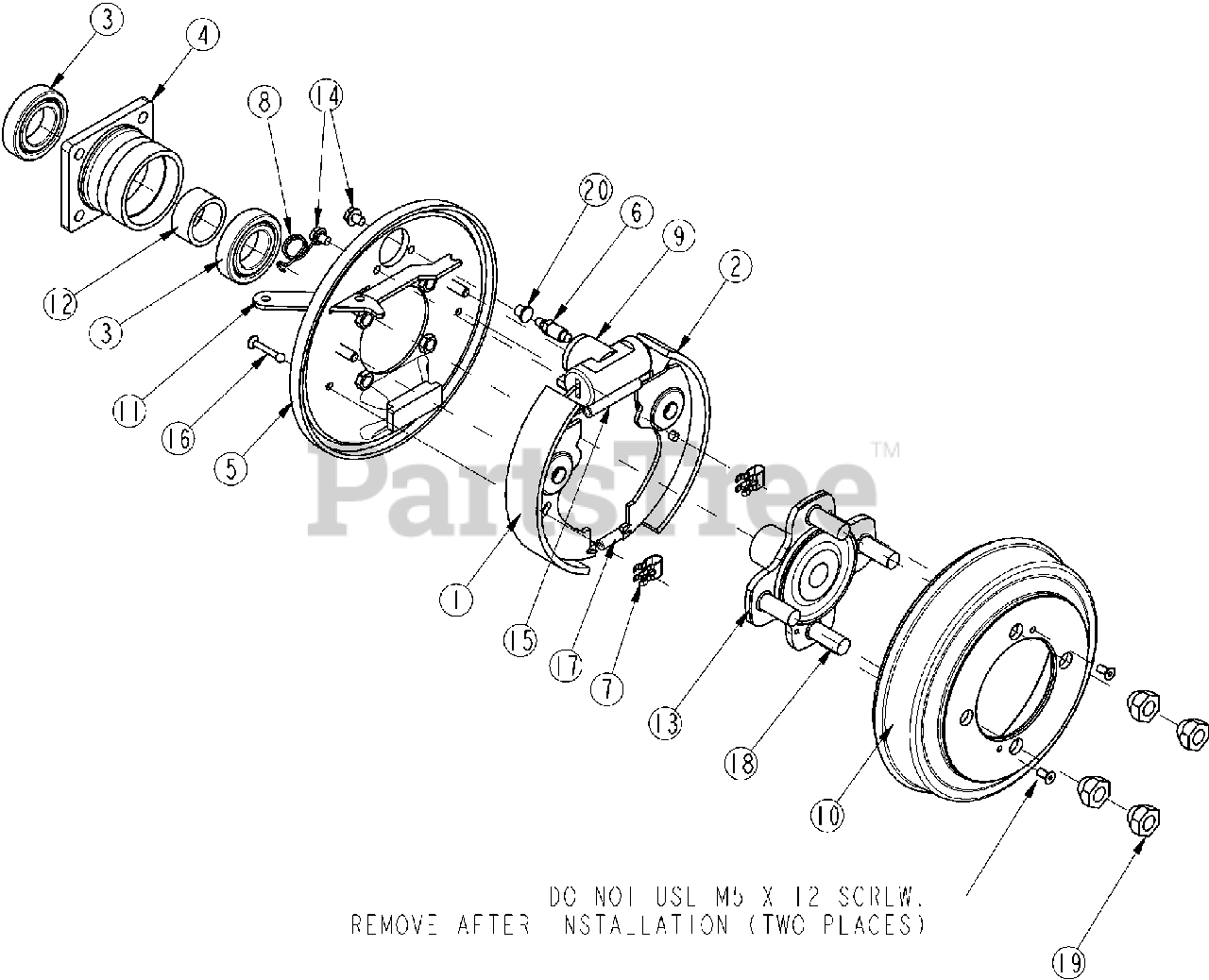

Brake Drum Rear Components Parts Diagram

  • Title

1

F136

LEFT SHOE

$

$

Not available

2

F137

RIGHT SHOE

$

$

Not available

3

F777

BALL BEARING

$

$

Not available

4

F855

BEARING HOLDER HUB

$

$

Not available

5

F179

BRAKE SHOE DISC RH

$

$

Not available

5

F178

BRAKE SHOE DISC LH

$

$

Not available

6

F827

BLEEDER SCREW

$

$

Not available

7

F622

SHOES LOCKING SPRING

$

$

Not available

8

F792

RIGHT SPRING/HAND BRAKE LEVER

$

$

Not available

8

F793

LEFT SPRING/HAND BRAKE LEVER

$

$

Not available

9

F261

HYDRAULIC CYLINDER

$

$

Not available

10

F908

DRUM

$

$

Not available

11

F176

RIGHT LEVERS SET

$

$

Not available

11

F177

LEFT LEVERS SET

$

$

Not available

12

F852

CMX SPACER

$

$

Not available

13

Gravely F175

BRAKE FLANGE HUB W/STUDS

$168.99

$

Usually ships in 4-12 days

0

--

815-145C

RH DRUM ASM 180mm 4 ON 4" BC ITEM 19 NOT INCLUDED

$

$

Not available

14

F258

SCREW M6 x 40

$

$

Not available

--

815-146C

LH DRUM ASM 180mm 4 ON 4" BC ITEM 19 NOT INCLUDED

$

$

Not available

15

F610

UPPER RETURN SPRING

$

$

Not available

16

F621

SPRING PIN

$

$

Not available

17

F609

LOWER RETURN SPRING

$

$

Not available

18

F909

STUD

$

$

Not available

19

803-329C

NUT, LUG 1/2-20 x 60-Degree

$

$

Not available

20

F828

BOOT

$

$

Not available
