996126 - Ariens Contractor 2WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Trailing Arm Parts Diagram

Contractor 2WD Utility Vehicle, Subaru EH65

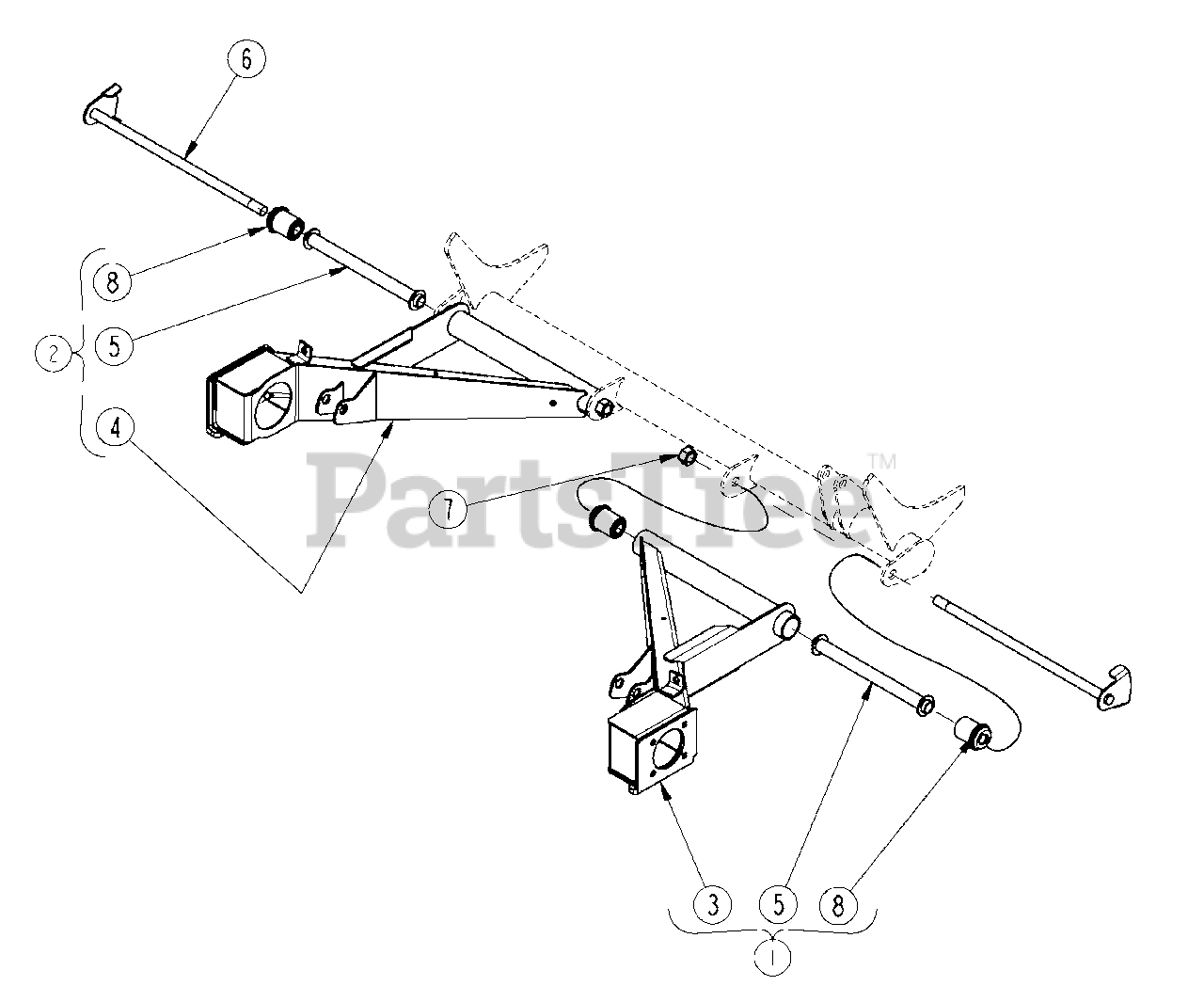

Trailing Arm Parts Diagram

  • Title
1

Ariens T700-256S

TRAILING ARM RH ASSY

$

$

Not available

2

Ariens T700-257S

TRAILING ARM LH ASSY

$

$

Not available

3

Ariens T700-262H

TRAILING ARM RH WELDMENT

$

$

Not available

4

Ariens T700-263H

TRAILING ARM LH WELDMENT

$

$

Not available

5

Ariens T700-371H

CENTER PIVOT TUBE WELDMENT

$

$

Not available

6

Ariens T700-422H

TRAILING ARM PIVOT BOLT WLDMNT

$

$

Not available

7

Ariens 06549100

NUT-LK-TOP .563-12 GR5 YWZC

$

$

Not available

8

Ariens T817-517C

BUSHING IDLER ARM RUBBER

$

$

Not available
