996126 - Ariens Contractor 2WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Front Lower Control Arm Parts Diagram

Contractor 2WD Utility Vehicle, Subaru EH65

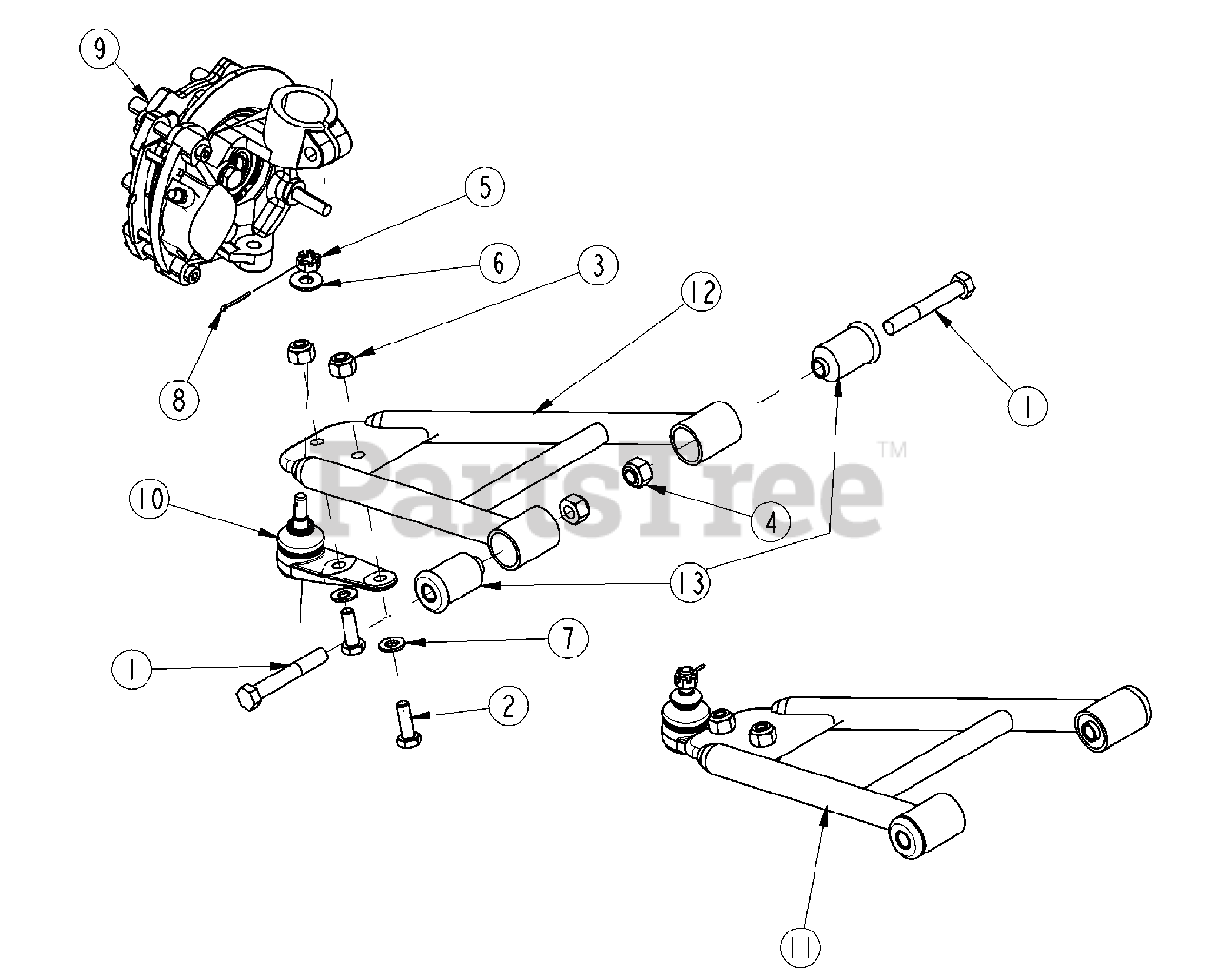

Front Lower Control Arm Parts Diagram

  • Title

1

Ariens T802-486C

HHCS M12X1.75X80 GR8.8 PLT

$

$

Not available

2

Ariens 00961307

BOLT, M10X1.50X30 HEX 8.8 Y

$

$

Not available

3

Ariens 06542400

NUT-LK-NYL M10-1.5 YWZC

$

$

Not available

4

Ariens 06542500

@NUT-LK-NYL M12-1.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 06520001

NUT-HEX-SLOTTED M10-1.25 YWZC

$

$

Not available

6

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06449300

WSHR-FL-STL M10 10.5X20X2 YWZC

$

$

Not available

8

Ariens 06707000

@PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

9

Ariens T815-143C

RH DISC BRAKE ASM 172MM W/JNT

$

$

Not available

Ariens T815-144C

LH DISC BRAKE ASM 172MM W/JNT

$

$

Not available

10

Ariens T840-137C

BALL JOINT BOLT ON SIR

$47.99

$

Usually ships in 4-12 days

0

11

Ariens 04067200

CONTROL ARM ASM, LH

Note: (Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13)

$

$

Not available

Ariens 04067100

CONTROL ARM ASM, RH

Note: (Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13)

$

$

Not available

12

Ariens 04066051

CONTROL ARM WLDT, LH

$240.99

$

Usually ships in 4-12 days

0

Ariens 04067051

CONTROL ARM WLDT, RH

$

$

Not available

13

Ariens T840-229C

BUSHING, A-ARM

$

$

Not available
