996126 - Ariens Contractor 2WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Rear Shock Parts Diagram

Contractor 2WD Utility Vehicle, Subaru EH65

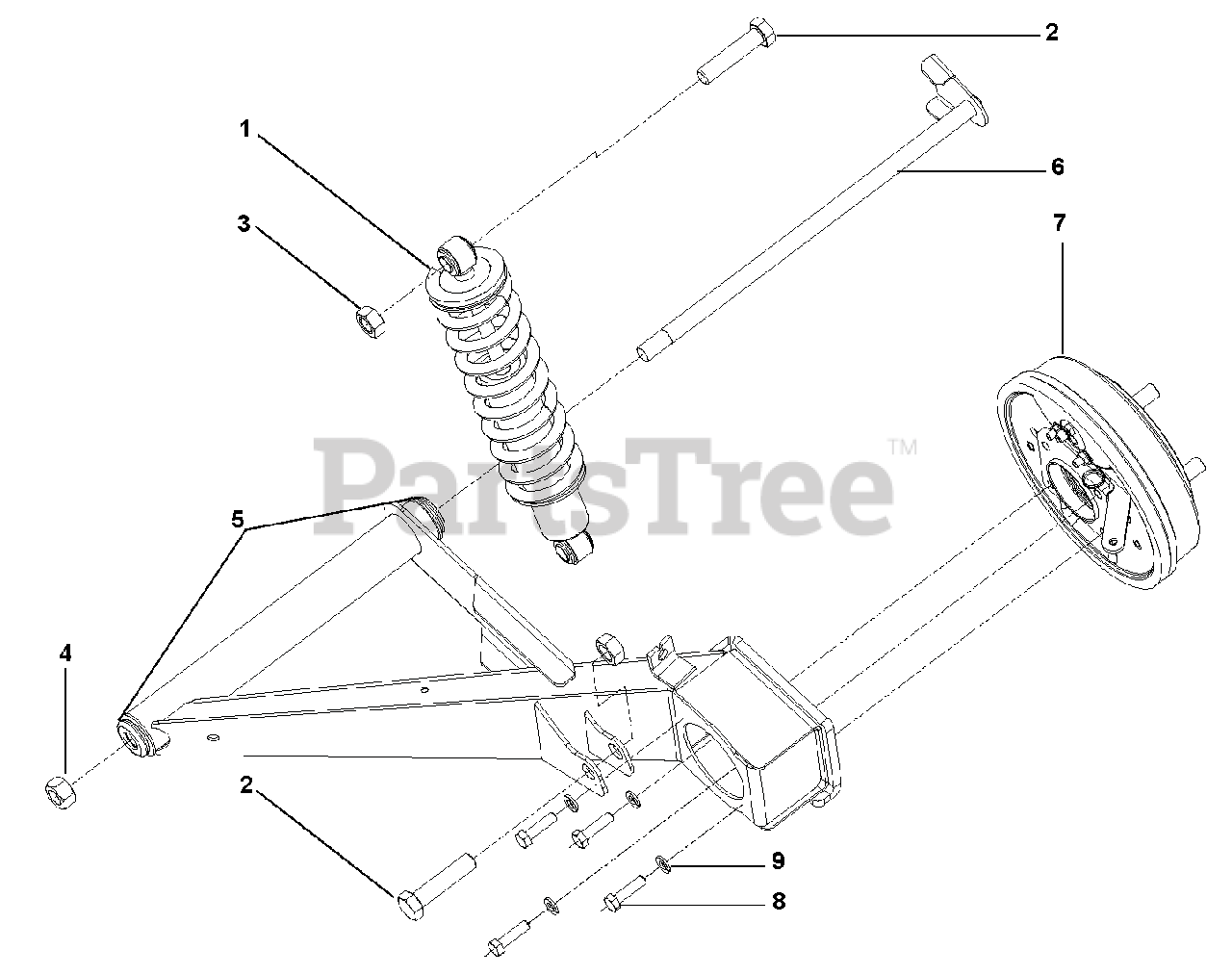

Rear Shock Parts Diagram

  • Title
1

Ariens T840-101C

SHOCK COIL REAR TRUCK

$

$

Not available

2

Ariens T802-751C

HHCS M14X2.00X60 GR8.8

$

$

Not available

3

Ariens T803-334C

NUT HEX NYLOCK M14X2.00

$

$

Not available

4

Ariens 06549100

NUT-LK-TOP .563-12 GR5 YWZC

$

$

Not available

5

Ariens T817-517C

BUSHING IDLER ARM RUBBER

$

$

Not available

6

Ariens T700-371H

CENTER PIVOT TUBE WELDMENT

$

$

Not available

7

Ariens T815-145C

RH DRUM ASM 180MM 4 ON 4" BC

$

$

Not available

Ariens T815-146C

LH DRUM ASM 180MM 4 ON 4" BC

$

$

Not available

8

Ariens T802-731C

HHCS M8X1.25X30 GR10.9 YLW PLT

$

$

Not available

9

Ariens 06318200

WSHR-LK M8 YWZC

$0.99

$

Usually ships in 4-12 days
