996126 - Ariens Contractor 2WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Rear Brake Drum Parts Diagram

Contractor 2WD Utility Vehicle, Subaru EH65

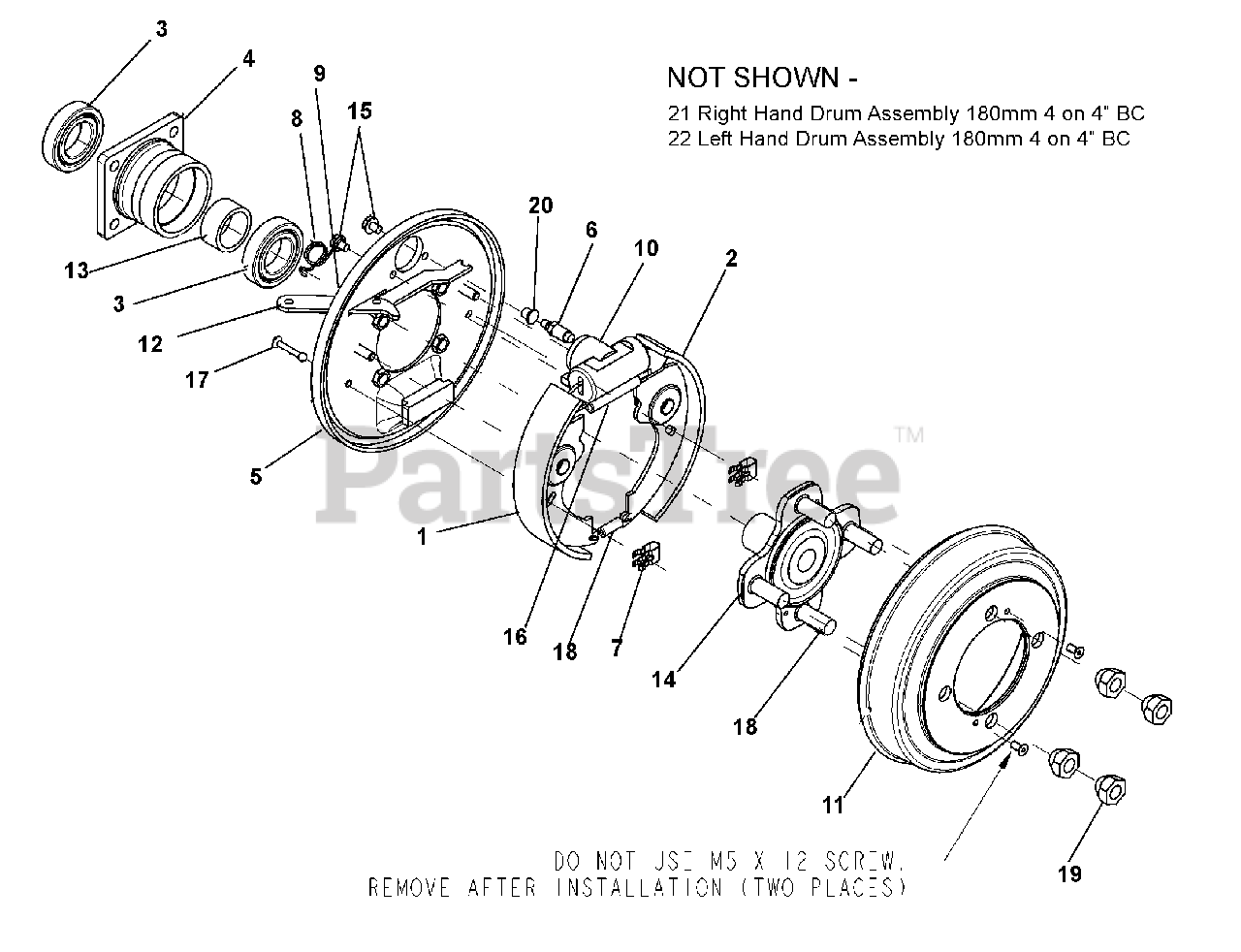

Rear Brake Drum Parts Diagram

  • Title

1

Ariens TF136

CMX LEFT SHOE

$47.99

$

Usually ships in 4-12 days

0

2

Ariens TF137

CMX RIGHT SHOE

$47.99

$

Usually ships in 4-12 days

0

3

Ariens TF777

CMX BALL BEARING

$

$

Not available

4

Ariens TF855

CMX BEARING HOLDER HUB

$

$

Not available

5

Ariens TF179

CMX BRAKE SHOE DISC RH

$

$

Not available

5

Ariens TF178

CMX BRAKE SHOE DISC LH

$

$

Not available

6

Ariens TF827

CMEX BLEEDER SCREW

$

$

Not available

7

Ariens TF622

CMX SHOES LOCKING SPRING

$

$

Not available

8

Ariens TF792

CMX RIGHT SPRING/HAND BRAKE LV

$

$

Not available

9

Ariens TF793

CMX LEFT SPRING/HAND BRAKE LV

$

$

Not available

10

Ariens TF261

CMX HYDRAULIC CYLINDER

$

$

Not available

11

Ariens TF908

CMX DRUM

$

$

Not available

12

Ariens TF176

CMX RIGHT LEVERS SET

$

$

Not available

12

Ariens TF177

CMX LEFT LEVERS SET

$

$

Not available

13

Ariens TF852

CMX SPACER

$

$

Not available

14

Ariens TF175

BRAKE FLANGE HUB W/STUDS

$

$

Not available

15

Ariens TF258

CMX SCREW M6X40

$

$

Not available

16

Ariens TF610

CMX UPPER RETURN SPRING

$

$

Not available

17

Ariens TF621

CMX SPRING PIN

$

$

Not available

18

Ariens TF609

CMX LOWER RETURN SPRING

$

$

Not available

19

Ariens 06553000

NUT, 1/2-20 LUG, GRADE 5
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

20

BLEEDER CAP

$

$

Not available

21

Ariens T815-145C

RH DRUM ASM 180MM 4 ON 4" BC

Note: (ITEM 17 NOT INCLUDED)(NOT SHOWN)

$

$

Not available

22

Ariens T815-146C

LH DRUM ASM 180MM 4 ON 4" BC

Note: (ITEM 17 NOT INCLUDED)

$

$

Not available
