996125 (420 RT) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Rear Brake System Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

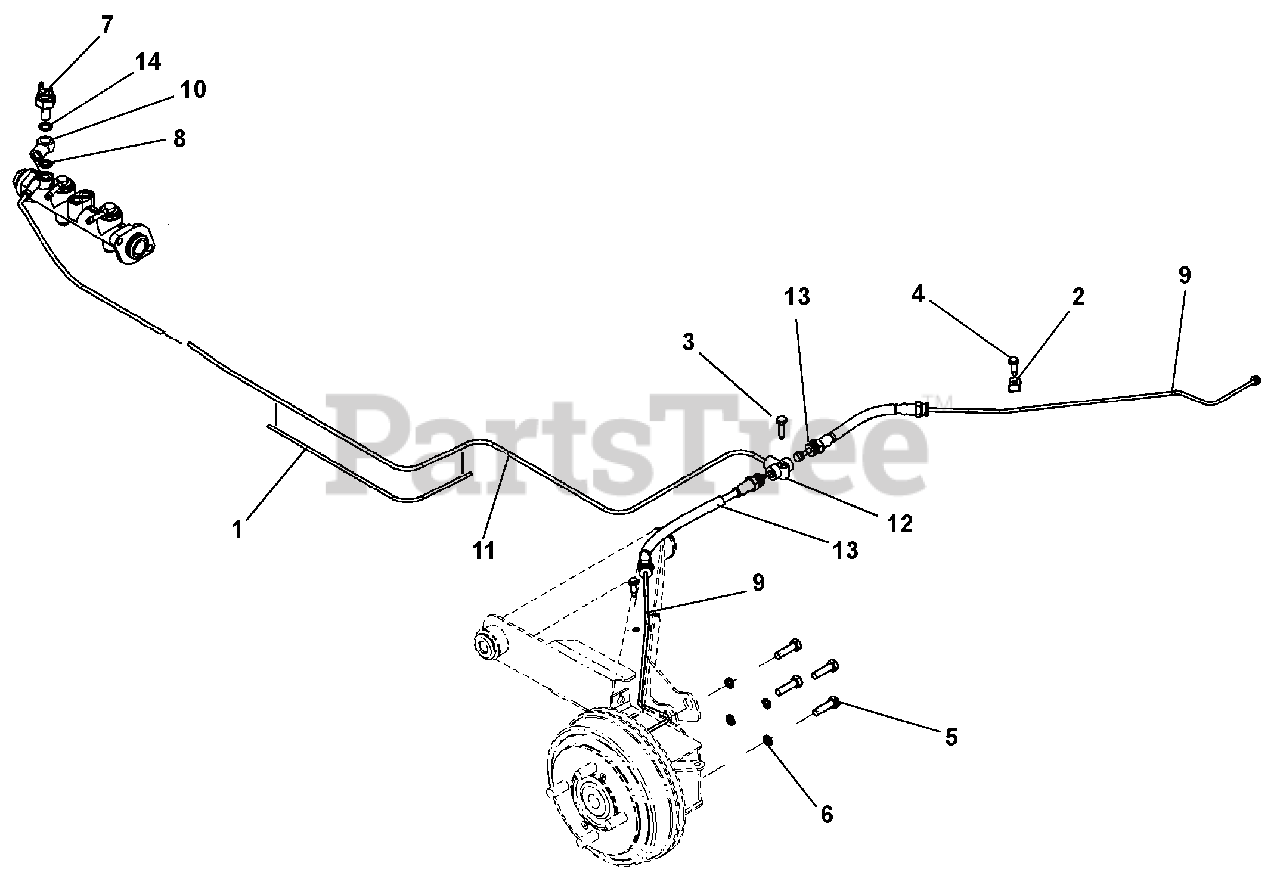

Rear Brake System Parts Diagram

  • Title

1

Gravely T990-244R

CORRUGATED LOOM, .125 ID

$

$

Not available

2

Gravely T800-347C

WIRING/TUBE CLIP FOR 1/4 OD

$

$

Not available

3

Gravely 07430102

SCREW HHC SELF TAP 1/4-20 X 1

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 06120224

HH DRILL SCREW 1/4 X 3/4 LG

$

$

Not available

5

Gravely T802-731C

HHCS M8X1.25 X 30 GR10.9 ZNYCR

$

$

Not available

6

Gravely 06318200

WASHER LOCK M8 YWZC

$0.99

$

Usually ships in 4-12 days

0

7

Gravely 04104600

BRAKE SWITCH, HIGH PRESSURE

$56.99

$

Usually ships in 4-12 days

0

8

Gravely 04096302

WASHER, COPPER, 3.5 MM

$

$

Not available

9

Gravely T815-165C

REAR BRAKE LINE 28.3

$

$

Not available

10

Gravely T815-167C

BULK HEAD FLOW THROUGH

$

$

Not available

11

Gravely T815-175C

ST STEEL BRAKE LINE

$

$

Not available

12

Gravely T815-178C

FITTING 3 WAY HYD.

$

$

Not available

13

Gravely T815-211C

REAR RUBBER BRAKE LINE

$

$

Not available

14

Gravely T815-158C

MSTR CYL CPPR WSHR 16 X 10 X 1.5 MM

$

$

Not available
