996125 (420 RT) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Parking Brake Caliper Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

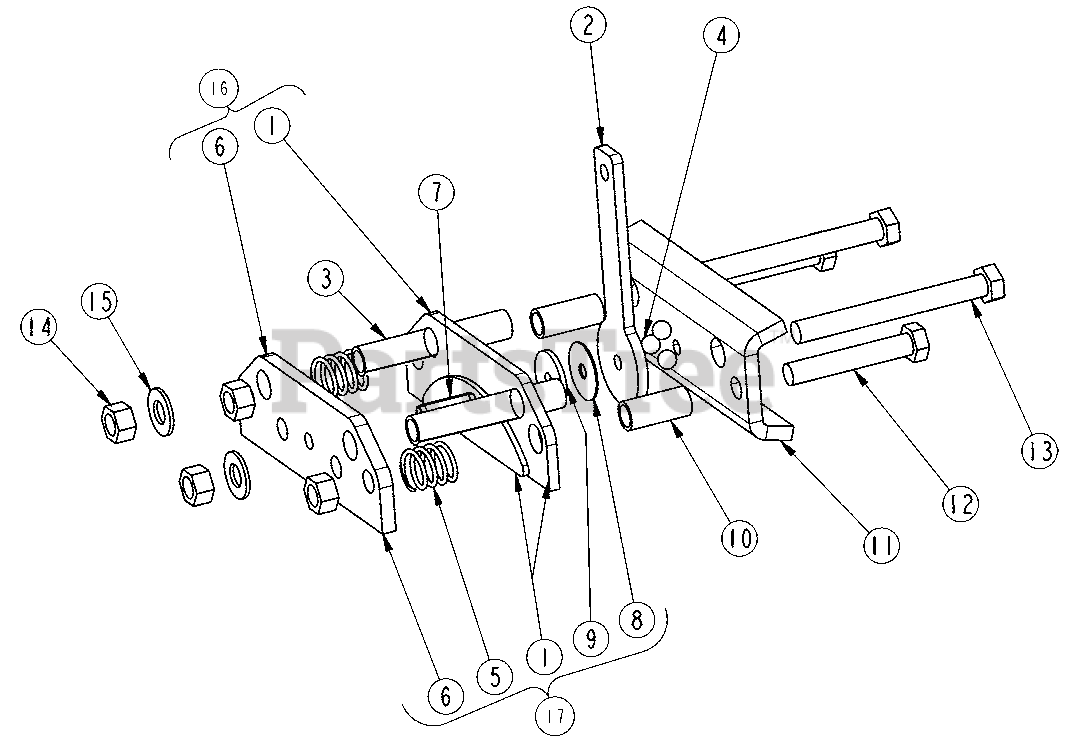

Parking Brake Caliper Parts Diagram

  • Title

--

Gravely T840-312C

BRAKE CALIPER

$

$

Not available

1

82775

STATOR ASSEMBLY

$

$

Not available

2

82779

LEVER

$

$

Not available

3

82781

SLEEVE

$

$

Not available

4

82785

STEEL BALL

$

$

Not available

5

82788

COMPRESSION SPRING

$

$

Not available

6

82960

STATOR ASSEMBLY

$

$

Not available

7

82967

SPRING PIN SLOTTED

$

$

Not available

8

82968

SHIM

$

$

Not available

9

83113

THRUST WASHER

$

$

Not available

10

83465

SLEEVE

$

$

Not available

11

85578

STATIONARY ACTUATOR

$

$

Not available

12

Gravely 05962900

BOLT, HEX 3/8-16 X 2 1/4 GR5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

13

Gravely T802-781C

HHCS 3/8-16 X 3 1/2 GR8 PLT

$

$

Not available

14

Gravely T803-123C

NUT HEX TOP LOCK 3/8-16 PLT

$

$

Not available

15

Gravely 06400216

WASHER FLAT 3/8 SAE PLT

$

$

Not available

16

Gravely PK-1660

BRAKE PAD REPLACEMENT KIT (Includes 1 and 6)

Note: (Includes 1 and 6)

$67.99

$

In Stock, only 1 left!

0

17

PK-1584

CALIPER REPAIR KIT (Includes 1, 5, 6, 8 and 9)

Note: (Includes 1, 5, 6, 8 and 9)

$

$

Not available
