996125 (420 RT) - Gravely Treker Utility Vehicle, 4x2, Red, Subaru (SN: 000101 - 019999) Front Brake Disc Parts Diagram

Treker Utility Vehicle, 4x2, Red, Subaru

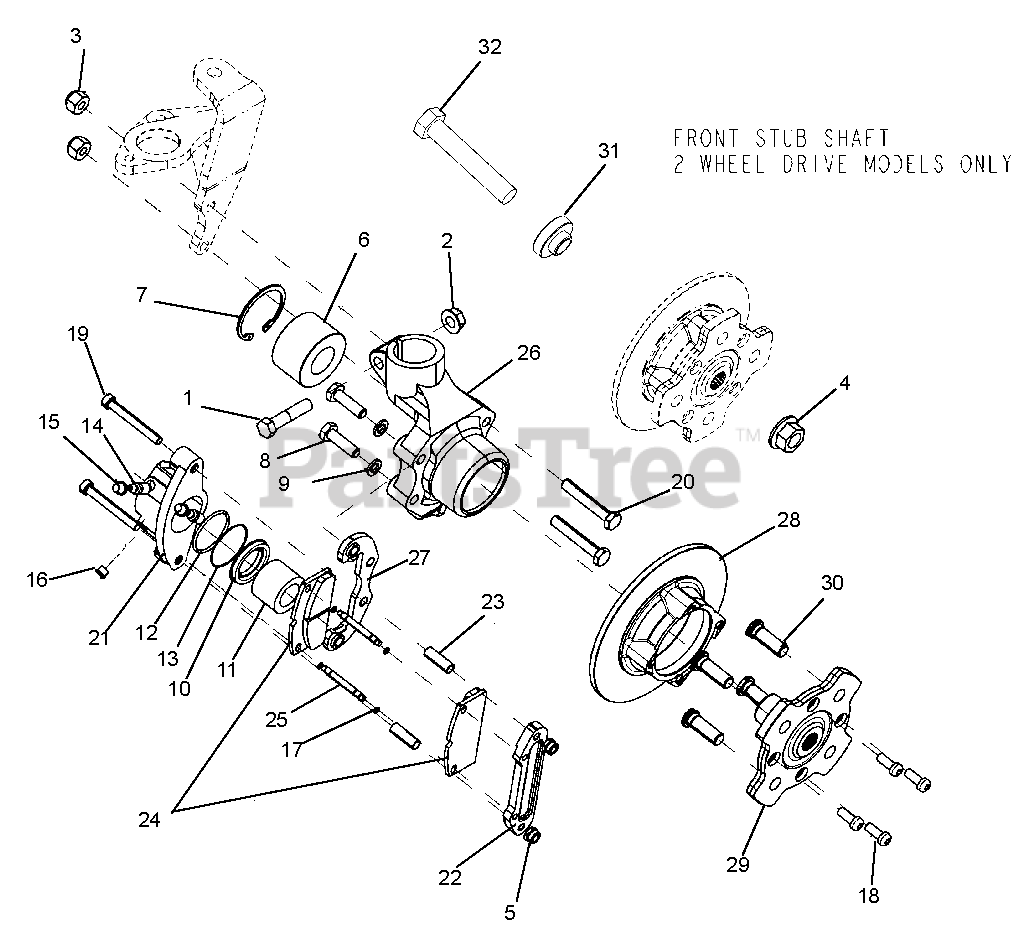

Front Brake Disc Parts Diagram

  • Title

--

Gravely T815-143C

RIGHT HAND DISC BRAKE ASM 172m/JNT (Does Not Include #3, #4 or #5)

Note: (Does Not Include #3, #4 or #5)

$

$

Not available

--

Gravely T815-144C

LEFT HAND DISC BRAKE ASM 172mm WITH JNT (Does Not Include #3, #4 or #5)

Note: (Does Not Include #3, #4 or #5)

$

$

Not available

1

Gravely 05963100

BOLT, HEX .38-16 X 2.00 GR8 YWZC
(Superseded to 05901810)

$2.99

$

In Stock, only 1 left!

0

2

Gravely 06535800

NUT, LOCKING NYLON .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

3

Gravely T803-280C

NUT, HEX NYLOCK M10 X 1.5 PLT

$

$

Not available

4

Gravely T803-332C

NUT, HEX M16 X 1.5 TOP LOCK PLT

$

$

Not available

5

D2041

NUT, M8

$

$

Not available

6

F763

BALL BEARING 60,05 X 30 X 37

$

$

Not available

7

F765

SNAP RING

$

$

Not available

8

F772

SCREW, M 10 X 1.25 X 35

$

$

Not available

9

F773

M 10 WASHER

$

$

Not available

10

F824

DUST BOOT RING

$

$

Not available

11

F822

CAP

$

$

Not available

12

F823

SEALING RING

$

$

Not available

13

F820

RUBBER DUST BOOT

$

$

Not available

14

F827

BLEEDER SCREW

$

$

Not available

15

F828

BOOT

$

$

Not available

16

F829

PLUG

$

$

Not available

17

F832

ELASTIC RING

$

$

Not available

18

F845

SCREW, M8 X 20

$

$

Not available

19

F774

SCREW, M8 X 65

$

$

Not available

20

F799

HHS M10 X 1.5 X 50 PLT

$

$

Not available

21

F813

CALIPER BODY

$

$

Not available

22

F815

REACTION BRACKET

$

$

Not available

23

F818

SPACER

$

$

Not available

24

F1004

BRAKE PAD KIT (COMP. 2 WHEELS)

Note: (COMP. 2 WHEELS)

$

$

Not available

25

F826

PIN

$

$

Not available

26

F840

WHEEL PIVOT Rev. 2

$

$

Not available

27

F834

CALIPER CLAMPING PLATE

$

$

Not available

28

F843

DISC BRAKE

$

$

Not available

29

F181

CMEX FLANGE WITH STUDS

$

$

Not available

30

F909

STUD

$

$

Not available

31

Gravely 03959651

SPACER, STUB BOLT

$

$

Not available

32

Gravely 05984400

BOLT, HEX M16-1.5 X 90 X 8.8 YWZC

$

$

Not available
