996124 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Transaxle Rear Components Parts Diagram

Treker Utility Vehicle, 4x2, Red

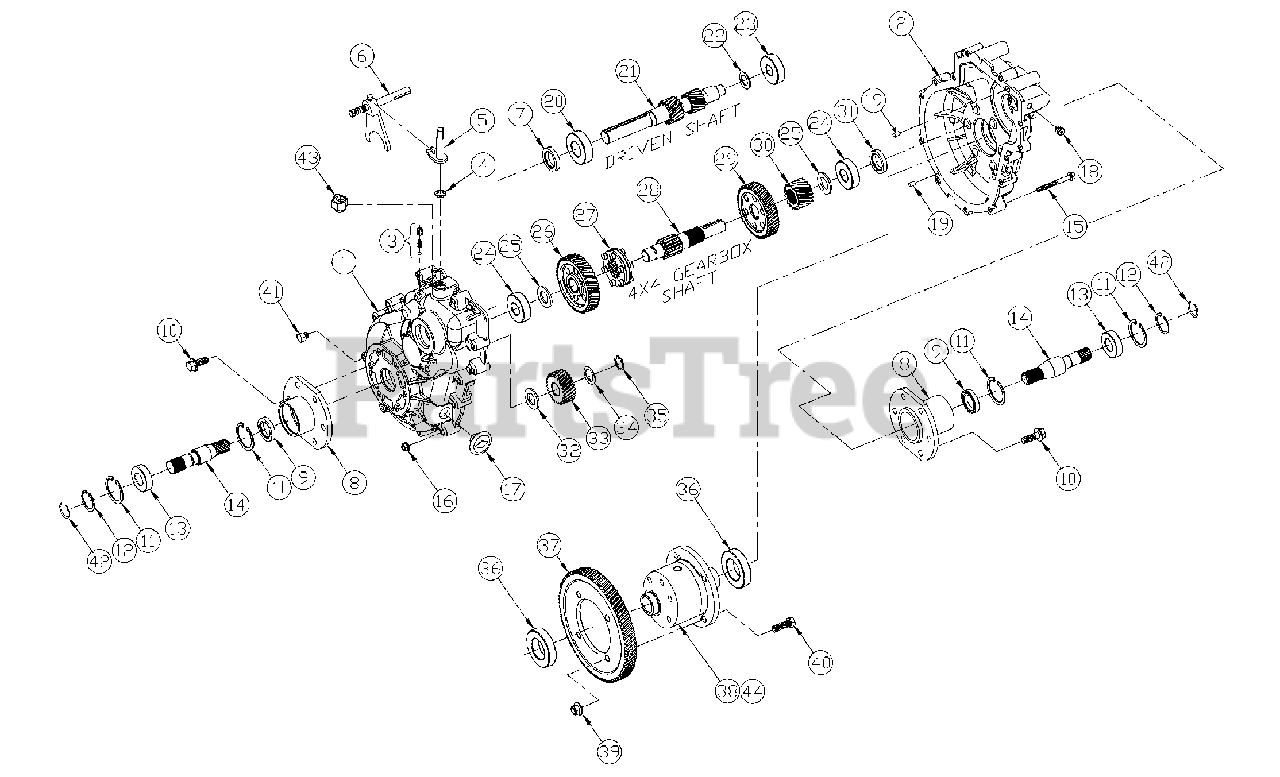

Transaxle Rear Components Parts Diagram

  • Title

Gravely 826-454C

TRANSAXLE W/ AUTO-LOCK DIFF.

$

$

Not available

1

012CH291-2X

DANA HOUSING AND SHAFT ASSBLY

$

$

Not available

2

012CH289

DANA HOUSING-AXLE FIN

$

$

Not available

3

012LK133

DANA KIT, DETENT

$

$

Not available

4

012HH122

DANA SEAL - OIL

$

$

Not available

5

012GV164-X

DANA ACTUATOR ASSY

$

$

Not available

6

012SV118-X

DANA SHIFT ROD SUB-ASSY

$

$

Not available

7

012HH128

DANA SEAL - OIL

$

$

Not available

8

012TA378

REAR TUBE ASSY

$

$

Not available

9

012HH107

SEAL - OIL

$

$

Not available

10

026HM107

DANA SCREW - FLG HEAD

$

$

Not available

11

840293

DANA RING, RETAINING

$

$

Not available

12

012HR133

RING - RETAINER

$

$

Not available

13

012HD106

BEARING - BALL SINGLE

$

$

Not available

14

012SR172

SHAFT - AXLE, FIN

$

$

Not available

15

012HM110-1

DANA SCREW - FLG HEAD

$

$

Not available

16

012HN120

DANA NUT - LOCK

$

$

Not available

17

41356

DANA PLUG - RUBBER

$

$

Not available

18

012HN140

DANA VENT PLUG

$

$

Not available

19

012HP120

DANA PIN - DOWEL

$

$

Not available

20

585965

DANA BEARING 6205

$

$

Not available

21

012GS307

DANA SHAFT - INPUT FIN

$

$

Not available

22

012LK134

DANA KIT, SHIM

$

$

Not available

23

012HD111

DANA BEARING -6303 BALL SINGLE

$

$

Not available

24

012HD129

DANA BEARING -6204 BALL SINGLE

$

$

Not available

25

012HS121

DANA SPACER - FLAT

$

$

Not available

26

012GS202-X

DANA GEAR ASSY - FORWARD

$

$

Not available

27

012GS302

DANA GEAR - CLUTCH

$

$

Not available

28

012GS337

DANA SHAFT - INTERMEDIATE FIN

$

$

Not available

29

012GS204-X

DANA GEAR ASSY - REVERSE

$

$

Not available

30

012GS215

DANA GEAR - HELICAL FIN

$

$

Not available

31

012HH140

DANA SEAL - OIL

$

$

Not available

32

012HS125

DANA WASHER - THRUST

$

$

Not available

33

012GS207-X

DANA GEAR ASSY - IDLER

$

$

Not available

34

012HS126

DANA WASHER - THRUST

$

$

Not available

35

012HR128

DANA RING - SNAP

$

$

Not available

36

585994

DANA BEARING 6007

$

$

Not available

37

012GS216

DANA GEAR - HELICAL FIN

$

$

Not available

38

826-458C

DIFFERENTIAL, AUTO-LOCK

$

$

Not available

39

012HN138

DANA NUT - LOCK

$

$

Not available

40

012HM129

DANA BOLT - HEX

$

$

Not available

41

012HG145

DANA DRAIN PLUG

$

$

Not available

42

012HR132

RETAINER - SHAFT, AXLE

$

$

Not available

43

5803

SWITCH, NEUTRAL, DANA GBOX Kit includes 1 ea. #38, 4 ea. #39 & 4 ea. #40

$

$

Not available

44

700-518A

AUTO-LOK KIT*

$

$

Not available
