996124 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Trailing Arm Parts Diagram

Treker Utility Vehicle, 4x2, Red

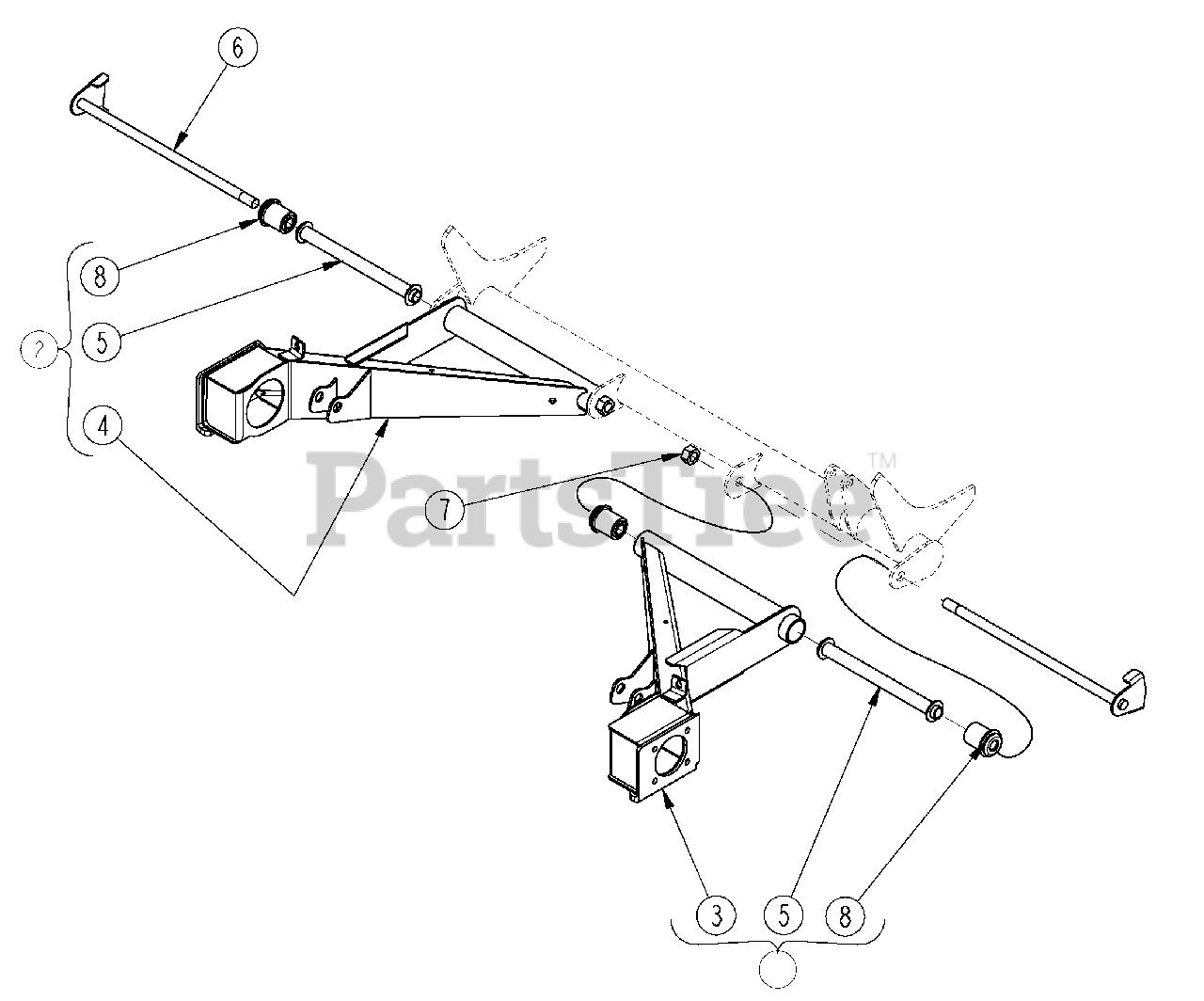

Trailing Arm Parts Diagram

  • Title
1

700-256S

TRAILING ARM RH ASSY

$

$

Not available

2

700-257S

TRAILING ARM LH ASSY

$

$

Not available

3

700-262H

TRAILING ARM RH WELDMENT

$

$

Not available

4

700-263H

TRAILING ARM LH WELDMENT

$

$

Not available

5

700-371H

CENTER PIVOT TUBE WELDMENT

$

$

Not available

6

700-422H

TRAILING ARM PIVOT BOLT WLDMNT

$

$

Not available

7

803-319C

NUT HEX TOP LOCK 9/16-12 YLW

$

$

Not available

8

817-517C

BUSHING IDLER ARM RUBBER

$

$

Not available
