996124 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Instrument Panel 4 x 4 Parts Diagram

Treker Utility Vehicle, 4x2, Red

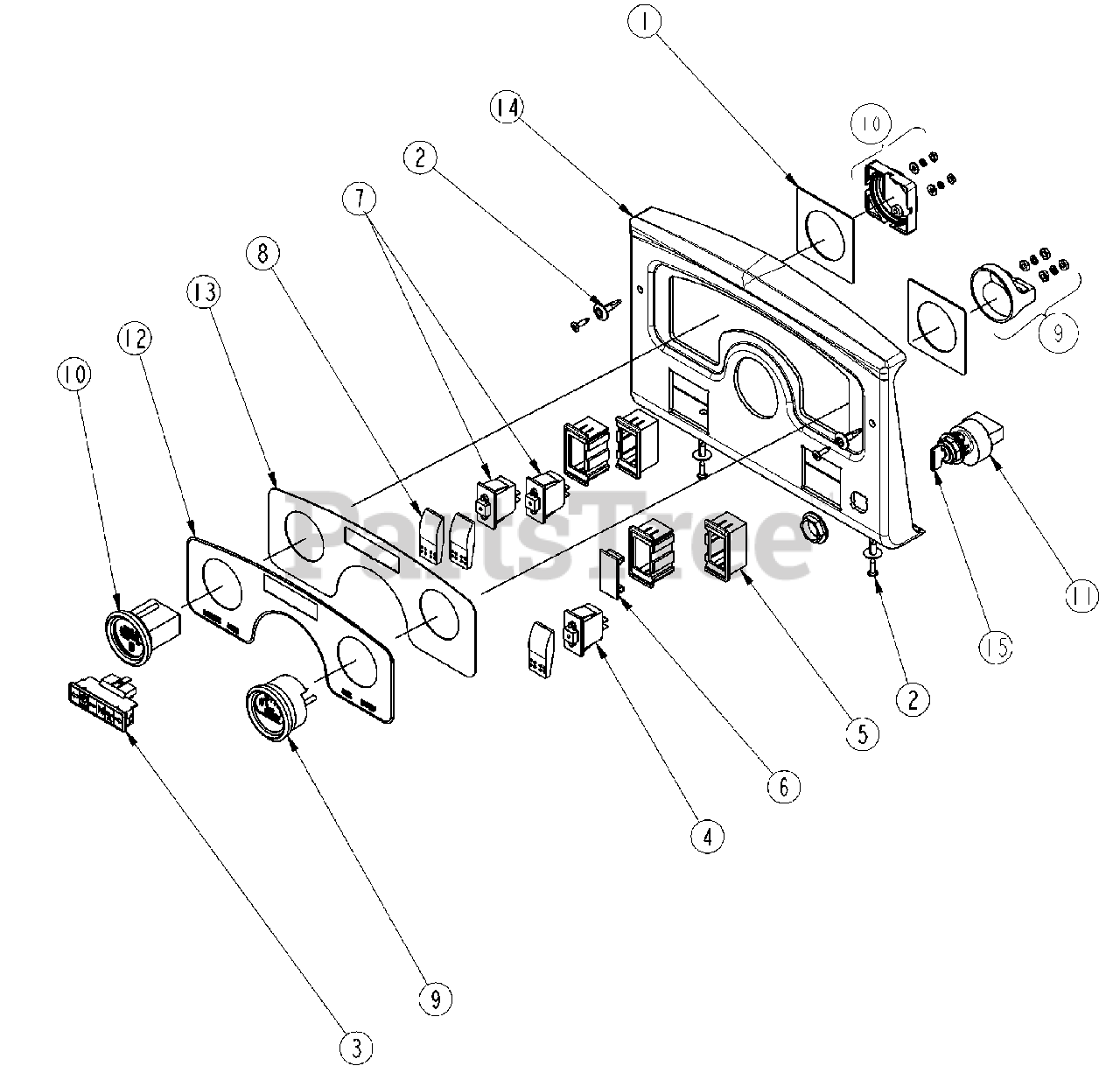

Instrument Panel 4 x 4 Parts Diagram

  • Title

1

700-211D

DASH BACKER PLATE

$

$

Not available

2

800-236C

RIVET, 1/4

$

$

Not available

3

833-020C

INDICATOR LIGHT STRIP 8-PIN Replacement Bulb 833-418c

$

$

Not available

4

833-254C

DUMP SWITCH WAYTEK 44304

$

$

Not available

5

833-267C

SWITCH MOUNT END

$

$

Not available

6

833-268C

PANEL PLUG

$

$

Not available

7

833-269C

SWITCH ROCKER SPST

$

$

Not available

8

833-271C

SWITCH ACTUATOR

$

$

Not available

9

Gravely 833-298C

GAUGE, VOLT METER

$

$

Not available

10

833-299C

GAUGE, HOUR METER

$

$

Not available

11

Gravely 833-336C

IGNITION SWITCH W/2 KEYS(6PIN)

Note: (6PIN)

$79.99

$

In Stock, only 1 left!

0

12

838-633C

DECAL INSTR. PANEL TRUCK 4X4

$

$

Not available

13

840-160C

INSTRUMENT PANEL

$

$

Not available

14

840-248C

DASH TRUCK

$

$

Not available

15

833-342C

KEY W/SHIELD (RP FOR 833-336C)

Note: (RP FOR 833-336C)

$

$

Not available
