996124 (420 R) - Gravely Treker Utility Vehicle, 4x2, Red (SN: 000101 - 019999) Hood Assembly Components Parts Diagram

Treker Utility Vehicle, 4x2, Red

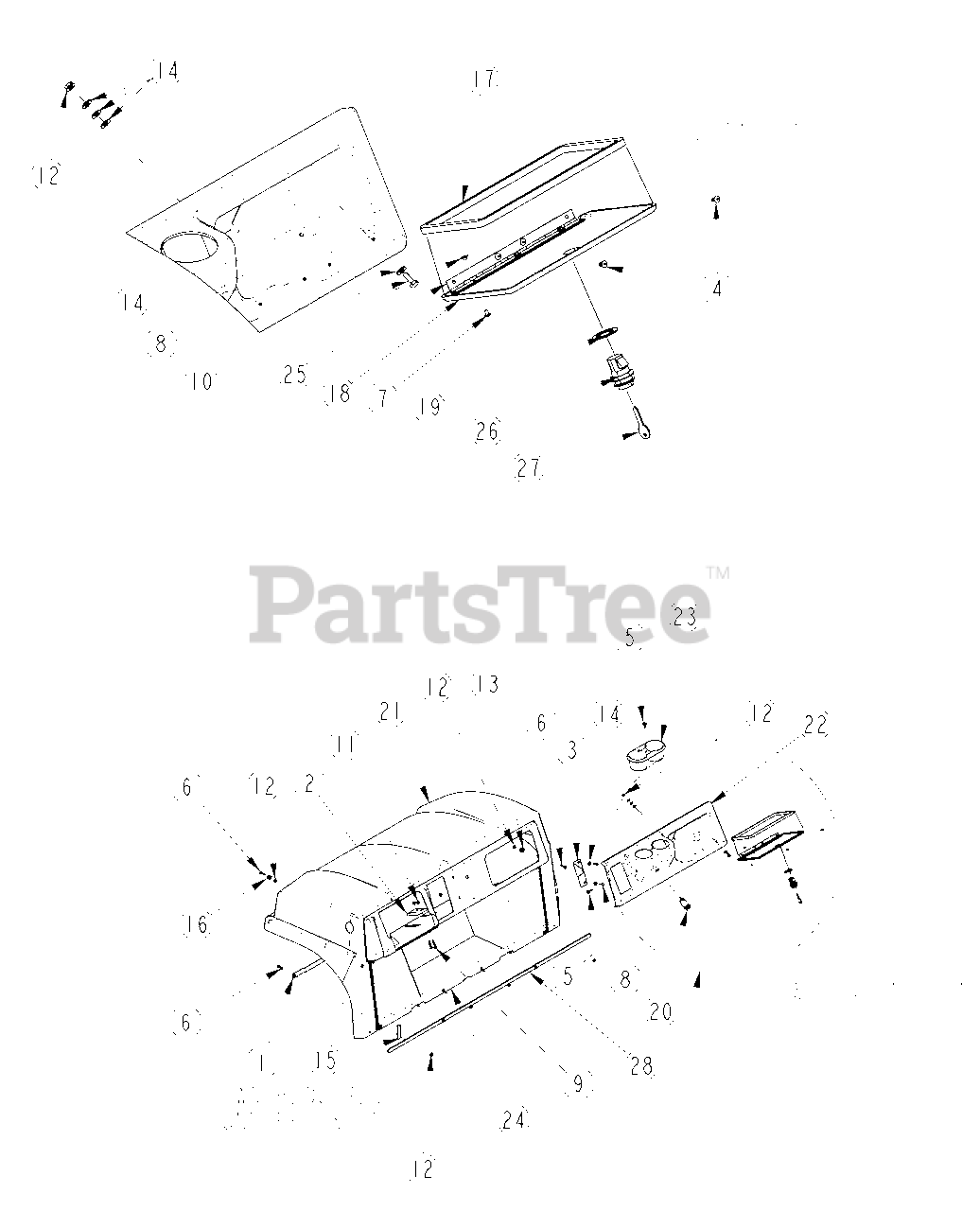

Hood Assembly Components Parts Diagram

  • Title

1

700-233D

BACKING PLATE FOR TRUCK BODY

$

$

Not available

2

700-255D

BODY MOUNT SPACER .375 THICK As Required

$

$

Not available

700-254D

BODY MOUNT SPACER .25 THICK As Required

$

$

Not available

3

700-442D

DASH MOUNT PLATE

$

$

Not available

4

800-219C

RIVET POP 3/16 .126-.250

$

$

Not available

5

800-236C

RIVET, 1/4 REMOVEABLE

$

$

Not available

6

801-181C

TPHMS Y 1/4-20X1 YELLOW DIE

$

$

Not available

7

801-200C

PHMS #8-32 X 1/4, SS BLACK

$

$

Not available

8

802-004C

HHCS 1/4-20X3/4 GR5

$

$

Not available

9

802-010C

HHCS 5/16-18X1 1/4 GR5

$

$

Not available

10

803-129C

NUT, BINDER 8-32 X 1/8

$

$

Not available

11

Gravely 803-177C

NUT HEX FLG TOP LK 5/16-18 YLW

$

$

Not available

12

803-293C

NUT HEX FLNG T-LOCK 1/4-20 PLT

$

$

Not available

13

804-011C

WASHER FLAT 3/8 USS PLT

$

$

Not available

14

804-117C

WASHER FLAT 1/4 HARD ASTMF436

$

$

Not available

15

816-318C

TRIM, 1/8 RUBBER EDGE (PER FT)

Note: (PER FT)

$

$

Not available

16

816-433C

RUBBER GROMMET .75DX.31IDX.37T

$

$

Not available

17

816-494C

SEAL, GLOVE BOX DOOR

$

$

Not available

18

817-628C

DOOR, TRUCK GLOVE BOX

$

$

Not available

19

817-661C

WASHER, 1 1/2 X 1 X .08 THICK

$

$

Not available

20

833-322C

POWER PLUG OUTLET 12V

$

$

Not available

21

700-178A

SERV - ST 4X2 BODY-RED W/DECAL

$

$

Not available

700-181A

SERV - ST 4X2 BODY-CAMO/DECALS

$

$

Not available

700-186A

SERV - ST 4X4 BODY-RED W/DECAL

$

$

Not available

700-189A

SERV - ST 4X4 BODY-CAMO/DECALS

$

$

Not available

22

700-324A

10 SERIES DASH W/DECALS

$

$

Not available

23

840-275C

CUP HOLDER INSERT

$

$

Not available

24

700-319A

4210ST FOOTWELL W/ DECALS

$

$

Not available

700-320A

4410ST FOOTWELL W/ DECALS

$

$

Not available

25

840-294C

HINGE, 1.25 X 10 CONTINOUS

$

$

Not available

26

840-306C

LATCH, LOCKABLE TWIST

$

$

Not available

840-295C

RPBY 840-306C & 817-661C

$

$

Not available

27

840-307C

KEY GLOVE BOX DOOR- TWIST LOCK

$

$

Not available

840-299C

KEY, GLOVE BOX DOOR- PUSH LOCK

$

$

Not available

28

990-227R

FOAM RUBBER 3/16X3/4 THK W/PSA 52.5" Lg.

$

$

Not available
